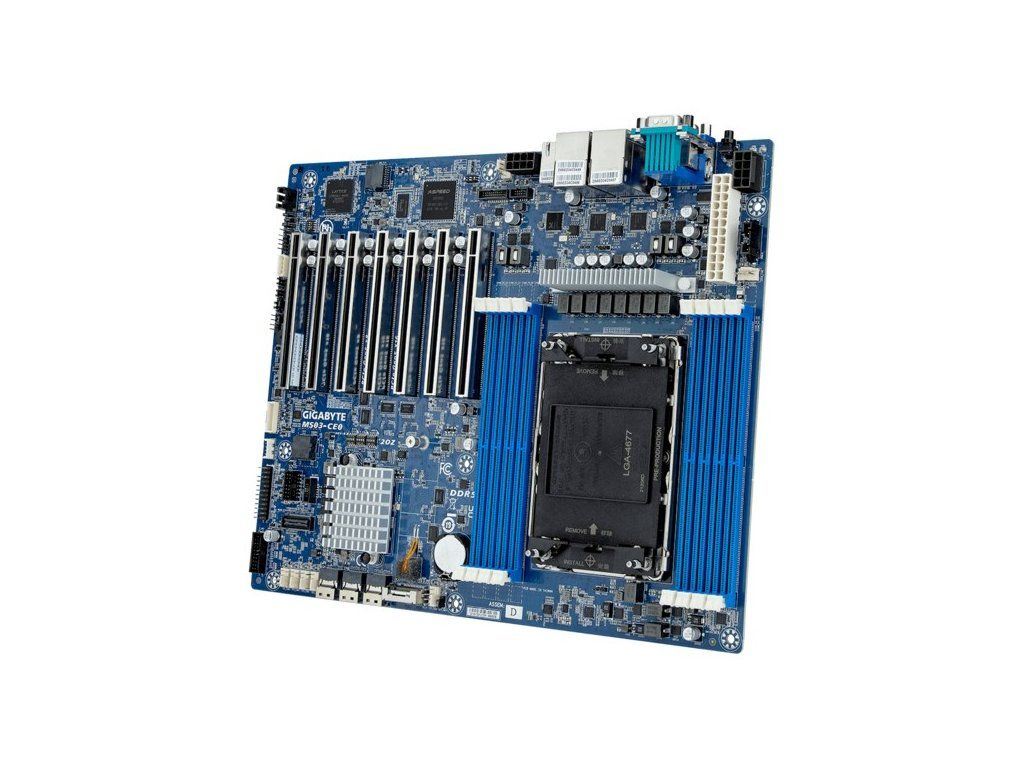

Motherboard - Gigabyte MS03-CE0 1x LGA4677 Intel Xeon Max Intel Xeon Scalable Gen 4/5 Intel C741
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 1.69 kg |
| EAN: | 4719331849597 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 4677 (Socket E) |
| Compatible processor series: | Intel® Xeon® |
| On-board graphics card model: | Aspeed AST2600 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Motherboard chipset: | Intel C741 |
| Component for: | Server |
| Compatible operating systems: | Windows Server 2022 (x64) |
| Memory channels: | Hexa-channel |
| Maximum RDIMM memory: | 96 GB |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 8 |
| Memory slots type: | DIMM |
| Maximum internal memory: | 256 GB |
| Supported memory clock speeds: | 5600, 4800 MHz |
| Storage temperature (T-T): | 10 - 40 °C |
| Operating temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 8 - 80% |
| Storage relative humidity (H-H): | 20 - 95% |
| Depth: | 244 mm |
| Width: | 304.8 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Intel® I210-AT |
| Front panel connector: | Yes |
| TPM connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of CPU fan connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| Package depth: | 330 mm |
| Package width: | 360 mm |
| Package height: | 80 mm |
| Cables included: | SATA |
| Number of storage drives supported: | 12 |
| RAID levels: | 10, 5, 1, 0 |
| RAID support: | Yes |
| Supported storage drive interfaces: | SATA III |
| COM ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 2 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 5 |
| PCI Express x8 (Gen 5.x) slots: | 2 |
