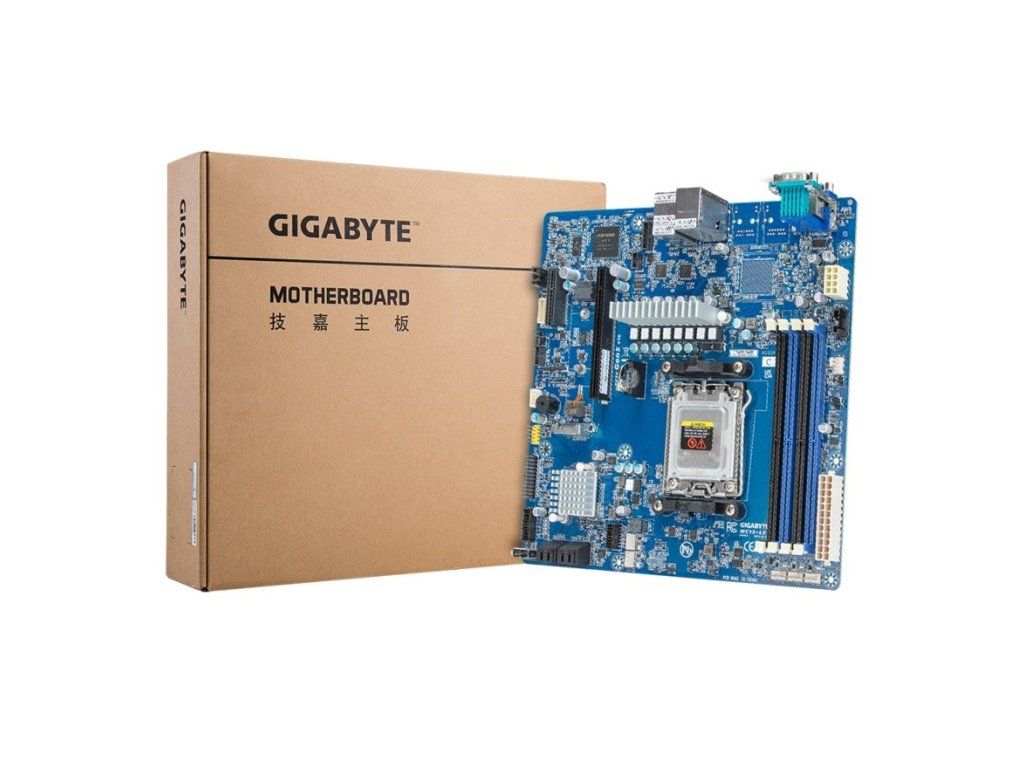

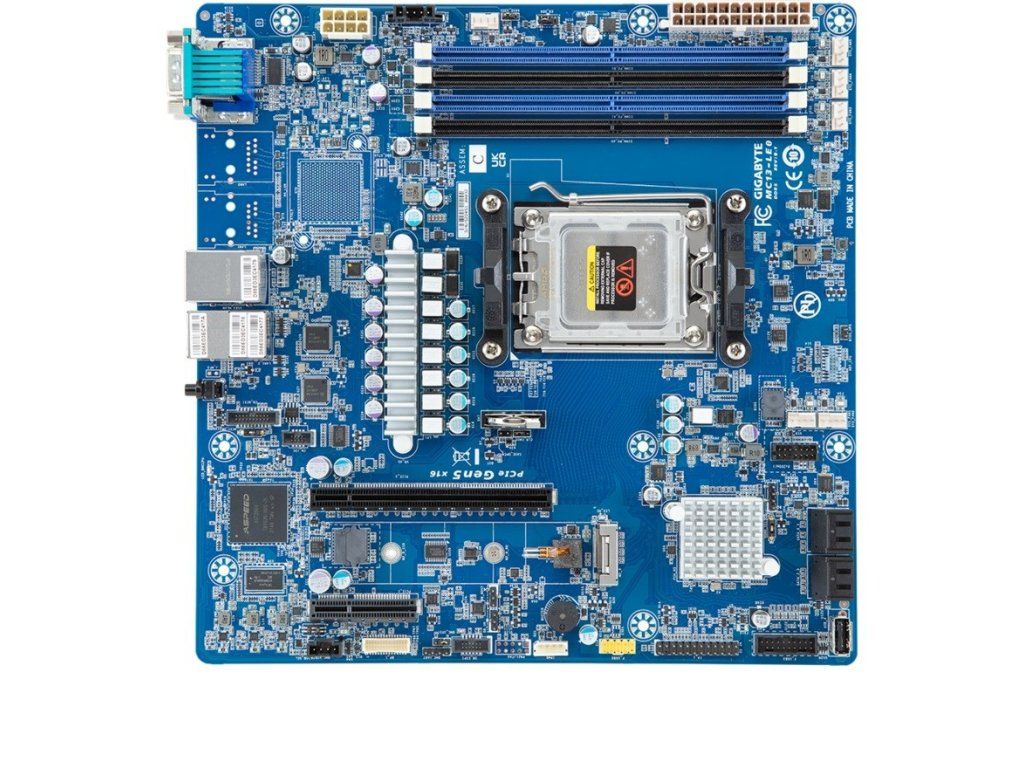

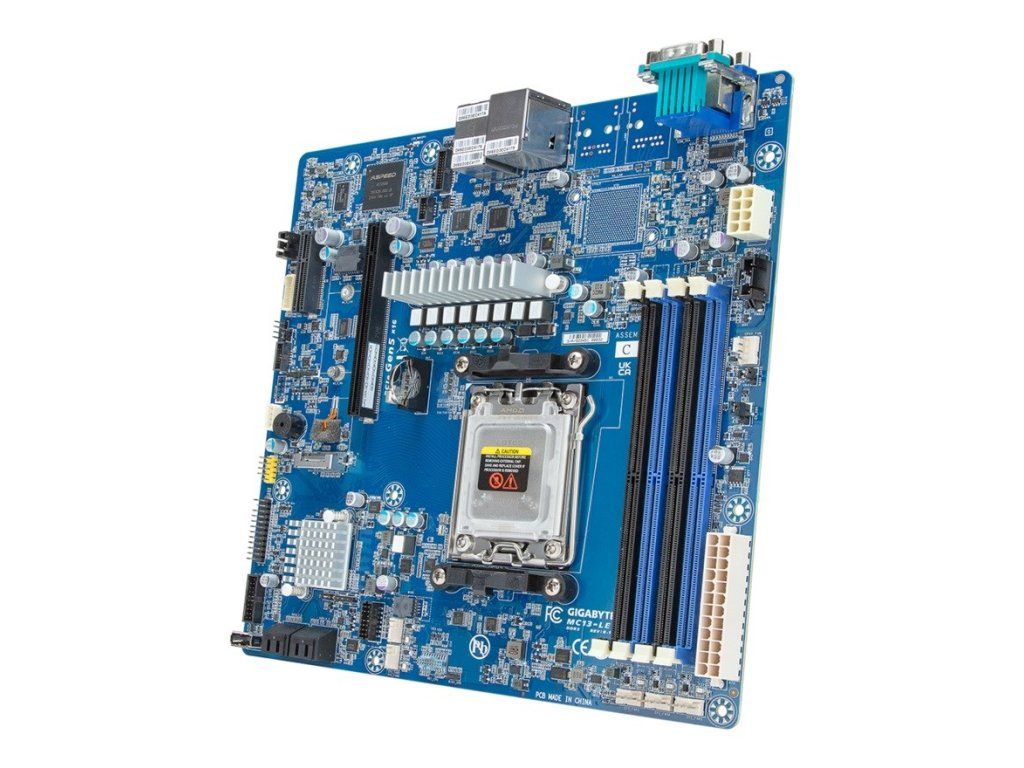

Motherboard - Gigabyte MC13-LE0 1x AM5 AMD Epyc 4004/Ryzen 7000/Ryzen 9000 B650E.
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AMD server motherboards |
|---|---|
| Greutate: | 1.145 kg |
| EAN: | 4719331849979 |
| Maximum number of SMP processors: | 1 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD EPYC 4004 Series |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Component for: | Server/workstation |
| Motherboard chipset: | AMD B650E |
| Product colour: | Blue |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 4400, 5200, 3600, 4000, 4800 |
| Depth: | 244 mm |
| Width: | 244 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 1 Gigabit Ethernet |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 5 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| 12V power connector: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Package width: | 321 mm |
| DFU / User manual: | Yes |
| Cables included: | SATA |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, 0, 10 |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, SATA III |
| COM ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| Port Management LAN: | Yes, 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Do not disassemble to avoid damage to internal components and loss of warranty. |
