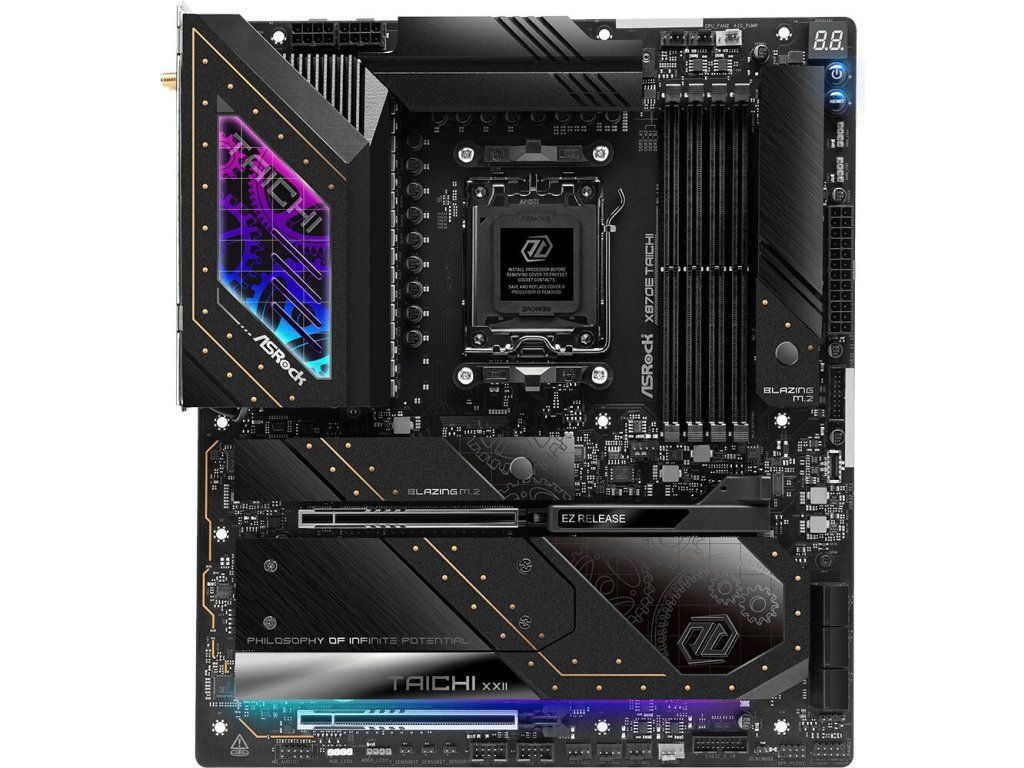

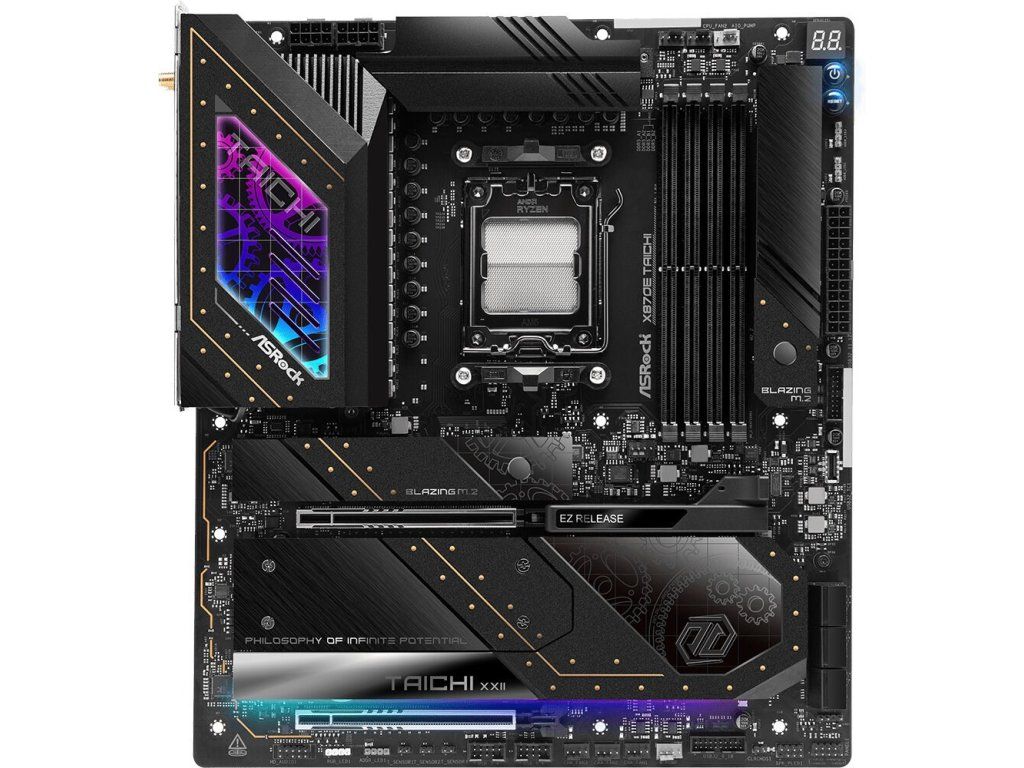

Motherboard - ASRock X870E Taichi
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 3.53 kg |
| EAN: | 4710483947421 |
| Maximum number of SMP processors: | 1 |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen™ 9000 Series, AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family: | AMD |
| Audio output channels: | 5.1 channels |
| Motherboard form factor: | Extended ATX |
| Audio chip: | Realtek ALC4082 |
| Motherboard chipset: | AMD X870E |
| Operating system architecture: | 64-bit |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8200+ MHz |
| Depth: | 267 mm |
| Width: | 305 mm |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Wi-Fi standards: | 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a |
| Bluetooth: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| LAN controller: | Realtek RTL8126 |
| Bluetooth version: | 5.4 |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Supported storage drive interfaces: | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Line-out: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Clear CMOS button: | Yes |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| S/PDIF out port: | Yes |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 2 |
| Number of Wi-Fi antenna ports: | 2 |
| Number of USB 2.0 Type-A ports: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 2 |
