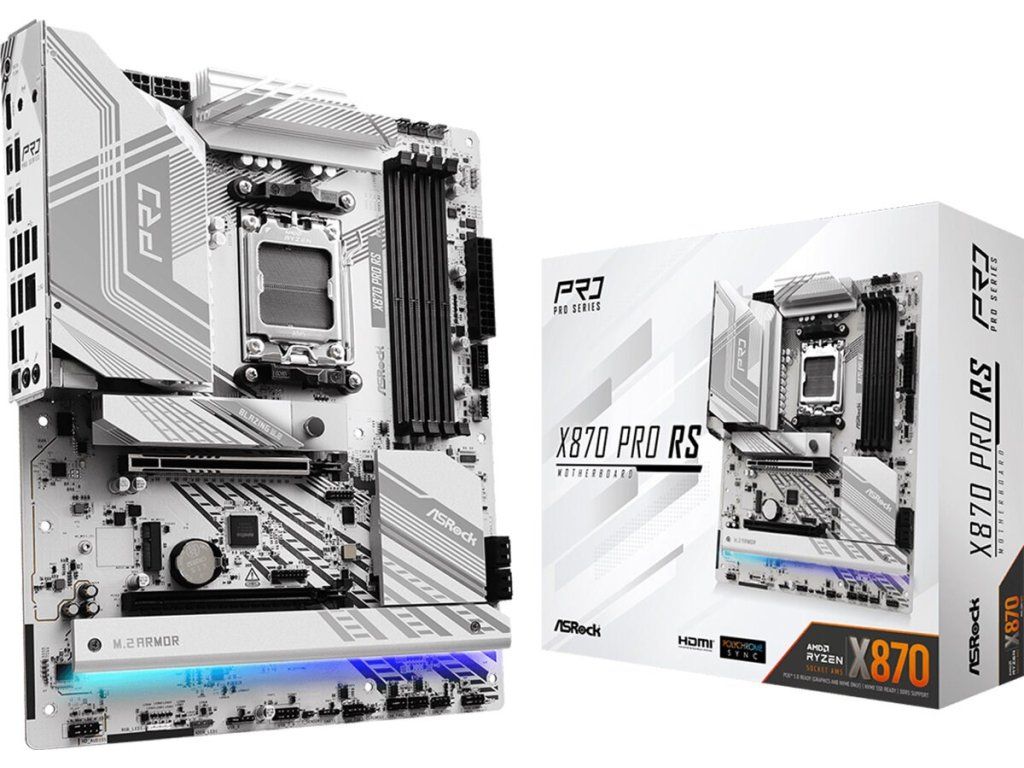

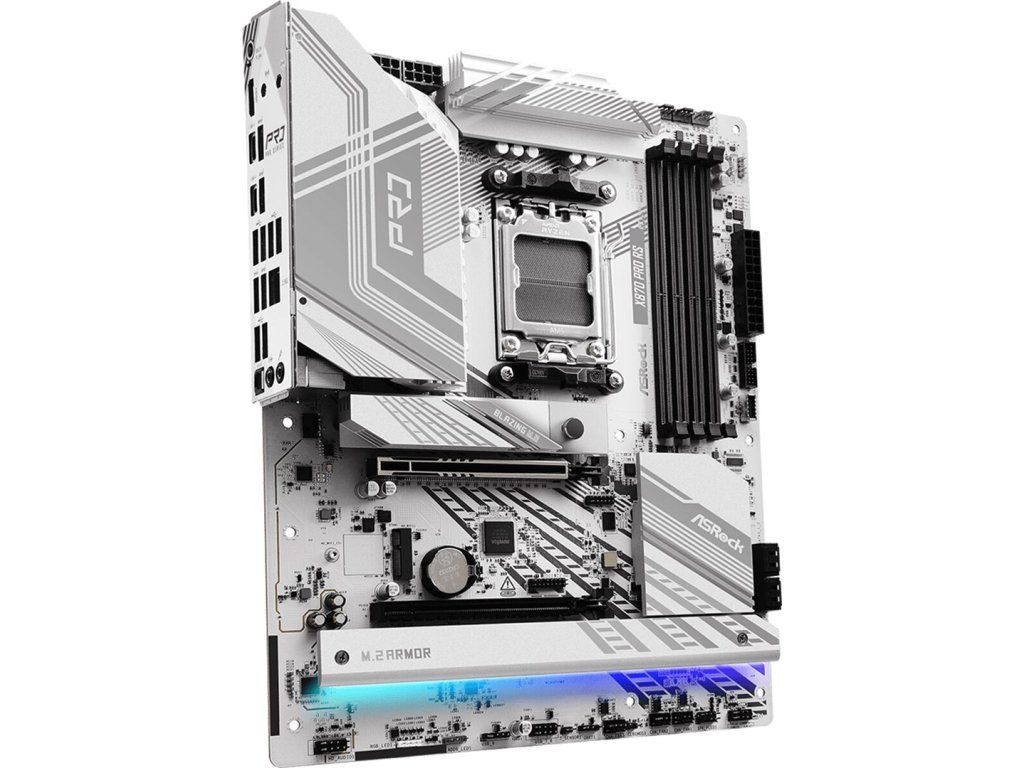

Motherboard - ASRock X870 Pro RS
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.99 kg |
| EAN: | 4710483949326 |
| Processor socket: | Socket AM5 |
| Maximum number of SMP processors: | 1 |
| Compatible processor series: | AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series, AMD Ryzen™ 9000 Series |
| Processor manufacturer: | AMD |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Audio chip: | Realtek ALC1220 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD X870 |
| Operating system architecture: | 64-bit |
| Supported memory clock speed (max): | 8000+ MHz |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Depth: | 244 mm |
| Width: | 305 mm |
| Bluetooth: | No |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| LAN controller: | Dragon RTL8125BG |
| USB 2.0 connectors: | 2, 6 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| RGB LED pin header: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| BIOS type: | UEFI AMI |
| Supported storage drive interfaces: | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |

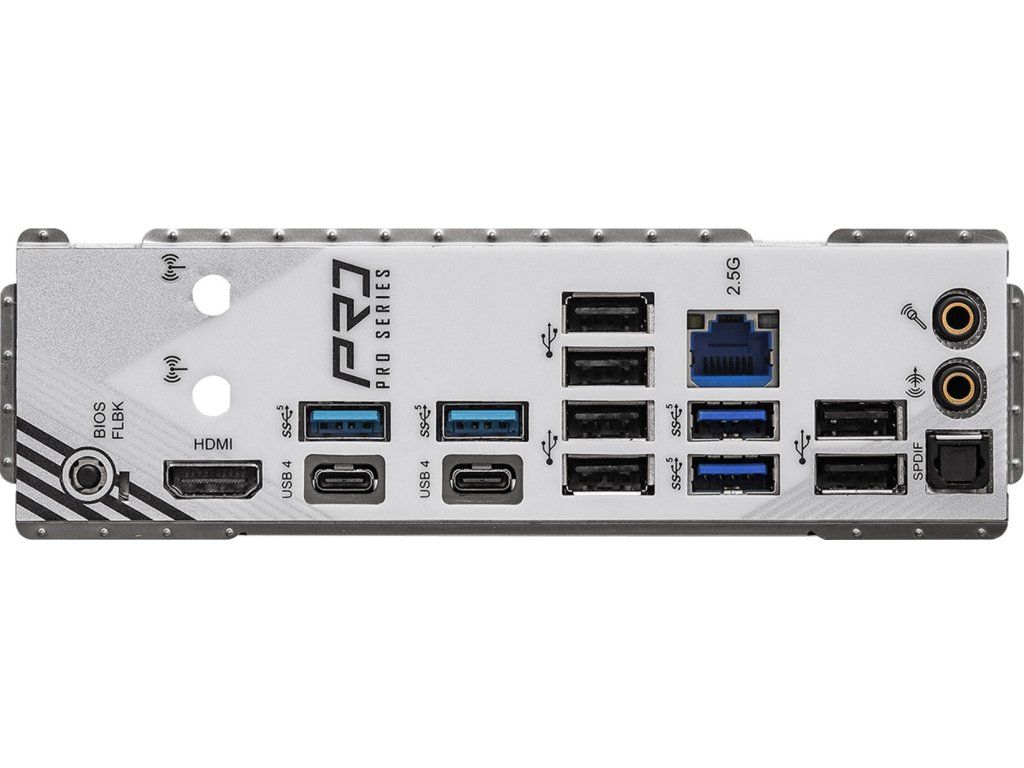

| USB 3.2 Gen 2x2 Type-C ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| S/PDIF out port: | Yes |
| Microphone in: | Yes |
| Line-out: | Yes |
| PCI Express x16 (Gen 5.x) slots: | 1 |
