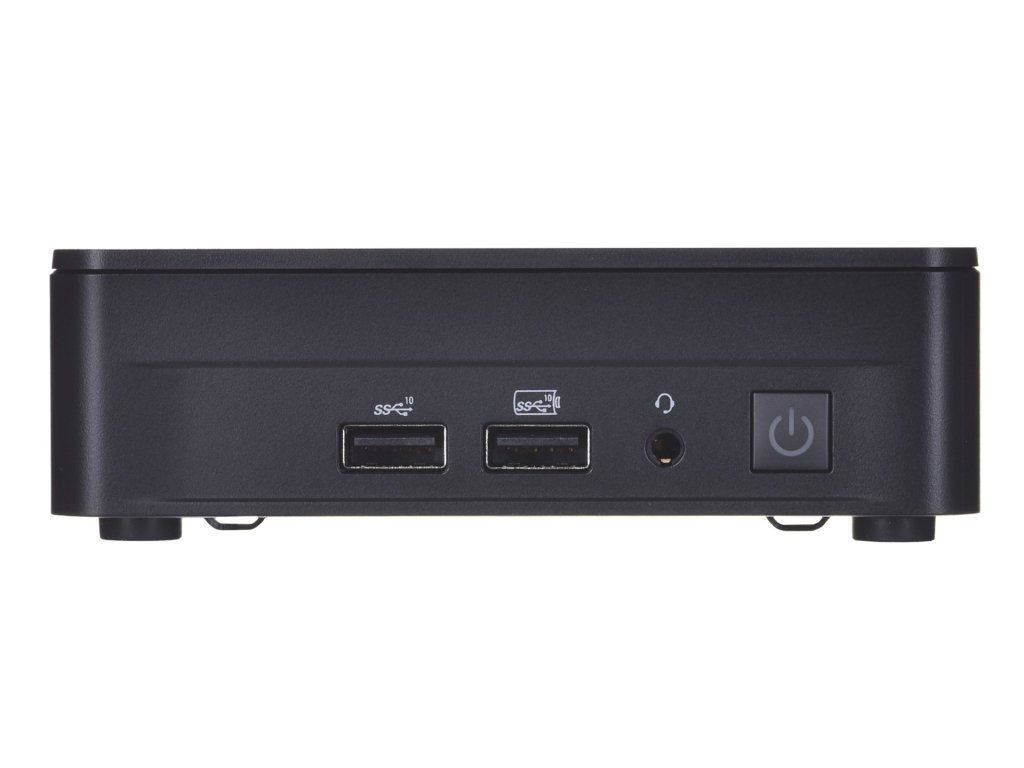

Mini PC ACTINA NUC i5-1340P/8GB/256SSD/W11Pro
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Professional computers |
|---|---|
| Greutate: | 0.15 kg |
| EAN: | 5901443332589 |
| Processor family: | Intel® Core™ i5 |
| Processor manufacturer: | Intel |
| Processor codename: | Raptor Lake |
| Processor cores: | 12 |
| Processor model: | i5-1340P |
| Processor cache: | 12 MB |
| Built-in processor: | Yes |
| Processor threads: | 16 |
| Processor generation: | 13th gen Intel® Core™ i5 |
| Efficient-core boost frequency: | 3.4 GHz |
| Performance cores: | 4 |
| Efficient cores: | 8 |
| Performance-core boost frequency: | 4.6 GHz |
| Processor boost frequency: | 4.6 GHz |
| CPU configuration (max): | 1 |
| On-board graphics card: | No |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel Iris Xe Graphics |
| Number of displays supported: | 4 |
| Maximum resolution: | 7680 x 4320 pixels |
| ECC: | No |
| Internal memory: | 8 GB |
| Number of DIMM slots: | 2 |
| Memory channels: | Dual-channel |
| Memory voltage: | 1.2 V |
| Memory layout (slots x size): | 1 x 8 GB |
| Number of memory slots: | 2 |
| Memory slots type: | SO-DIMM |
| Supported memory types: | DDR4-SDRAM |
| Maximum internal memory: | 64 GB |
| Non-ECC: | Yes |
| Supported memory clock speeds: | 3200 MHz |
| Cooling type: | Active |
| Product type: | Mini PC |
| Product codename: | Arena Canyon |
| On/off switch: | Yes |
| Product family: | Intel NUC |
| Chassis type: | Nettop |
| Product colour: | Black |
| LED indicators: | Yes |
| Power supply type: | External AC adapter |
| Width: | 117 mm |
| Depth: | 112 mm |
| Height: | 37 mm |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax) |
| WLAN controller model: | Intel Wi-Fi 6E AX211 |
| Bluetooth version: | 5.3 |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| LAN controller: | Intel I226-V |
| Bluetooth: | Yes |
| Operating system installed: | Windows 11 Pro |
| Motherboard form factor: | UCFF |
| Power cord included: | Yes |
| Number of M.2 (M) slots: | 1 |
| PCI Express slots version: | 4.0 |
| Intel Trusted Execution Technology: | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| Intel Virtualization Technology (VT-x): | Yes |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel® AES New Instructions (Intel® AES-NI): | Yes |
| Intel® Optane™ Memory Ready: | No |
| Intel Flex Memory Access: | Yes |
| Execute Disable Bit: | Yes |
| Intel® Platform Trust Technology (Intel® PTT): | Yes |
| Intel ME Firmware Version: | 16.1 |
| Intel® High Definition Audio (Intel® HD Audio): | Yes |
| Embedded options available: | No |
| Built-in speaker(s): | No |
| Number of storage drives supported: | 2 |
| Storage media: | SSD |
| Total storage capacity: | 256 GB |
| SSD form factor: | M.2 |
| Number of storage drives installed: | 1 |
| Storage drive interface: | PCI Express, Serial ATA |
| NVMe: | Yes |
| Storage drive sizes supported: | M.2 |
| Supported storage drive types: | SSD |
| Serial port via internal header: | No |
| HDMI version: | 2.1 |
| Combo headphone/mic port: | Yes |
| Number of SATA III connectors: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB ports quantity: | 4 |
| M.2 card slot (wireless): | 2230 (E-key) (E) |
| M.2 card slot (storage): | 2280 NVMe (M); 2242 SATA (B) |
| Thunderbolt 4 ports quantity: | 2 |
| DC-in jack: | Yes |
| DC input voltage: | 12 - 20 V |
| Additional headers: | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
