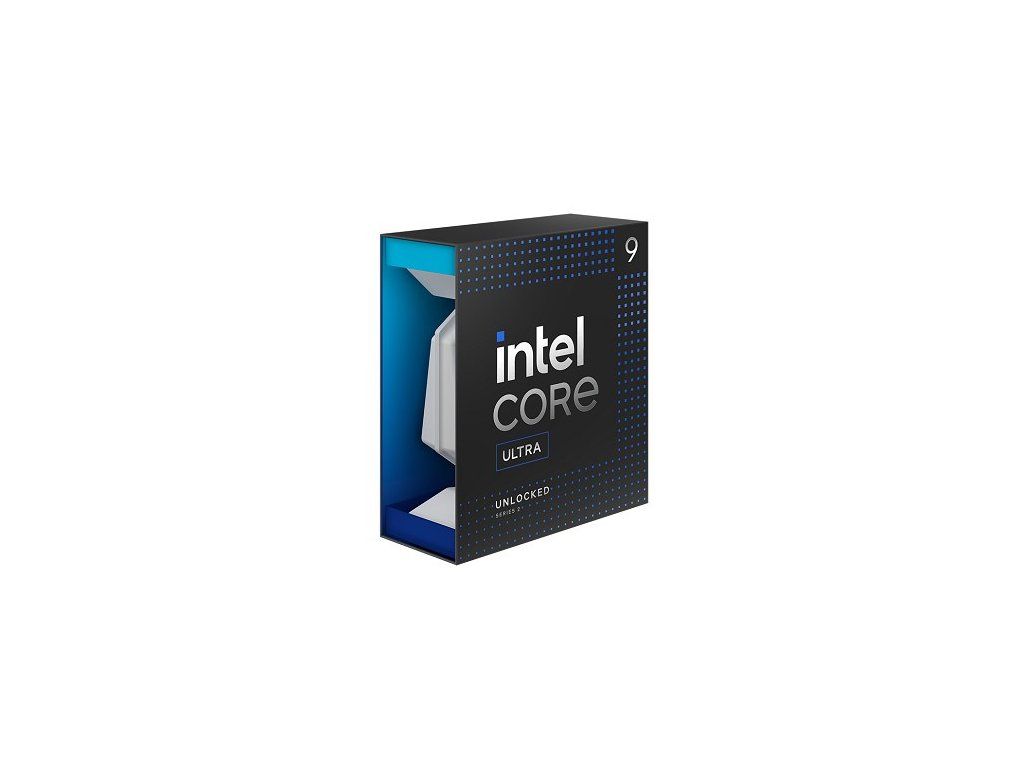

Intel Core Ultra 9 285 processor 36 MB Smart Cache Box
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Intel Core i9 processors |
|---|---|
| Greutate: | 0.7 kg |
| EAN: | 5032037282390 |
| Status: | Launched |
| OpenCL version: | 3.0 |
| Launch date: | Q1'25 |
| Maximum turbo power: | 182 W |
| Maximum number of DMI lanes: | 8 |
| Box: | Yes |
| Efficient cores: | 16 |
| Performance-core boost frequency: | 5.4 GHz |
| Processor ARK ID: | 241061 |
| AI software frameworks supported by CPU: | Windows ML, DirectML, ONNX RT, OpenVINO, WebNN |
| Performance cores: | 8 |
| Performance-core base frequency: | 2.5 GHz |
| Processor base power: | 65 W |
| Processor generation: | Intel Core Ultra (Series 2) |
| Processor cache type: | Smart Cache |
| Processor operating modes: | 64-bit |
| Processor socket: | FCLGA1851 |
| Processor cache: | 36 MB |
| Processor family: | Intel Core Ultra 9 |
| Processor threads: | 24 |
| Processor model: | 285 |
| Processor manufacturer: | Intel |
| Processor cores: | 24 |
| Processor codename: | Arrow Lake |
| On-board graphics card refresh rate at maximum resolution (DisplayPort): | 60 Hz |
| Discrete graphics card: | No |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI): | 60 Hz |
| On-board graphics card OpenGL version: | 4.5 |
| On-board graphics card ID: | 0x7D67 |
| Xe-cores: | 4 |
| On-board graphics card outputs supported: | DisplayPort 2.1, HDMI 2.1, Embedded DisplayPort (eDP) 1.4b |
| On-board graphics card dynamic frequency (max): | 2000 MHz |
| Number of displays supported (on-board graphics): | 4 |
| On-board graphics card base frequency: | 300 MHz |
| Discrete graphics card model: | Not available |
| On-board graphics card DirectX version: | 12.0 |
| On-board graphics card: | Yes |
| On-board graphics card model: | Intel® Graphics |
| Supported instruction sets: | AVX 2.0, SSE4.2, SSE4.1 |
| Direct Media Interface (DMI) Revision: | 4.0 |
| Market segment: | Desktop |
| Execute Disable Bit: | Yes |
| Scalability: | 1S |
| Use conditions: | PC/Client/Tablet, Workstation |
| Idle States: | Yes |
| PCI Express slots version: | 4.0, 5.0 |
| Maximum number of PCI Express lanes: | 24 |
| Embedded options available: | Yes |
| Thermal Monitoring Technologies: | Yes |
| Maximum internal memory supported by processor: | 192 GB |
| Memory types supported by processor: | DDR5-SDRAM |
| Memory clock speeds supported by processor: | 6400 MHz |
| ECC: | Yes |
| Memory channels: | Dual-channel |
| Intel® Thermal Velocity Boost Frequency: | 5.6 GHz |
| Intel® Virtualization Technology with Redirect Protection (VT-rp): | Yes |
| Intel® Speed Shift Technology: | Yes |
| Intel® Thunderbolt 4: | Yes |
| Mode-based Execute Control (MBE): | Yes |
| Intel® Thermal Velocity Boost: | Yes |
| Intel vPro® Enterprise Platform Eligibility: | Yes |
| Intel® Boot Guard: | Yes |
| Intel® Thread Director: | Yes |
| Intel® Active Management Technology (Intel® AMT): | Yes |
| Intel 64: | Yes |
| Intel® One-Click Recovery: | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU: | Yes |
| Intel® Threat Detection Technology (TDT): | Yes |
| Intel® Stable IT Platform Program (SIPP): | Yes |
| Intel Turbo Boost Max Technology 3.0: | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency: | 5.5 GHz |
| Intel® Volume Management Device (VMD): | Yes |
| Intel® Standard Manageability (ISM): | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU: | Yes |
| Intel® Remote Platform Erase (RPE): | Yes |
| Intel® Hardware Shield Eligibility: | Yes |
| Intel® Total Memory Encryption - Multi Key: | Yes |
| Intel® Control-flow Enforcement Technology (CET): | Yes |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel® Secure Key: | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| Intel Virtualization Technology (VT-x): | Yes |
| Intel Trusted Execution Technology: | Yes |
| Intel® AES New Instructions (Intel® AES-NI): | Yes |
| Intel® OS Guard: | Yes |
| Intel® Turbo Boost Technology: | 2.0 |
| Enhanced Intel SpeedStep Technology: | Yes |
| Intel® Quick Sync Video Technology: | Yes |
| L2 cache: | 40960 KB |
| Graphics output: | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| Maximum internal memory: | 192 GB |
| Warnings: | Avoid contact with liquid., Protect against overheating., Do not install on a switched-on device. |
| GPU performance up to: | 8 TOPs |
| AI software frameworks supported by NPU: | WebNN, Windows ML, OpenVINO, ONNX RT, DirectML |
| Neural processor unit (NPU): | Intel AI Boost |
| Windows Studio effects support: | Yes |
| NPU performance up to: | 13 TOPs |
| Total processor performance up to: | 36 TOPs |
| Sparsity support: | Yes |
