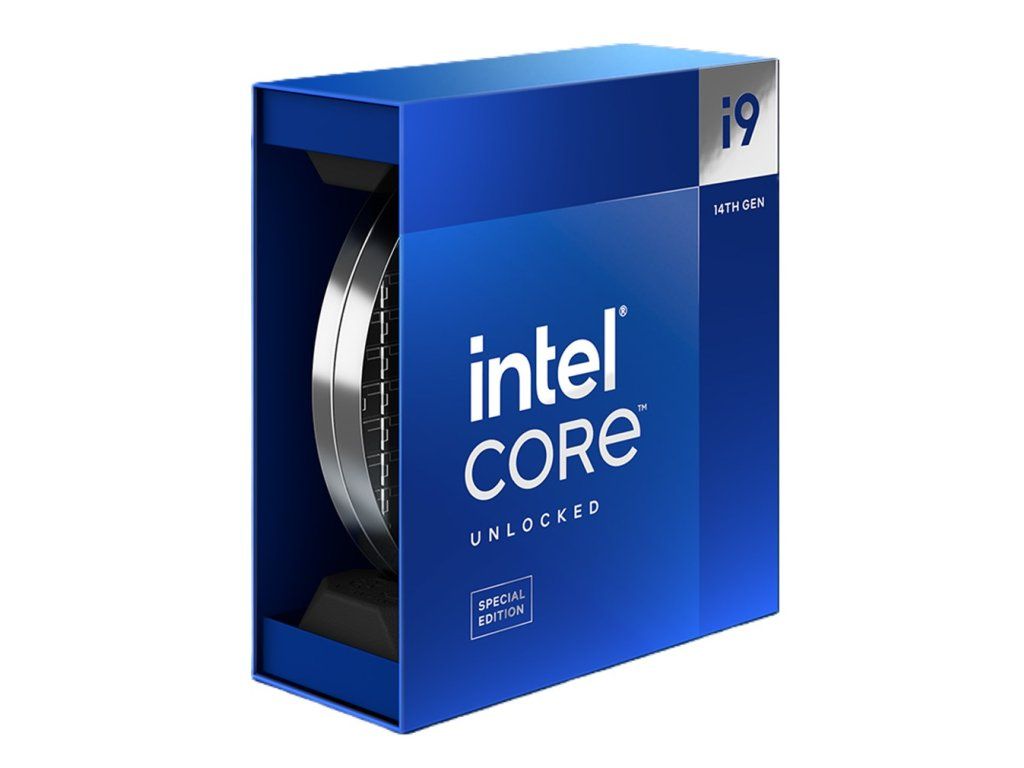

Intel Core i9-14900KS processor 36 MB Smart Cache Box
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Intel Core i9 processors |
|---|---|
| Greutate: | 0.09 kg |
| EAN: | 5032037280235 |
| Launch date: | Q1'24 |
| OpenCL version: | 3.0 |
| Status: | Launched |
| Processor codename: | Raptor Lake |
| Processor socket: | LGA 1700 |
| Memory bandwidth supported by processor (max): | 89.6 GB/s |
| Maximum turbo power: | 253 W |
| Processor operating modes: | 64-bit |
| Processor manufacturer: | Intel |
| Performance-core base frequency: | 3.2 GHz |
| Processor cache type: | Smart Cache |
| Processor cores: | 24 |
| Processor model: | i9-14900KS |
| Efficient cores: | 16 |
| Stepping: | B0 |
| Performance cores: | 8 |
| Processor ARK ID: | 237504 |
| Processor cache: | 36 MB |
| Processor base power: | 150 W |
| Box: | Yes |
| Processor threads: | 32 |
| Processor generation: | Intel® Core™ i9 (14th gen) |
| Processor family: | Intel® Core™ i9 |
| Cooler included: | No |
| Performance-core boost frequency: | 5.7 GHz |
| Maximum number of DMI lanes: | 8 |
| On-board graphics card DirectX version: | 12.0 |
| Discrete graphics card model: | Not available |
| Number of execution units: | 32 |
| On-board graphics card model: | Intel UHD Graphics 770 |
| Multi-Format Codec Engines: | 2 |
| Discrete graphics card: | No |
| On-board graphics card outputs supported: | DisplayPort 1.4a, HDMI 2.1, Embedded DisplayPort (eDP) 1.4b |
| On-board graphics card maximum resolution (DisplayPort): | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (HDMI): | 4096 x 2160 pixels |
| On-board graphics card ID: | 0xA780 |
| On-board graphics card dynamic frequency (max): | 1650 MHz |
| On-board graphics card: | Yes |
| On-board graphics card OpenGL version: | 4.5 |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel): | 5120 x 3200 pixels |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): | 120 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI): | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort): | 60 Hz |
| On-board graphics card base frequency: | 300 MHz |
| Number of displays supported (on-board graphics): | 4 |
| PCI Express configurations: | 1x16+1x4, 2x8+1x4 |
| Thermal Monitoring Technologies: | Yes |
| Embedded options available: | No |
| CPU configuration (max): | 1 |
| PCI Express slots version: | 4.0, 5.0 |
| Use conditions: | PC/Client/Tablet |
| Market segment: | Desktop |
| Execute Disable Bit: | Yes |
| Idle States: | Yes |
| Commodity Classification Automated Tracking System (CCATS): | 740.17B1 |
| Export Control Classification Number (ECCN): | 5A992C |
| Supported instruction sets: | SSE4.2, SSE4.1, AVX 2.0 |
| Direct Media Interface (DMI) Revision: | 4.0 |
| Maximum number of PCI Express lanes: | 20 |
| Scalability: | 1S |
| Non-ECC: | Yes |
| ECC: | Yes |
| Memory bandwidth (max): | 89.6 GB/s |
| Memory channels: | Dual-channel |
| Maximum internal memory supported by processor: | 192 GB |
| Memory types supported by processor: | DDR4-SDRAM, DDR5-SDRAM |
| Tjunction: | 100 °C |
| Processor package size: | 45 x 37.5 mm |
| Intel® Hyper Threading Technology (Intel® HT Technology): | Yes |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel® Standard Manageability (ISM): | Yes |
| Intel 64: | Yes |
| Intel® Volume Management Device (VMD): | Yes |
| Intel® One-Click Recovery: | Yes |
| Intel Turbo Boost Max Technology 3.0: | Yes |
| Mode-based Execute Control (MBE): | Yes |
| Enhanced Intel SpeedStep Technology: | Yes |
| Intel® Speed Shift Technology: | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency: | 5.9 GHz |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0: | Yes |
| Intel Trusted Execution Technology: | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| Intel Virtualization Technology (VT-x): | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp): | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU: | Yes |
| Intel® Threat Detection Technology (TDT): | Yes |
| Intel® Secure Key: | Yes |
| Intel® Thermal Velocity Boost: | Yes |
| Intel vPro® Enterprise Platform Eligibility: | Yes |
| Intel® Remote Platform Erase (RPE): | Yes |
| Intel® Thread Director: | Yes |
| Intel® Active Management Technology (Intel® AMT): | Yes |
| Intel vPro® Essentials Platform Eligibility: | Yes |
| Intel® Boot Guard: | Yes |
| Intel® Hardware Shield Eligibility: | Yes |
| Intel® Thermal Velocity Boost Frequency: | 6.2 GHz |
| Intel® Total Memory Encryption - Multi Key: | Yes |
| Intel® Quick Sync Video Technology: | Yes |
| Intel® Control-flow Enforcement Technology (CET): | Yes |
| Intel® Adaptive Boost Technology: | Yes |
| Intel® OS Guard: | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD): | Yes |
| Intel® AES New Instructions (Intel® AES-NI): | Yes |
| Maximum internal memory: | 192 GB |
| L2 cache: | 32768 KB |
| Graphics output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Harmonized System (HS) code: | 8542310001 |
| Warnings: | Protect against overheating., Avoid contact with liquid., Do not install on a switched-on device. |
