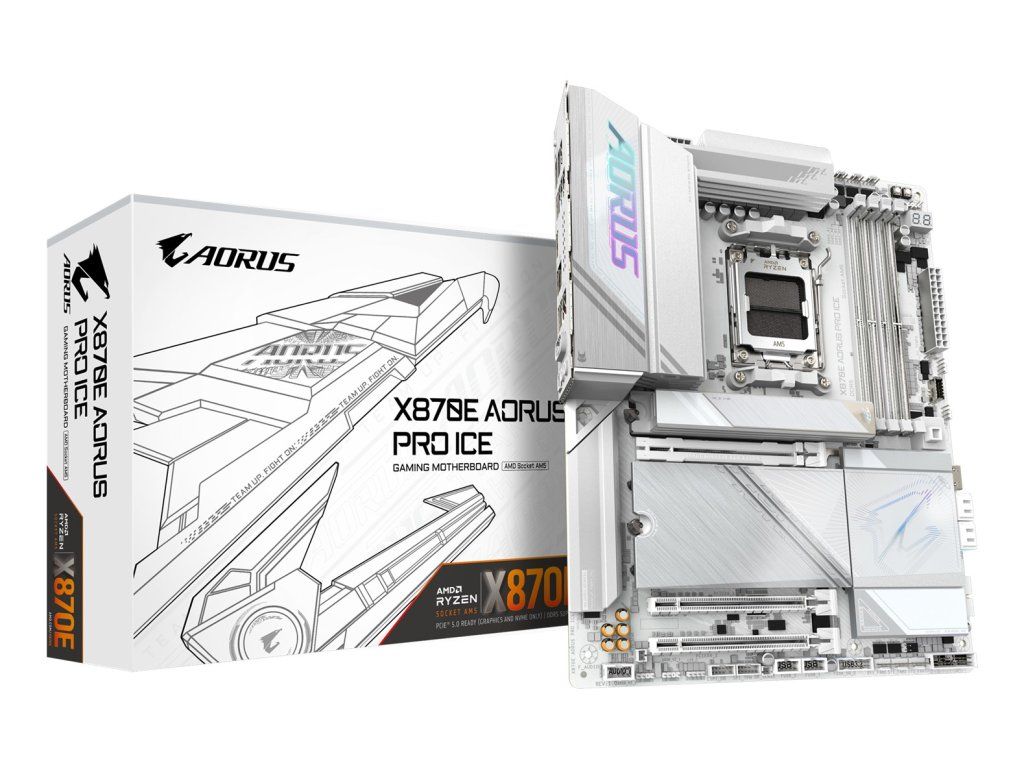

GIGABYTE X870E AORUS PRO ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 3xPCIe 5.0 + 1xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.35 kg |
| EAN: | 4719331864798 |
| Warranty period: | 3 year(s) |
| Maximum internal memory supported by processor: | 256 GB |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer: | AMD |
| DirectX version: | 12.0 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| PC health monitoring: | Fan, Voltage, Temperature |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Product colour: | White |
| Audio chip: | Realtek ALC1220 |
| Motherboard chipset: | AMD X870E |
| Motherboard chipset family: | AMD |
| Supported memory clock speed (max): | 8200 MHz |
| Maximum internal memory per slot: | 64 GB |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 6200, 7600, 7800, 6800, 8000, 6600, 4400 MHz, 6400, 6000, 5600, 4800 MHz, 7000, 8200 |
| Maximum internal memory: | 256 GB |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Supported memory module capacities: | 1GB, 24GB, 12GB, 8GB, 32GB, 2GB, 4GB |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Unbuffered memory: | Yes |
| Height: | 35 mm |
| Depth: | 244 mm |
| Width: | 305 mm |
| Bluetooth version: | 5.3 |
| WLAN controller model: | Qualcomm QCNCM865 |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| LAN controller: | Realtek RTL8125 |
| Ethernet LAN: | Yes |
| Bluetooth: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| RGB LED pin header: | Yes |
| Audio connector: | Yes |
| Number of water pump connectors: | 2 |
| Number of EPS power connectors (8-pin): | 2 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 4 |
| Number of chassis fan connectors: | 6 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| TPM connector: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 80 mm |
| Package weight: | 2.74 kg |
| Package width: | 345 mm |
| Package depth: | 294 mm |
| Screws included: | Yes |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of HDDs supported: | 4 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 8 |
| RAID levels: | 1, 0, 10 |
| RAID support: | Yes |
| WiFi-AP antenna jack: | 2 |
| USB4 Gen 2x2 ports quantity: | 2 |
| S/PDIF out port: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| DisplayPort version: | 1.4 |
| PCI Express x4 slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 22110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 22110 |
| 3rd M.2 highest PCI Express generation: | 5.0 |
| 1st M.2 largest key size: | 25110 |
| 4th M.2 largest key size: | 22110 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Weight: | 2.4 kg |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
