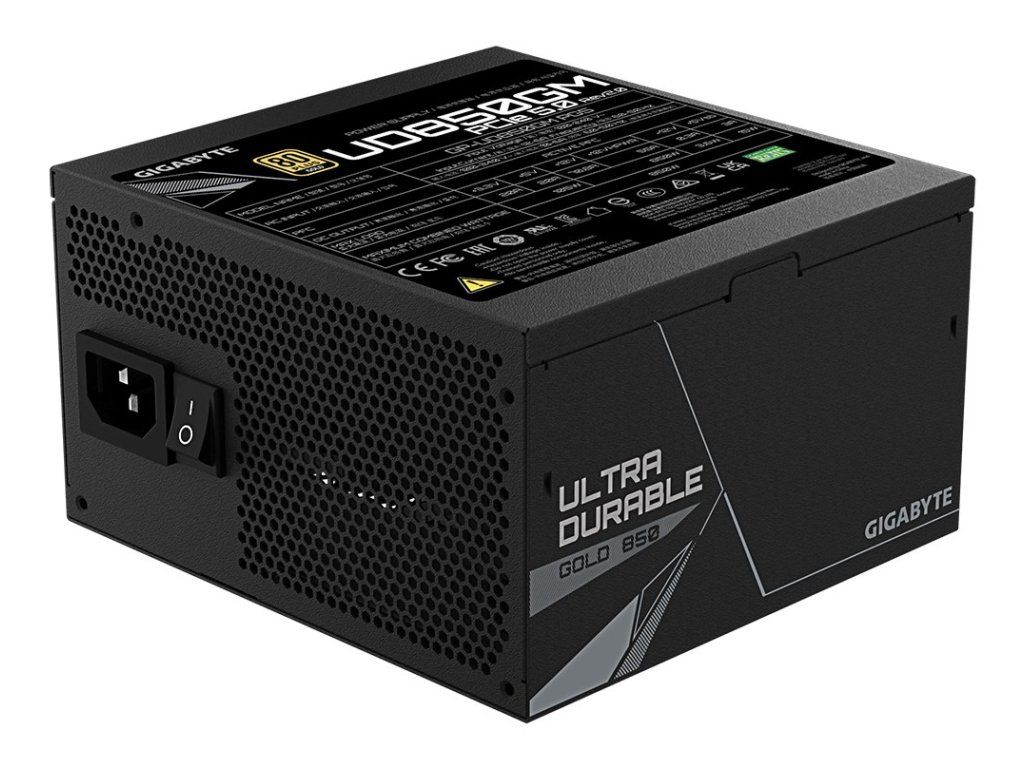

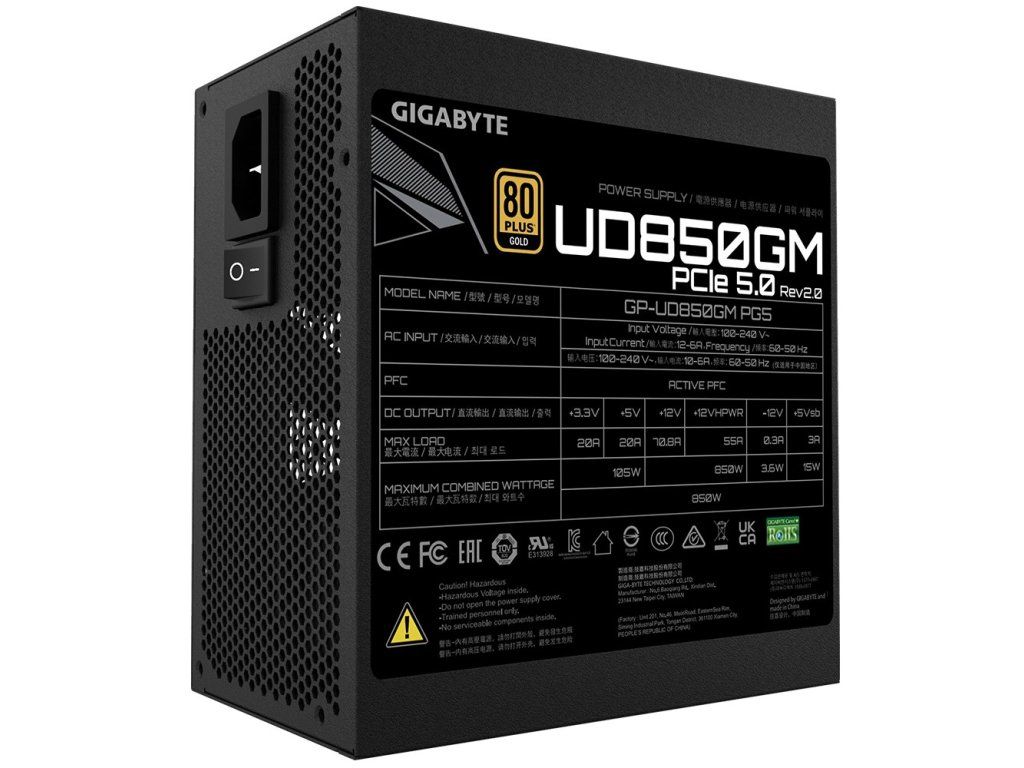

Gigabyte UD850GM 850W PG5 V2 (GP-UD850GM PG5 V2) - power supply, black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.55 kg |
| EAN: | 4719331555993 |
| Product colour: | Black |
| On/off switch: | Yes |
| Number of fans: | 1 fan(s) |
| Fan diameter: | 12 cm |
| Cooling type: | Active |
| AC input voltage: | 100 - 240 V |
| Combined power (+5Vsb): | 15 W |
| Input current: | 12 - 6 A |
| AC input frequency: | 50/60 Hz |
| Hold time: | 16 ms |
| Max output current (+5Vsb): | 3 A |
| Max output current (+3.3V): | 20 A |
| Combined power (+12V): | 850 W |
| Combined power (+5V): | 105 W |
| Efficiency: | 90% |
| Combined power (+3.3V): | 105 W |
| Power factor: | 0.9 |
| Max output current (-12V): | 0.3 A |
| Max output current (+5V): | 20 A |
| Power Factor Correction (PFC) type: | Active |
| Power protection features: | Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating |
| Total power: | 850 W |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| Weight: | 2.4 kg |
| 80 PLUS certification: | 80 PLUS Gold |
| Purpose: | PC |
| Bearing technology: | HYB |
| ATX version: | 3.1 |
| Power supply unit (PSU) form factor: | ATX |
| Mean time between failures (MTBF): | 100000 h |
| Package depth: | 269 mm |
| Package type: | Box |
| Package height: | 211 mm |
| Package width: | 618 mm |
| Package weight: | 2.56 kg |
| SATA power cable length: | 150, 600 mm |
| Peripheral (Molex) power cable length: | 150, 500 mm |
| Motherboard power cable length: | 61 cm |
| Floppy drive power connector: | 1 |
| CPU power cable length: | 60 cm |
| Number of SATA power connectors: | 8 |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| Motherboard power connector: | 20+4 pin ATX |
| PCI Express connector: | Yes |
| PCI Express power connectors (6+2 pin): | 4 |
| CPU power connector (4+4 pin): | Yes |
| PCI Express power cable length: | 70 cm |
| Number of EPS connectors: | 2 |
| PCI Express power connectors (16-pin): | 1 |
| Cabling type: | Fully-Modular |
| Warranty period: | 10 year(s) |
