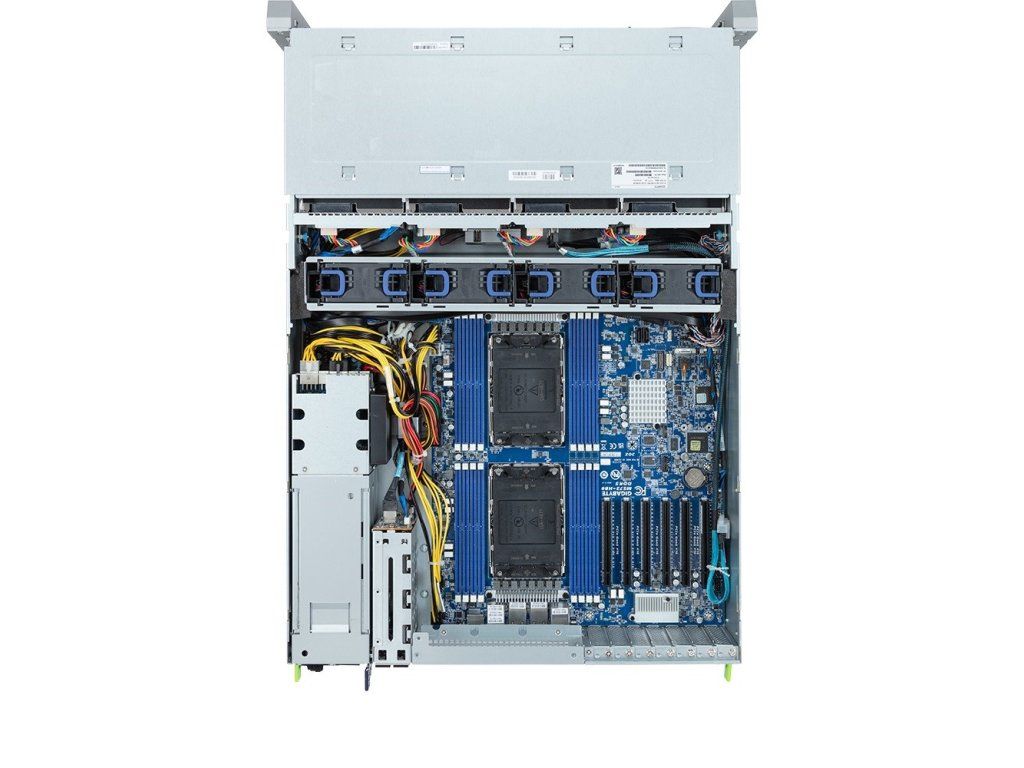

Gigabyte Rack Platform (4U) Intel S453-S70-AAV1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Server platforms RACK |
|---|---|
| Greutate: | 47.4 kg |
| EAN: | 4719331862381 |
| Number of processors supported: | 2 |
| Processor manufacturer: | Intel |
| Processor family: | Intel® Xeon® Scalable |
| Compatible processor series: | Intel Xeon Scalable Gen 4, Intel Xeon Scalable Gen 5 |
| Processor socket: | LGA 4677 (Socket E) |
| TPM connector: | Yes |
| Trusted Platform Module (TPM): | No |
| Supported memory types: | DDR5-SDRAM |
| Supported RDIMM clock speeds: | 5600 MHz, 4800 MHz |
| Memory channels supported by processor: | Octa |
| Number of DIMM slots: | 16 |
| Product colour: | Black |
| LED indicators: | Yes |
| Motherboard chipset: | Intel C741 |
| Chassis type: | Rack (4U) |
| Power supply: | 1600 W |
| Power supply type: | Redundant |
| 80 PLUS certification: | 80 PLUS Titanium |
| Storage temperature (T-T): | -40 - 60 °C |
| Storage relative humidity (H-H): | 20 - 95% |
| Height: | 177 mm |
| Width: | 482.6 mm |
| Weight: | 28 kg |
| Depth: | 625 mm |
| Ethernet interface type: | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller: | Intel X710-AT2, Intel® I210-AT |
| Ethernet LAN data rates: | 1000 Mbit/s, 10000 Mbit/s |
| Ethernet LAN: | Yes |
| Package weight: | 48 kg |
| Package depth: | 860 mm |
| Package height: | 290 mm |
| Package width: | 630 mm |
| PCI Express x16 (Gen 5.x) slots: | 6 |
| Supported storage drive interfaces: | SATA III, SAS3, M2 |
| Number of storage drives supported: | 38 |
| Supported storage drive types: | HDD & SSD |
| Hot-swap: | Yes |
| Storage drive sizes supported: | M.2, 3.5", 2.5 |
| Number of 2.5"/3.5" bays: | 4 |
| Number of M.2 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| COM ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 4 |
| VGA (D-Sub) ports quantity: | 1 |
| Reset button: | Yes |
| Number of front USB ports: | 2 |
| Port Management LAN: | Yes, 1 |
| Number of rear USB ports: | 3 |
| Warnings: | Do not disassemble the unit yourself., Do not throw into regular trash, product requires special disposal., The product may contain components that are harmful to health, use caution when handling. |
