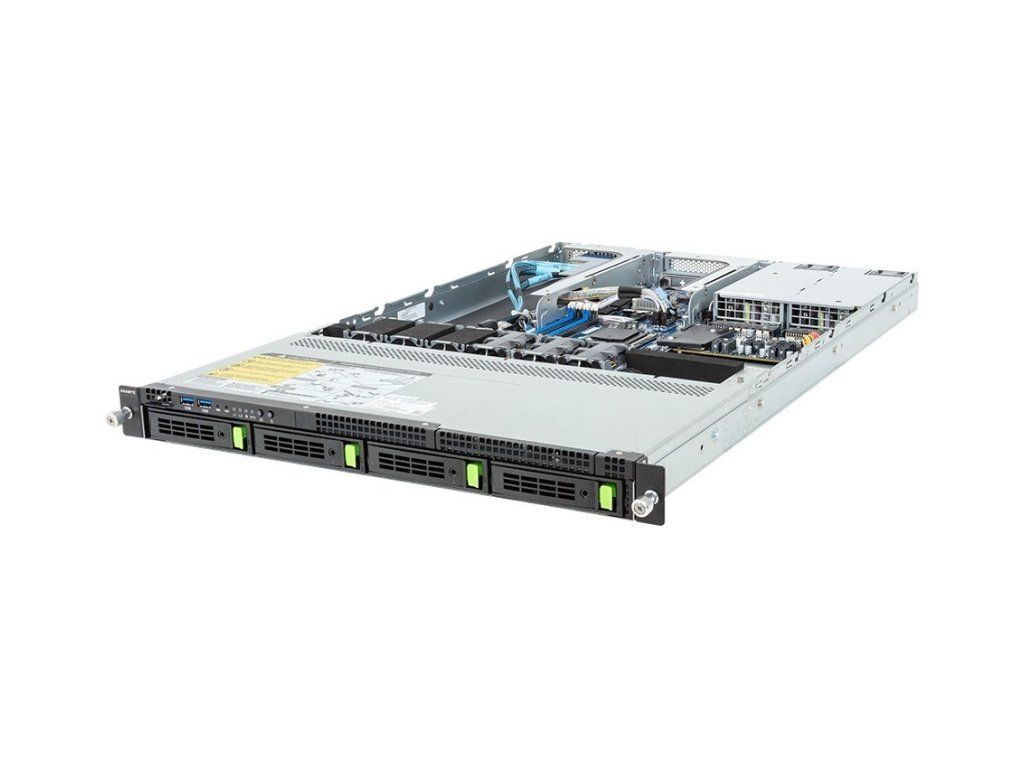

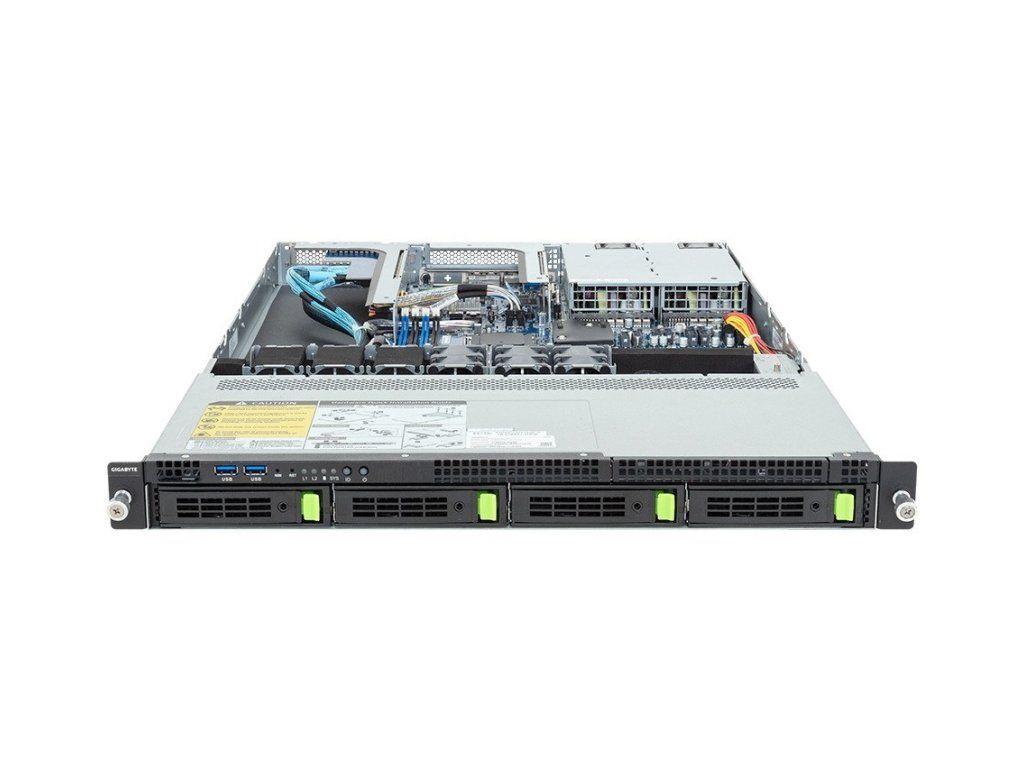

Gigabyte Rack Platform (1U) AMD R133-C10-000-AAA2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Server platforms RACK |
|---|---|
| Greutate: | 19.8 kg |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD EPYC 4004, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD EPYC 4005 |
| Motherboard chipset: | AMD B650E |
| Processor socket: | Socket AM5 |
| Number of processors supported: | 1 |
| On-board graphics card model: | Aspeed AST2600 |
| Trusted Platform Module (TPM): | Yes |
| Backplanes support: | Yes |
| Supported RDIMM clock speeds: | 3600 MHz, 5600 MHz, 5200 |
| Number of DIMM slots: | 4 |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Number of fans: | 3 fan(s) |
| Chassis type: | Rack (1U) |
| AC input voltage: | 100 - 240 V |
| 80 PLUS certification: | 80 PLUS Platinum |
| Number of main power supplies: | 2 |
| Power supply: | 550 W |
| Operating temperature (T-T): | 10 - 30 °C |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 8 - 80% |
| Storage relative humidity (H-H): | 20 - 95% |
| Weight: | 18.1 kg |
| Width: | 438 mm |
| Depth: | 710 mm |
| Height: | 43.5 mm |
| Ethernet LAN data rates: | 1000 Mbit/s, 10, 100 |
| LAN controller: | Broadcom BCM5720 |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Package depth: | 594 mm |
| Package width: | 982 mm |
| Package weight: | 20.1 kg |
| Package height: | 250 mm |
| PCI Express x16 slots: | 1 |
| Number of 2.5"/3.5" bays: | 4 |
| Storage drive sizes supported: | 3.5", 2.5 |
| Ethernet LAN (RJ-45) ports: | 2 |
| Mini DisplayPorts quantity: | 1 |
| Reset button: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
