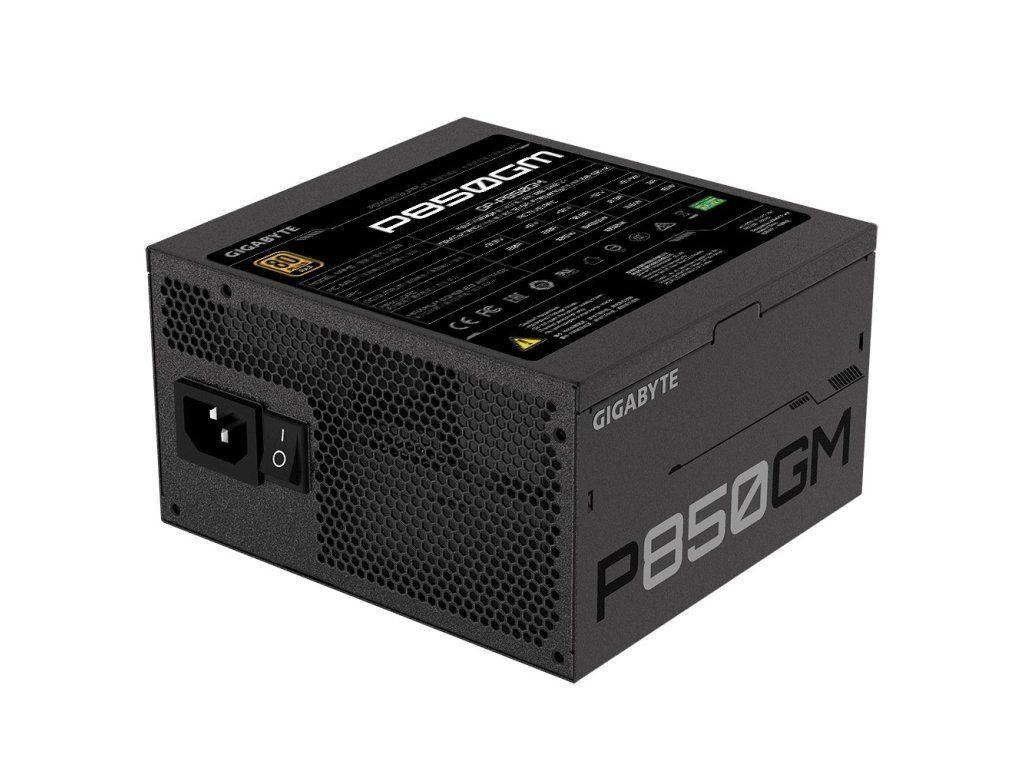

Gigabyte P850GM power supply unit 850 W 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.495 kg |
| EAN: | 4719331551865 |
| Cooling type: | Active |
| On/off switch: | Yes |
| Fan location: | Top |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Product colour: | Black |
| Power protection features: | Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating |
| Max output current (+12V): | 70.5 A |
| Max output current (+5Vsb): | 3 A |
| Combined power (+5V): | 120 W |
| Max output current (+3.3V): | 20 A |
| Maximum input current (@220V): | 6 A |
| Total power: | 850 W |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Max output current (+5V): | 20 A |
| Efficiency: | 90% |
| Combined power (+5Vsb): | 15 W |
| Power factor: | 0.9 |
| Maximum input current (@110V): | 12 A |
| Power Factor Correction (PFC) type: | Active |
| Hold time: | 16 ms |
| Combined power (+3.3V): | 120 W |
| Combined power (+12V): | 846 W |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| Purpose: | PC |
| ATX version: | 2.31 |
| Mean time between failures (MTBF): | 100000 h |
| Power supply unit (PSU) form factor: | ATX |
| 80 PLUS certification: | 80 PLUS Gold |
| Package type: | Box |
| Cabling type: | Fully-Modular |
| SATA power cable length: | 750 mm, 900 mm, 600 mm |
| Motherboard power connector: | 20+4 pin ATX |
| CPU power cable length: | 60 cm |
| PCI Express power connectors (6+2 pin): | 4 |
| Number of SATA power connectors: | 8 |
| Peripheral (Molex) power connectors (4-pin): | 3 |
| ATX power connector (20+4 pin): | Yes |
| Floppy disk drive connector: | Yes |
| CPU power connector (4+4 pin): | Yes |
| Motherboard power cable length: | 61 cm |
| Floppy drive power connector: | 2 |
| Floppy disk drive cable length: | 89 cm |
| PCI Express power cable length: | 75 cm |
| Harmonized System (HS) code: | 84733020 |
