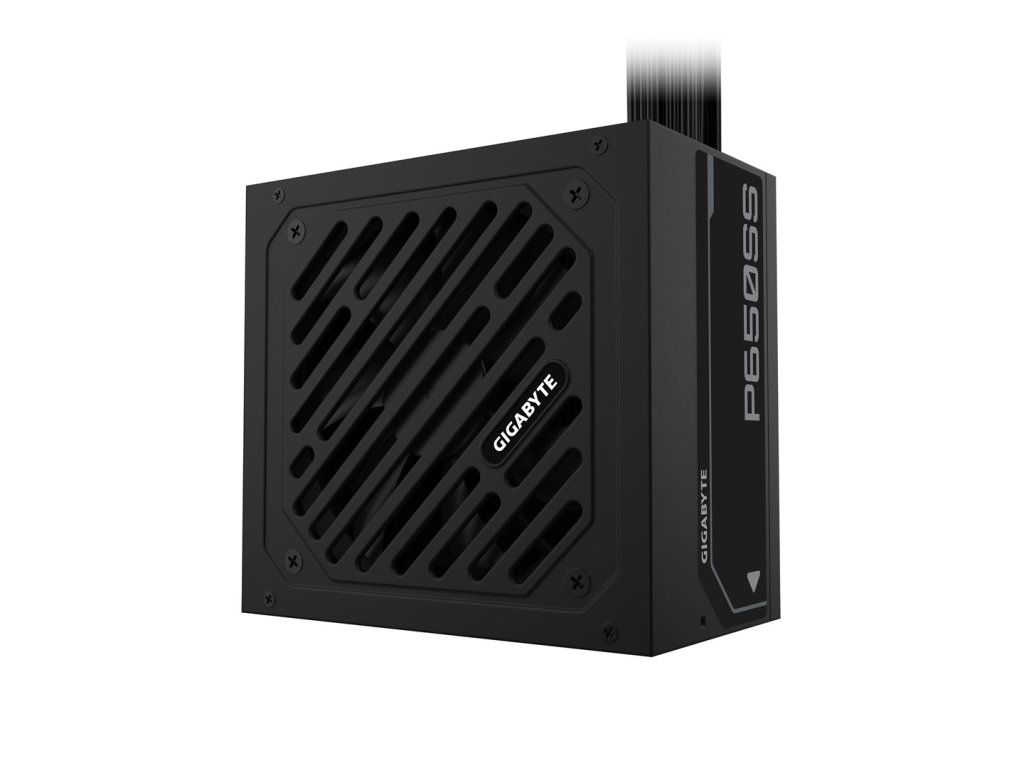

GIGABYTE P650SS power supply unit 650 W 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 2.08 kg |
| EAN: | 4719331554095 |
| Cooling type: | Active |
| On/off switch: | Yes |
| Product colour: | Black |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| Fan location: | Top |
| Power protection features: | Short circuit, Overcharge, Under voltage, Over power |
| Power factor: | 0.9 |
| Total power: | 650 W |
| AC input voltage: | 155-240 V |
| Input current: | 6.3 A |
| Combined power (+3.3V): | 100 W |
| Power Factor Correction (PFC) type: | Active |
| Combined power (+12V): | 649.2 W |
| Combined power (+5Vsb): | 15 W |
| Combined power (+5V): | 100 W |
| Max output current (+12V): | 54.1 A |
| Max output current (+3.3V): | 20 A |
| Max output current (+5V): | 20 A |
| Max output current (+5Vsb): | 3 A |
| Height: | 86 mm |
| Depth: | 140 mm |
| Width: | 150 mm |
| Purpose: | PC |
| 80 PLUS certification: | 80 PLUS Bronze |
| Mean time between failures (MTBF): | 100000 h |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.0 |
| Bearing technology: | HDB |
| Package type: | Box |
| Floppy disk drive connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| Cabling type: | Non-Modular |
| PCI Express power connectors (6+2 pin): | 4 |
| Motherboard power connector: | 20+4 pin ATX |
| CPU power connector (4+4 pin): | Yes |
| ATX power connector (20+4 pin): | Yes |
| Number of SATA power connectors: | 5 |
| Peripheral (Molex) power cable length: | 500 mm, 120 |
| Motherboard power cable length: | 60 cm |
| SATA power cable length: | 500 mm, 120 |
| CPU P4 connector (4-pin): | 1 |
| CPU power cable length: | 60 cm |
| PCI Express power cable length: | 65 cm |
| Power management: | Yes |
| Noise level (quiet mode, 50%): | 29 dB |
| Noise level (full-load mode, 100%): | 39 dB |
| Noise level (silent mode, <30%): | 20 dB |
| Harmonized System (HS) code: | 84733020 |
