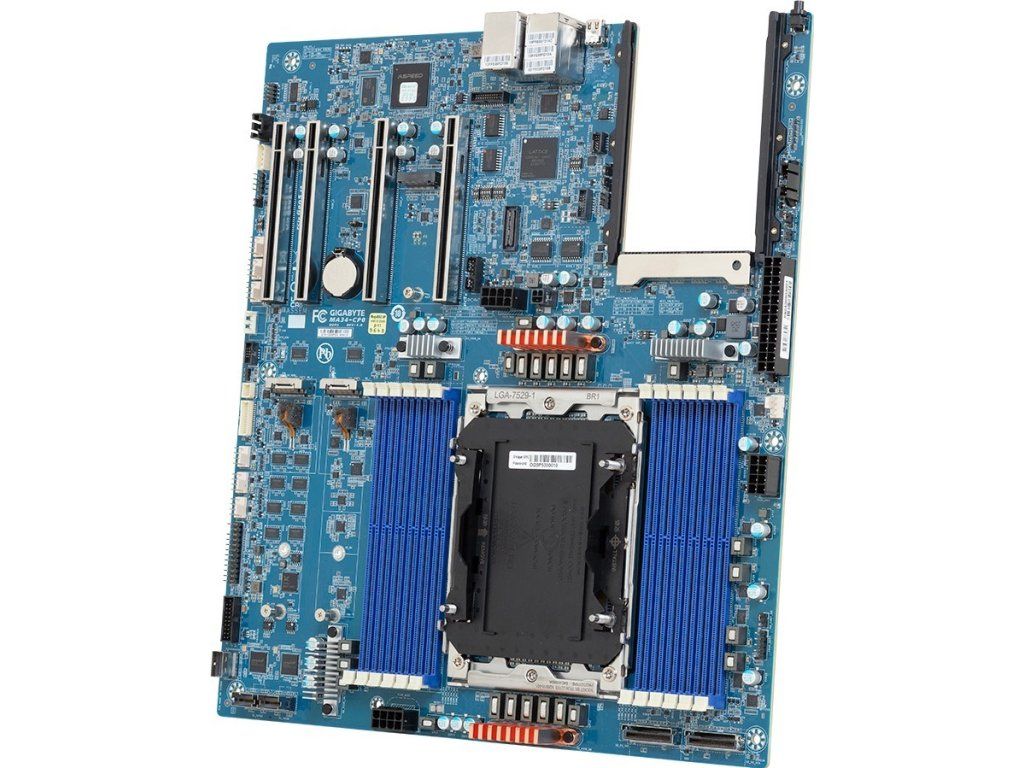

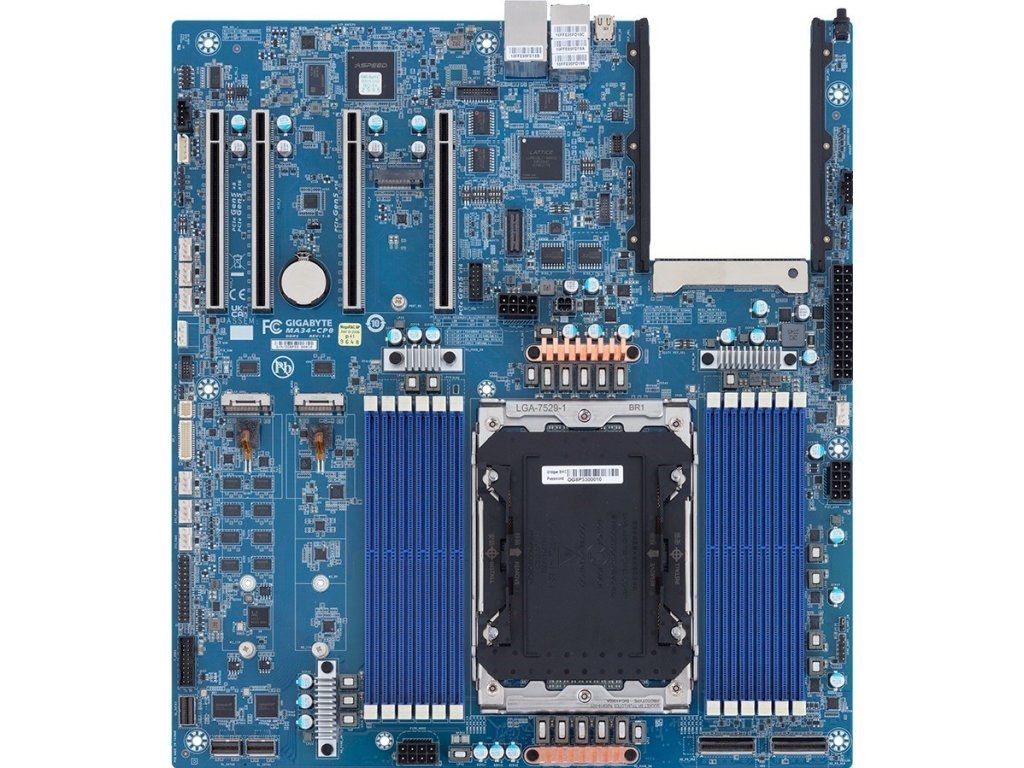

Gigabyte MA34-CP0 LGA7529 Intel motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 2.21 kg |
| EAN: | 4719331865351 |
| Processor socket: | LGA 7529 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel Xeon 6 |
| On-board graphics card model: | Aspeed AST2600 |
| Component for: | Server/workstation |
| Motherboard form factor: | EATX |
| Motherboard chipset: | System on Chip |
| Product colour: | Blue |
| Supported memory types: | DDR5 RDIMM/MRDIMM |
| Memory slots type: | DIMM |
| Number of memory slots: | 12 |
| Memory channels: | Twelve-channel |
| Supported memory clock speeds: | 6400 MHz, 8800 MHz |
| Width: | 304.8 mm |
| Depth: | 335,2 mm |
| Ethernet interface type: | 1 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Number of SlimSAS connectors: | 3 |
| CPU fan connector: | Yes |
| IPMB connector: | 1 |
| TPM connector: | Yes |
| PMBus connector: | 1 |
| 12V power connector: | Yes |
| Number of COM connectors: | 1 |
| Number of chassis fan connectors: | 6 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 1 |
| Package width: | 409 mm |
| Package depth: | 355 mm |
| Package height: | 78 mm |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Mini DisplayPorts quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 2 |
| Port Management LAN: | Yes, 1 |
| Number of M.2 (M) slots: | 2 |
