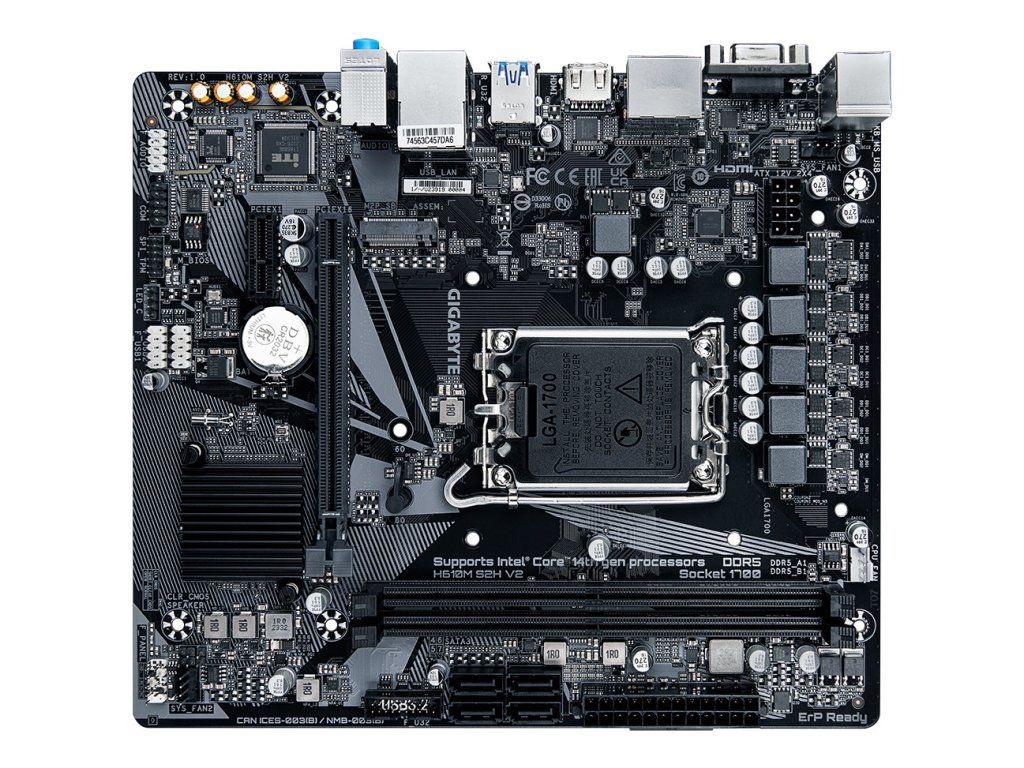

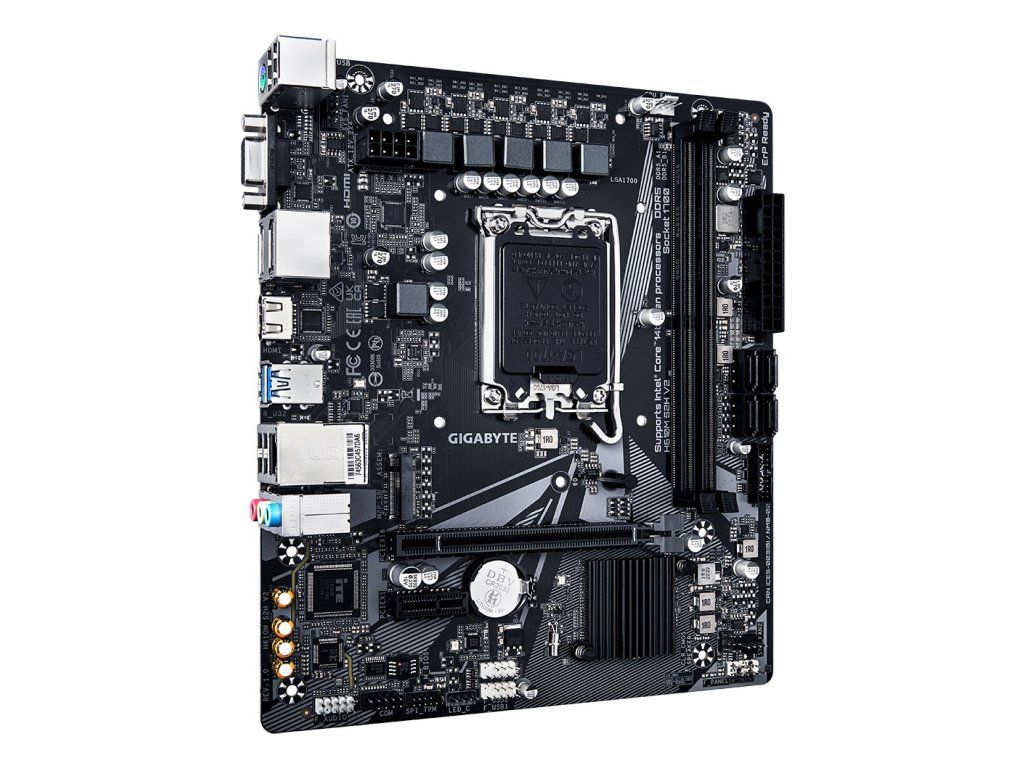

GIGABYTE H610M S2H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.69 kg |
| EAN: | 4719331859817 |
| Warranty period: | 3 year(s) |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1700 |
| Maximum number of SMP processors: | 1 |
| Maximum internal memory supported by processor: | 96 GB |
| Graphics card family: | Intel |
| Graphics card: | HD Graphics |
| On-board graphics card model: | Intel® HD Graphics |
| Maximum resolution: | 4096 x 2304 pixels |
| HDCP: | Yes |
| On-board graphics card: | Yes |
| Power source type: | ATX |
| Audio output channels: | 7.1 channels |
| Cooling type: | Active |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| PC health monitoring: | Fan, Temperature, LED, Voltage, Water cooling |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | Intel H610 Express |
| Product colour: | Black |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 5600 MHz |
| Number of memory slots: | 2 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 5200, 4400 MHz, 4800, 5600 |
| Supported memory module capacities: | 12GB, 1GB, 48GB, 2GB, 4GB, 8GB, 32GB |
| Maximum internal memory: | 96 GB |
| Unbuffered memory: | Yes |
| Width: | 230 mm |
| Depth: | 215 mm |
| Height: | 35 mm |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Serial port headers: | 1 |
| USB 2.0 connectors: | 2 |
| Number of COM connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 2 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package width: | 265 mm |
| Package weight: | 690 g |
| Package depth: | 235 mm |
| Package height: | 52 mm |
| Batteries included: | Yes |
| Cables included: | SATA |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive interfaces: | M.2, SATA |
| Number of storage drives supported: | 1 |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| USB 2.0 ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Headphone outputs: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| DVI-D ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| Microphone in: | Yes |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 slots: | 1 |
| PCI Express x16 slots: | 1 |
| Battery type: | CR2032 |
| Lithium weight per battery: | 0.07 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Supported DIMM module capacities: | 8GB, 16GB |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
