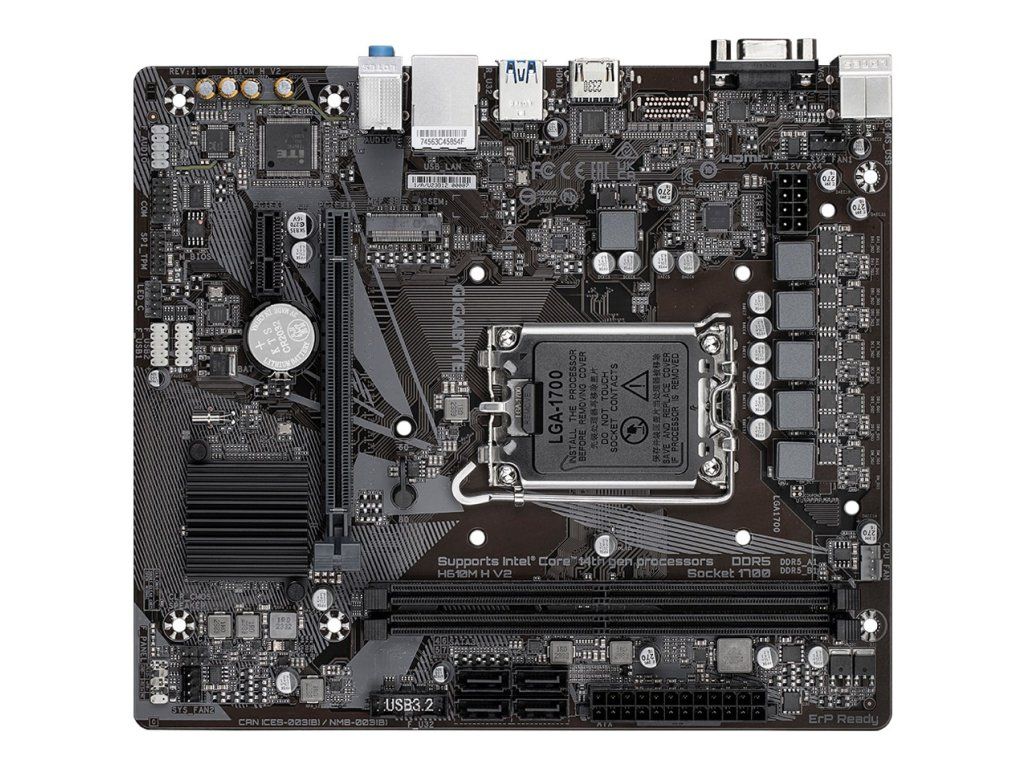

GIGABYTE H610M H V2 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 5600MHz DDR5, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.69 kg |
| EAN: | 4719331859985 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | LGA 1700 |
| Maximum internal memory supported by processor: | 96 GB |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Celeron® |
| Processor manufacturer: | Intel |
| HDCP: | Yes |
| Graphics card: | HD Graphics |
| Maximum resolution: | 4096 x 2304 pixels |
| Parallel processing technology support: | Not supported |
| Graphics card family: | Intel |
| Motherboard form factor: | micro ATX |
| Product colour: | Black |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| PC health monitoring: | Voltage, Fan, Water cooling, Temperature |
| Motherboard chipset: | Intel H610 Express |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Cooling type: | Active |
| Supported memory clock speeds: | 5600, 4800 MHz, 5200, 4400 MHz |
| Maximum internal memory: | 96 GB |
| Supported memory module capacities: | 12GB, 1GB, 2GB, 4GB, 32GB, 8GB, 48GB |
| Unbuffered memory: | Yes |
| ECC сompatibility: | ECC & Non-ECC |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Supported memory clock speed (max): | 5600 MHz |
| Height: | 35 mm |
| Depth: | 196 mm |
| Width: | 230 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| USB 2.0 connectors: | 2 |
| Serial port headers: | 1 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package weight: | 694 g |
| Package height: | 54 mm |
| Package depth: | 265 mm |
| Package width: | 265 mm |
| Cables included: | SATA |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 5 |
| Number of HDDs supported: | 1 |
| USB 2.0 ports quantity: | 4 |
| USB connector type: | USB Type-A |
| DisplayPorts quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| PS/2 ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| DVI-D ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| Headphone outputs: | 3 |
| PCI Express x16 slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 slots: | 1 |
| Lithium weight per battery: | 0.07 g |
| Battery type: | CR2032 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
