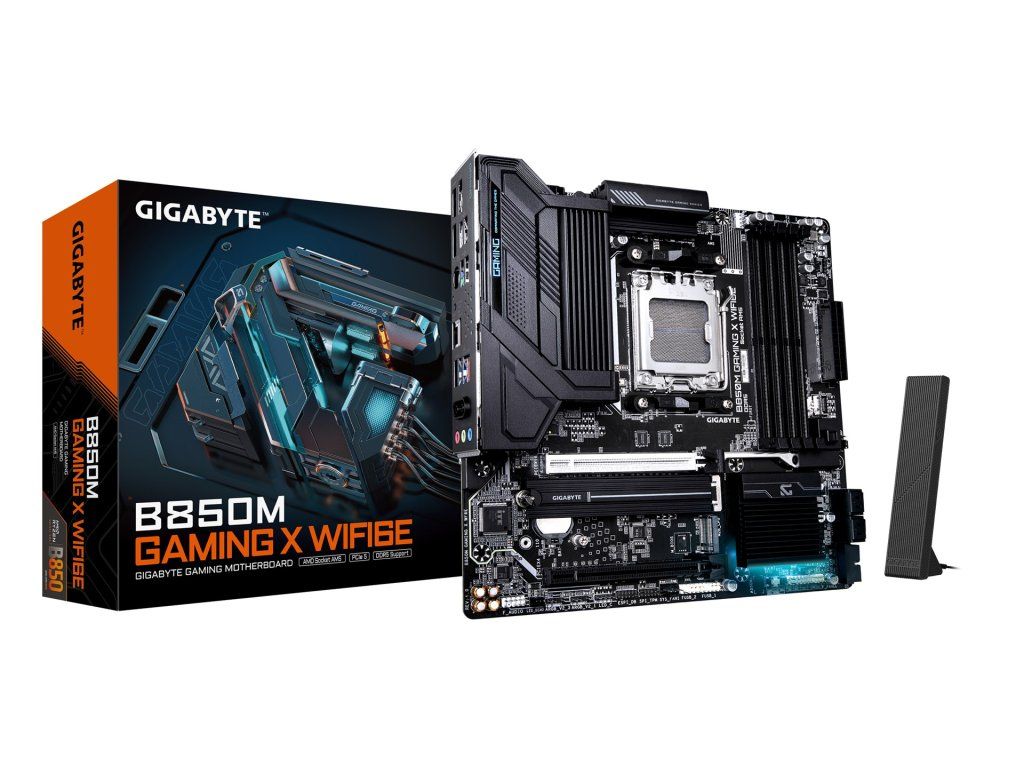

GIGABYTE B850M GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 10+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.544 kg |
| EAN: | 4719331866433 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | Socket AM5 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2160 pixels |
| DirectX version: | 12.0 |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD B850 |
| PC health monitoring: | Fan, Voltage, Temperature, Water cooling |
| Audio chip: | Realtek ALC897 |
| Product colour: | Bronze |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Unbuffered memory: | Yes |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 4400, 6800, 8000 MHz, 4800, 5600, 7200 MHz, 6000, 6600, 5200, 7950, 7900, 7600 MHz, 7800, 7000 MHz, 8200 MHz, 6400 MHz, 7400, 5800 |
| Maximum internal memory: | 256 GB |
| Maximum internal memory per slot: | 64 GB |
| Supported memory clock speed (max): | 8200 MHz |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Width: | 244 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| Bluetooth: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac) |
| WLAN controller model: | Realtek RTL8852CE |
| Bluetooth version: | 5.3 |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| USB 2.0 connectors: | 2 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 4 |
| Number of water pump connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| Serial port headers: | 1 |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| EPS power connector (8-pin): | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package weight: | 1.75 kg |
| Package width: | 270 mm |
| Package depth: | 268 mm |
| Package height: | 68 mm |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10 |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 4 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| 2nd M.2 largest key size: | 22110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 25110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Lithium weight per battery: | 0.07 g |
| Battery type: | CR2032 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight: | 3 g |
| Number of battery cells: | 1 |
| Weight: | 1.54 kg |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
