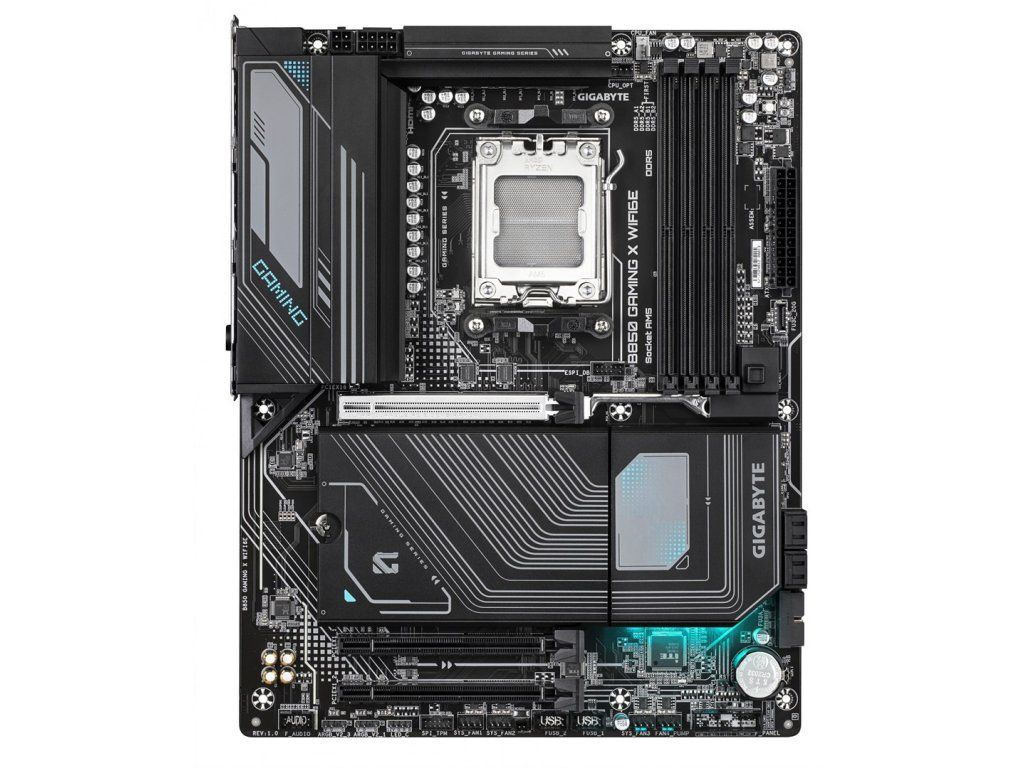

GIGABYTE B850 GAMING X WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5LAN, WIFI 6E, USB 3.2 Gen 2x2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.104 kg |
| EAN: | 4719331866457 |
| Warranty period: | 3 year(s) |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| DirectX version: | 12.0 |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Product colour: | Bronze |
| Motherboard chipset: | AMD B850 |
| PC health monitoring: | Water cooling, Voltage, Fan, Temperature |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | ATX |
| Power source type: | ATX |
| Supported memory clock speeds: | 6600, 4800 MHz, 8000, 6200, 6400, 7000, 8200, 6000, 5600, 7200, 7600, 7800, 7400, 4400 MHz, 7950, 7900, 6800, 5200, 5800 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8200 MHz |
| Maximum internal memory per slot: | 64 GB |
| ECC сompatibility: | Non-ECC |
| Memory channels: | Dual-channel |
| Height: | 35 mm |
| Width: | 305 mm |
| Depth: | 244 mm |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| WLAN controller model: | Realtek RTL8111H |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 4 |
| Number of CPU fan connectors: | 2 |
| Number of water pump connectors: | 2 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| TPM connector: | Yes |
| Front panel audio connector: | Yes |
| CPU fan connector: | Yes |
| Serial port headers: | 1 |
| Front panel connector: | Yes |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| USB 2.0 connectors: | 2 |
| Desktop Management Interface (DMI) version: | 2.7 |
| Clear CMOS button: | Yes |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 2.38 kg |
| Package depth: | 270 mm |
| Package width: | 335 mm |
| Package height: | 80 mm |
| Antenna included: | Yes |
| Screws included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| Number of HDDs supported: | 4 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, 0, 10 |
| RAID support: | Yes |
| Number of storage drives supported: | 7 |
| WiFi-AP antenna jack: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| DisplayPort version: | 2.1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Headphone outputs: | 1 |
| 1st M.2 largest key size: | 25110 |
| 3rd M.2 largest key size: | 22110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 22110 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Weight: | 2.1 kg |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
