GIGABYTE B760M DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.094 kg |
| EAN: | 4719331872809 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel® Celeron®, Intel Core i3 14th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i9 14th Gen |
| Processor manufacturer: | Intel |
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2304 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Cooling type: | Passive |
| PC health monitoring: | Water cooling, Voltage, Fan, Temperature |
| Motherboard chipset: | Intel B760 Express |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Product colour: | Dark brown |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Maximum internal memory per slot: | 64 GB |
| Supported memory clock speed (max): | 7600 MHz |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 5200, 6600, 6000, 6400, 7400, 7000, 6800, 4800 MHz, 4400 MHz, 7600, 5600, 7200, 6200, 5800 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Width: | 244 mm |
| Height: | 35 mm |
| Depth: | 244 mm |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac) |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| WLAN controller model: | Intel Wi-Fi 6E AX210 |
| Wi-Fi: | Yes |
| LAN controller: | Realtek RTL8125 |
| Bluetooth: | Yes |
| Number of chassis fan connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| 12V power connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 2 |
| RGB LED pin header: | Yes |
| TPM connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| Front panel audio connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of RGB LED pin headers: | 3 |
| S/PDIF out connector: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 68 mm |
| Package width: | 270 mm |
| Package weight: | 1.2 kg |
| Package depth: | 268 mm |
| Batteries included: | Yes |
| Screws included: | Yes |
| Antenna included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) |
| Number of storage drives supported: | 3 |
| RAID levels: | 10, 1, 0, 5 |
| Number of HDDs supported: | 4 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| DisplayPort version: | 1.2 |

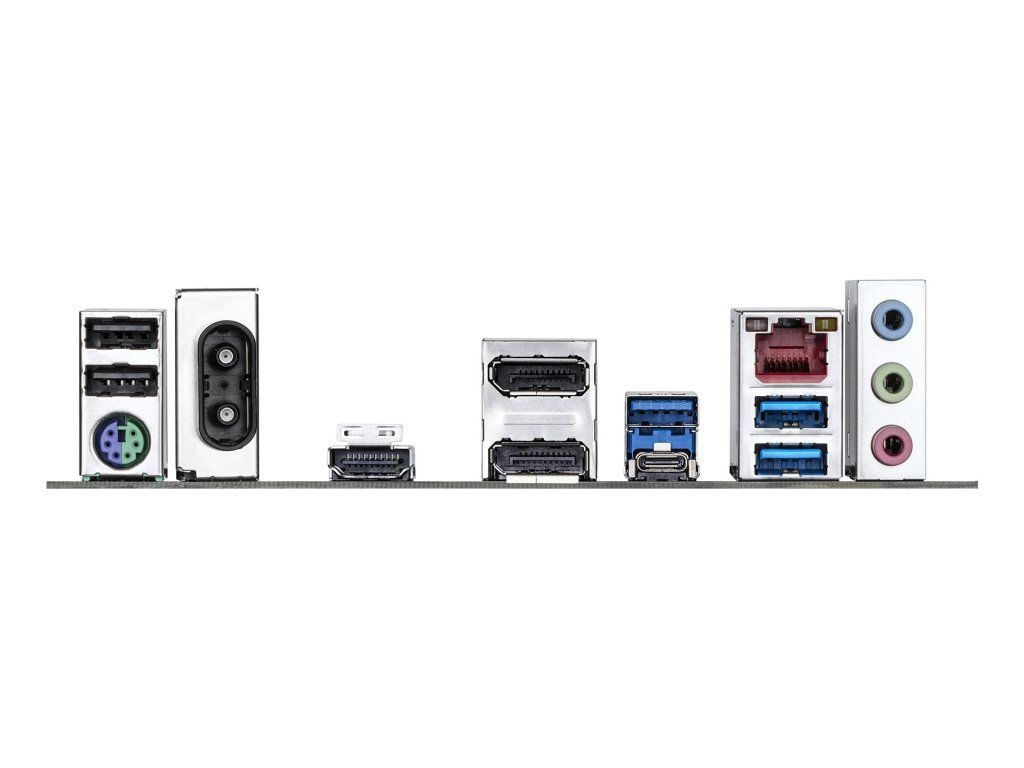

| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| DisplayPorts quantity: | 2 |
| WiFi-AP antenna jack: | 2 |
| HDMI version: | 2.1 |
| USB 2.0 ports quantity: | 2 |
| PS/2 ports quantity: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| 1st M.2 largest key size: | 2280 |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells: | 1 |
| Lithium weight per battery: | 0.07 g |
| Weight: | 1.1 kg |
| Products per shipping (inner) case: | 1 pc(s) |
| Country of origin: | China |
