GIGABYTE B760M DS3H GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 6+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.955 kg |
| EAN: | 4719331872793 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 13th Gen, Intel Core i9 14th Gen, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel® Celeron®, Intel Core i9 13th Gen, Intel Core i3 14th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 12th Gen |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2304 pixels |
| Parallel processing technology support: | Not supported |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| PC health monitoring: | Fan, Water cooling, Voltage, Temperature |
| Cooling type: | Passive |
| Motherboard form factor: | micro ATX |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Supported memory clock speeds: | 5600, 4800 MHz, 4400 MHz, 5200 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory clock speed (max): | 5600 MHz |
| ECC сompatibility: | ECC & Non-ECC |
| Maximum internal memory per slot: | 64 GB |
| Depth: | 174 mm |
| Width: | 244 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Serial port headers: | 1 |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of chassis fan connectors: | 3 |
| EPS power connector (8-pin): | Yes |
| Parallel connector: | Yes |
| S/PDIF out connector: | Yes |
| Front panel audio connector: | Yes |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| Number of RGB LED pin headers: | 3 |
| Number of EPS power connectors (8-pin): | 1 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| Front panel connector: | Yes |
| RGB LED pin header: | Yes |
| Number of CPU fan connectors: | 1 |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| RAID levels: | 10, 1, 0, 5 |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| RAID support: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |

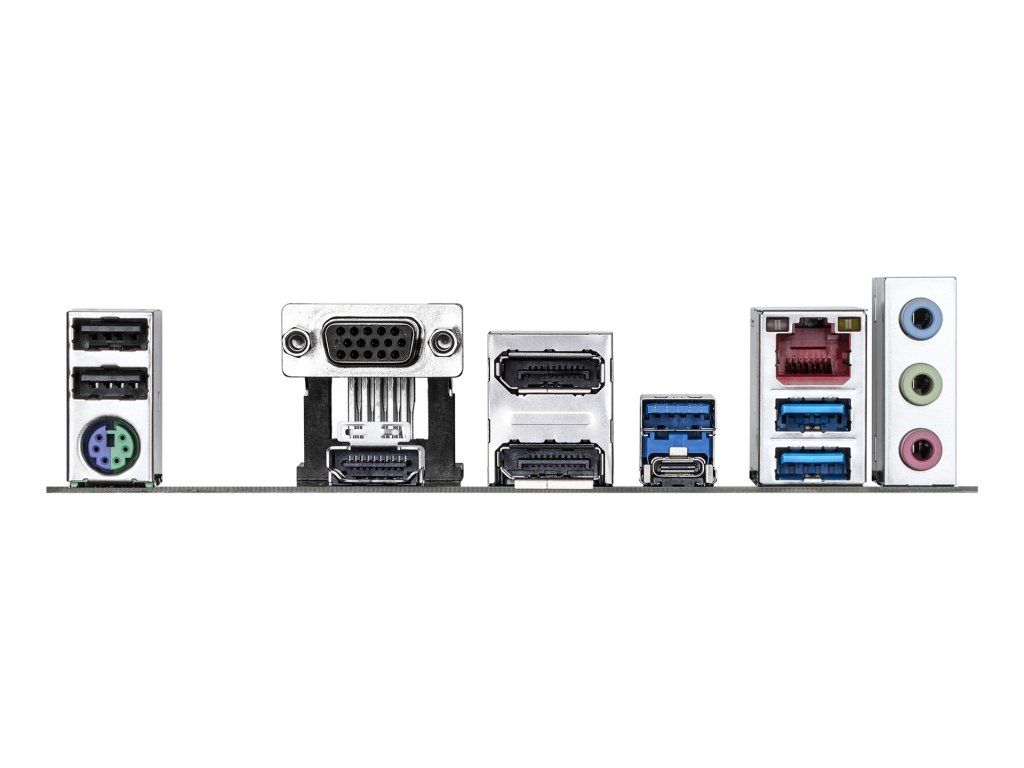

| USB 2.0 ports quantity: | 2 |
| DisplayPort version: | 1.2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI version: | 2.1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
