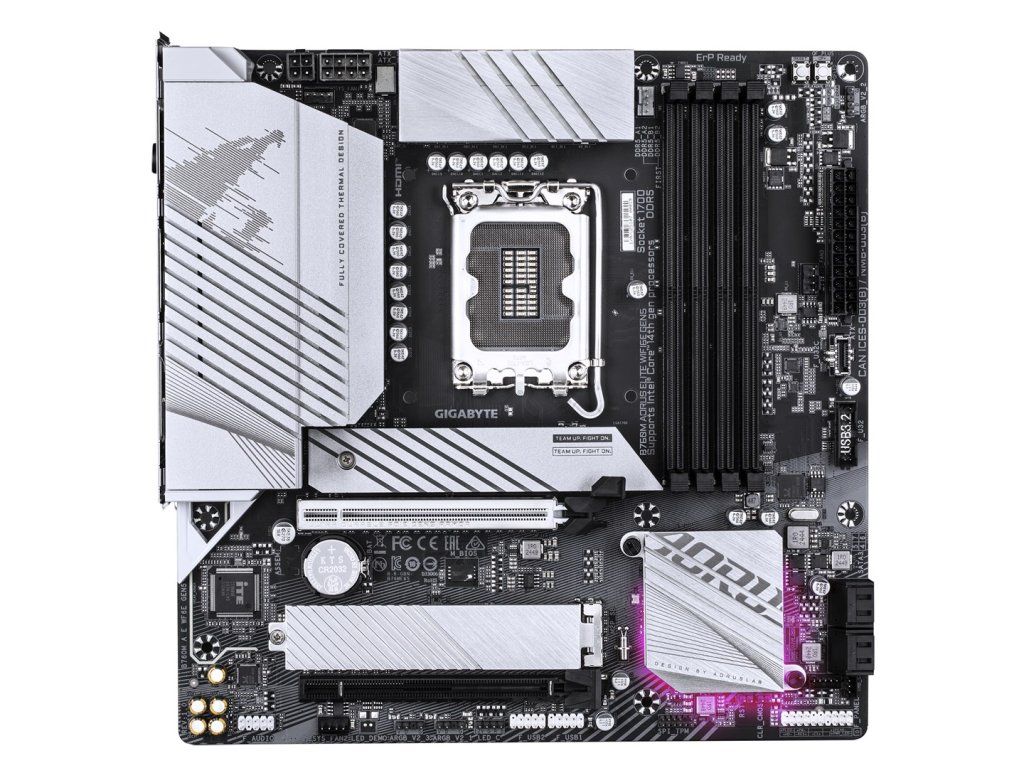

GIGABYTE B760M AORUS ELITE WIFI6E GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 12+1+1 phases VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5 GbE LAN, USB 3.2 Gen 2x2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.54 kg |
| EAN: | 4719331872069 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel Core i9 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen, Intel Core i3 12th Gen, Intel Core i3 14th Gen, Intel® Celeron®, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i9 14th Gen, Intel Core i3 13th Gen, Intel Core i7 13th Gen, Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen |
| Processor socket: | LGA 1700 |
| Processor manufacturer: | Intel |
| HDCP: | Yes |
| Maximum resolution: | 4096 x 2304 pixels |
| DirectX version: | 12.0 |
| Parallel processing technology support: | Not supported |
| PC health monitoring: | Fan, Water cooling, Voltage, Temperature |
| Product colour: | Black |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | Intel B760 Express |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | Intel |
| Power source type: | ATX |
| Cooling type: | Passive |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Supported memory clock speeds: | 4000, 7000, 6600, 7600, 7800, 4800 MHz, 6800, 6200, 7400, 6400, 6000, 5200, 5600, 7200, 5800, 5400 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 7800 MHz |
| Maximum internal memory per slot: | 64 GB |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Height: | 35 mm |
| Depth: | 244 mm |
| Width: | 244 mm |
| Bluetooth: | Yes |
| WLAN controller model: | Intel Wi-Fi 6E AX210 |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11 ac, 802.11g, 802.11 ax, Wi-Fi 5 (802.11ac), 802.11n |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Thunderbolt headers: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 4 |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| CPU fan connector: | Yes |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| Number of RGB LED pin headers: | 4 |
| Number of EPS power connectors (8-pin): | 1 |
| Number of CPU fan connectors: | 1 |
| TPM connector: | Yes |
| Front panel connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| BIOS type: | UEFI AMI |
| Desktop Management Interface (DMI) version: | 2.7 |
| Clear CMOS jumper: | Yes |
| Package weight: | 1.75 kg |
| Package height: | 68 mm |
| Package width: | 270 mm |
| Package depth: | 268 mm |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10, 5 |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 4 |
| S/PDIF out port: | Yes |
| DisplayPort version: | 1.2 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| WiFi-AP antenna jack: | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Line-in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Headphone outputs: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| HDMI ports quantity: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Battery type: | CR2032 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Weight: | 1.33 kg |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
