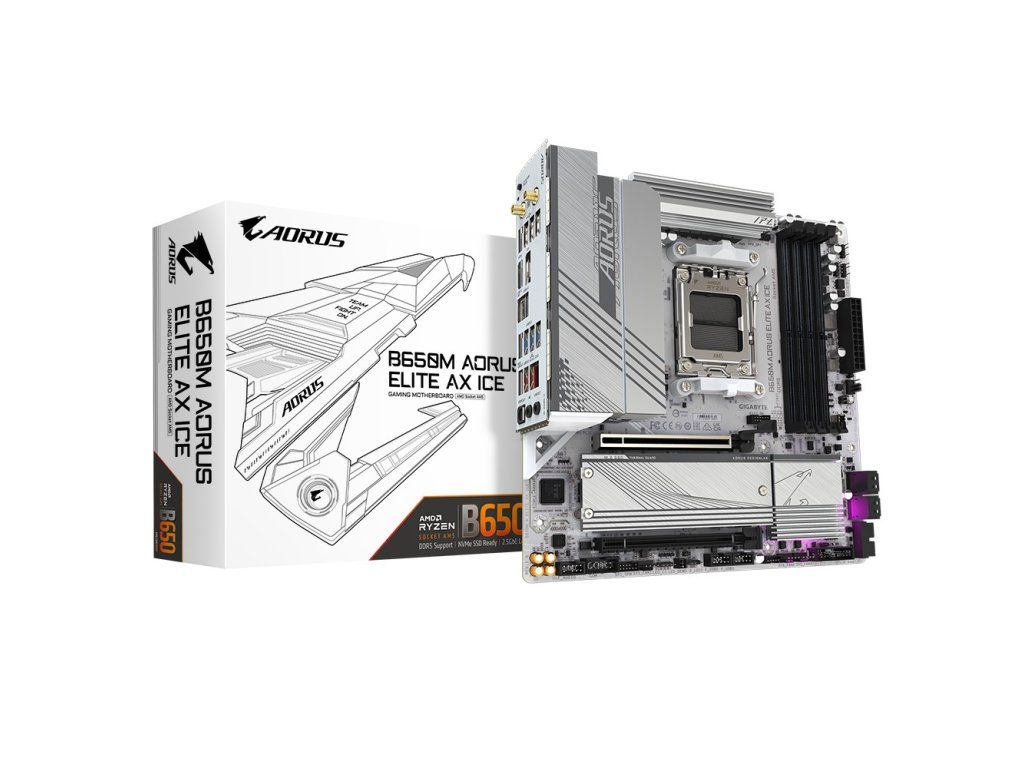

GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.72 kg |
| EAN: | 4719331859336 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| DirectX version: | 12.0 |
| Maximum resolution: | 4096 x 2304 pixels |
| Audio output channels: | 7.1 channels |
| PC health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Product colour: | White |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset: | AMD B650 |
| Power source type: | ATX |
| Motherboard form factor: | micro ATX |
| Supported memory clock speeds: | 4400, 5200, 6600, 6000, 6800, 7600 MHz, 7800, 6200, 6666, 4800, 5600, 7200 MHz, 6400 MHz, 7000 MHz, 8000 MHz |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Maximum internal memory per slot: | 64 GB |
| Width: | 244 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| Bluetooth: | Yes |
| LAN controller: | Realtek RTL8125 |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| WLAN controller model: | Realtek RTL8852CE |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.3 |
| Serial port headers: | 1 |
| USB 2.0 connectors: | 2 |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of chassis fan connectors: | 4 |
| TPM connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of water pump connectors: | 2 |
| RGB LED pin header: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Number of CPU fan connectors: | 2 |
| Number of RGB LED pin headers: | 5 |
| 12V power connector: | Yes |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package weight: | 1.89 kg |
| Package depth: | 268 mm |
| Package width: | 270 mm |
| Package height: | 68 mm |
| Batteries included: | Yes |
| Screws included: | Yes |
| Antenna included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| RAID levels: | 1, 0, 10 |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| DisplayPort version: | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Headphone outputs: | 1 |
| WiFi-AP antenna jack: | 2 |
| DisplayPorts quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| S/PDIF out port: | Yes |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| HDMI version: | 2.1 |
| Digital audio optical out: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 5 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| 1st M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 25110 |
| Battery weight: | 3 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Number of battery cells: | 1 |
| Lithium weight per battery: | 0.07 g |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
