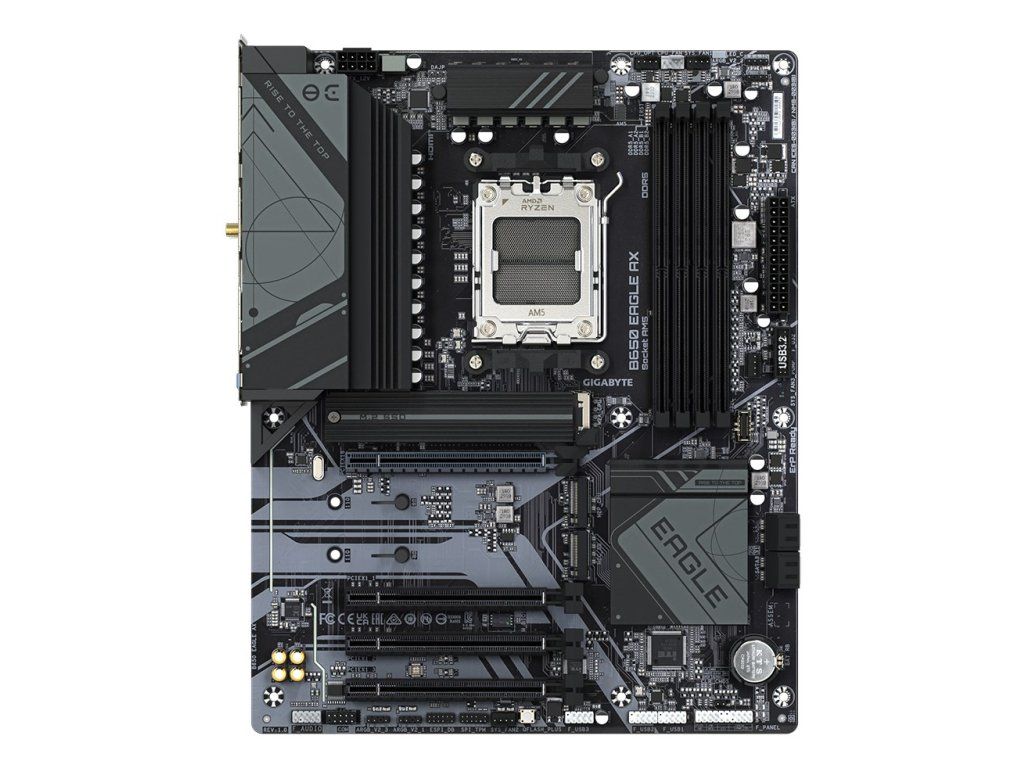

GIGABYTE B650 EAGLE AX Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 7600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, GbE LAN, WIFI 6E, USB 3.2 Gen 2
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.74 kg |
| EAN: | 4719331860158 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Maximum resolution: | 4096 x 2160 pixels |
| HDCP: | Yes |
| Parallel processing technology support: | Not supported |
| DirectX version: | 12.0 |
| Audio output channels: | 7.1 channels |
| Product colour: | Bronze |
| Audio chip: | Realtek ALC897 |
| Motherboard form factor: | ATX |
| PC health monitoring: | Voltage, Fan, Temperature, Water cooling |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Supported memory clock speeds: | 6600, 6000, 4400, 6200, 7600 MHz, 5600, 7200 MHz, 5200, 6800, 7000 MHz, 6400 MHz, 4800 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speed (max): | 7600 MHz |
| Maximum internal memory per slot: | 64 GB |
| Height: | 35 mm |
| Width: | 305 mm |
| Depth: | 244 mm |
| Bluetooth: | Yes |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi standards: | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | Gigabit Ethernet |
| WLAN controller model: | Realtek RTL8852CE |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Serial port headers: | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| USB 2.0 connectors: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| 12V power connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| TPM connector: | Yes |
| RGB LED pin header: | Yes |
| Number of water pump connectors: | 2 |
| Number of RGB LED pin headers: | 4 |
| Number of CPU fan connectors: | 2 |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Package weight: | 1.94 kg |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package width: | 335 mm |
| Screws included: | Yes |
| Antenna included: | Yes |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| RAID levels: | 1, 10, 0 |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 6 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Line-in: | Yes |
| PS/2 ports quantity: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 3 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 22110 |
| 1st M.2 largest key size: | 25110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 22110 |
| Number of battery cells: | 1 |
| Battery weight: | 3 g |
| Battery type: | CR2032 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery: | 0.07 g |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
