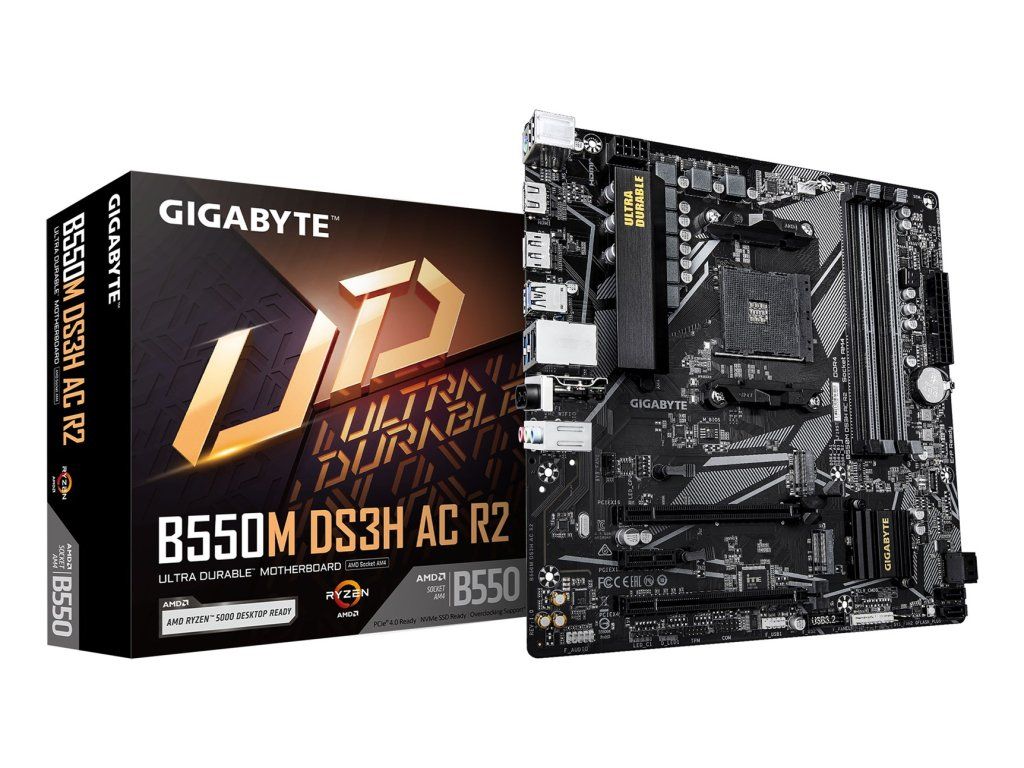

GIGABYTE B550M DS3H AC R2 Motherboard - AMD Ryzen 5000 CPUs, 5+3 Phases VRM, up to 4733MHz DDR4 (O.C.), 1xPCIe 4.0 + 1xPCIe 3.0 M.2, Wi-Fi 5, 1GbE LAN, USB 3.2 Gen 1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 0.95 kg |
| EAN: | 4719331869908 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | Socket AM4 |
| Processor socket: | Socket AM4 |
| Compatible processor series: | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series |
| Processor manufacturer: | AMD |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Maximum resolution: | 5120 x 2880 pixels |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Audio output channels: | 7.1 channels |
| PC health monitoring: | Temperature, Fan, Voltage |
| Motherboard form factor: | micro ATX |
| Audio chip: | Realtek ALC1220-VB |
| Motherboard chipset: | AMD B550 |
| Product colour: | Dark brown |
| Motherboard chipset family: | AMD |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Cooling type: | Passive |
| Supported memory clock speeds: | 2133, 4600, 3400, 3866, 3200 MHz, 4266, 4133, 4000, 2667, 3733, 4400 MHz, 3466, 2933, 3600, 4733, 2400 |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| Supported memory clock speed (max): | 4733 MHz |
| Maximum internal memory per slot: | 32 GB |
| ECC сompatibility: | ECC & Non-ECC |
| Depth: | 244 mm |
| Height: | 35 mm |
| Width: | 244 mm |
| LAN controller: | Realtek RTL8111H |
| Bluetooth: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.0 |
| WLAN controller model: | Realtek RTL8821CE |
| Top Wi-Fi standard: | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards: | 802.11a, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g |
| Wi-Fi: | Yes |
| USB 2.0 connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 2 |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Serial port headers: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| RGB LED pin header: | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| Number of RGB LED pin headers: | 5 |
| Number of CPU fan connectors: | 1 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| BIOS type: | UEFI AMI |
| Package height: | 68 mm |
| Package depth: | 268 mm |
| Package weight: | 1.07 kg |
| Package width: | 270 mm |
| Screws included: | Yes |
| Batteries included: | Yes |
| Antenna included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 6 |
| RAID levels: | 10, 1, 0 |
| RAID support: | Yes |
| Number of HDDs supported: | 4 |
| DisplayPorts quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| WiFi-AP antenna jack: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 2 |
| Line-in: | Yes |
| PS/2 ports quantity: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| 2nd M.2 highest PCI Express generation: | 3.0 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| Battery weight: | 3 g |
| Battery type: | CR2032 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells: | 1 |
| Lithium weight per battery: | 0.07 g |
| Weight: | 980 g |
| Products per shipping (inner) case: | 1 pc(s) |
