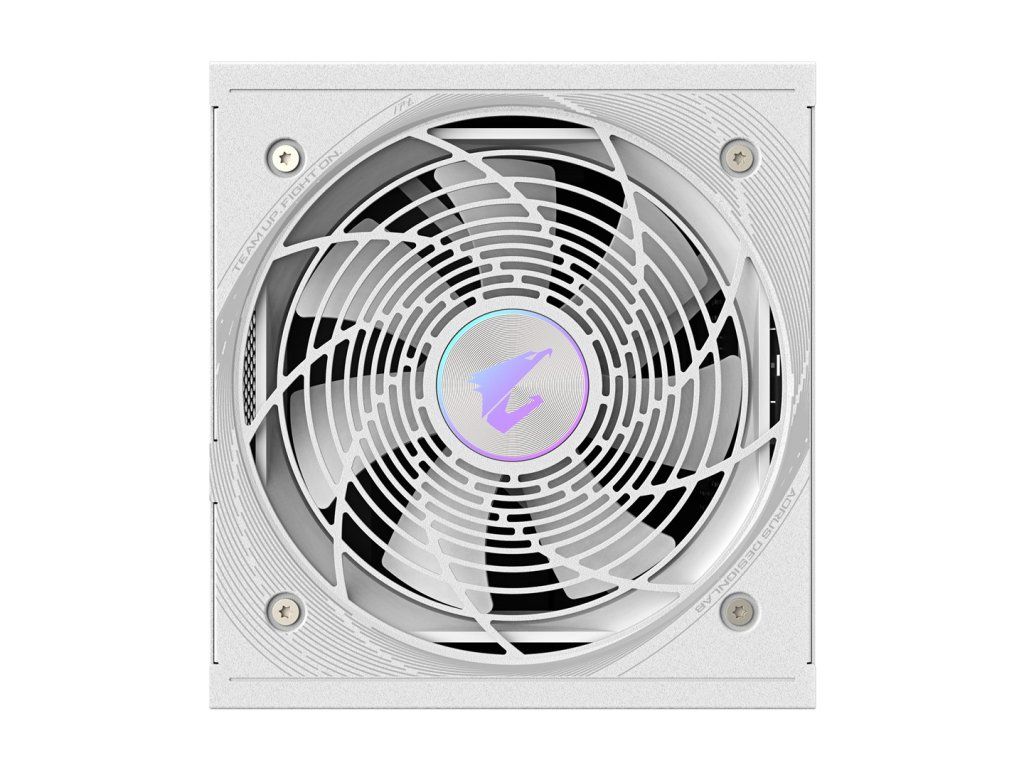

GIGABYTE AORUS ELITE P850W ICE Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 3.15 kg |
| EAN: | 4719331554392 |
| Warranty period: | 10 year(s) |
| Cooling type: | Active |
| Product colour: | White |
| On/off switch: | Yes |
| Fan location: | Top |
| Fan diameter: | 12 cm |
| Number of fans: | 1 fan(s) |
| AC input voltage: | 100 - 240 V |
| Input current: | 12 A |
| AC input frequency: | 50/60 Hz |
| Max output current (+5Vsb): | 3 A |
| Power Factor Correction (PFC) type: | Active |
| Efficiency: | 90% |
| Power protection features: | Under voltage, Over current, Overheating, Over power, Short circuit, Over voltage |
| Hold time: | 16 ms |
| Total power: | 850 W |
| Power Good signal delay range: | 100 - 150 ms |
| Max output current (-12V): | 0.3 A |
| Combined power (+12V): | 849.6 W |
| Combined power (+3.3V): | 125 W |
| Max output current (+5V): | 25 A |
| Combined power (+5Vsb): | 15 W |
| Combined power (+5V): | 125 W |
| Max output current (+3.3V): | 25 A |
| Weight: | 2.68 kg |
| Width: | 150 mm |
| Depth: | 140 mm |
| Height: | 86 mm |
| 80 PLUS certification: | 80 PLUS Platinum |
| Bearing technology: | Ball bearing |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.1 |
| Mean time between failures (MTBF): | 100000 h |
| Package height: | 120 mm |
| Package weight: | 3.31 kg |
| Package width: | 340 mm |
| Package type: | Box |
| Package depth: | 206 mm |
| Floppy disk drive connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 4 |
| Cabling type: | Fully-Modular |
| PCI Express power connectors (6+2 pin): | 6 |
| Motherboard power cable length: | 65 cm |
| Floppy drive power connector: | 2 |
| ATX power connector (20+4 pin): | Yes |
| Motherboard power connector: | 20+4 pin ATX |
| PCI Express connector: | Yes |
| Number of SATA power connectors: | 8 |
| CPU power connector (4+4 pin): | Yes |
