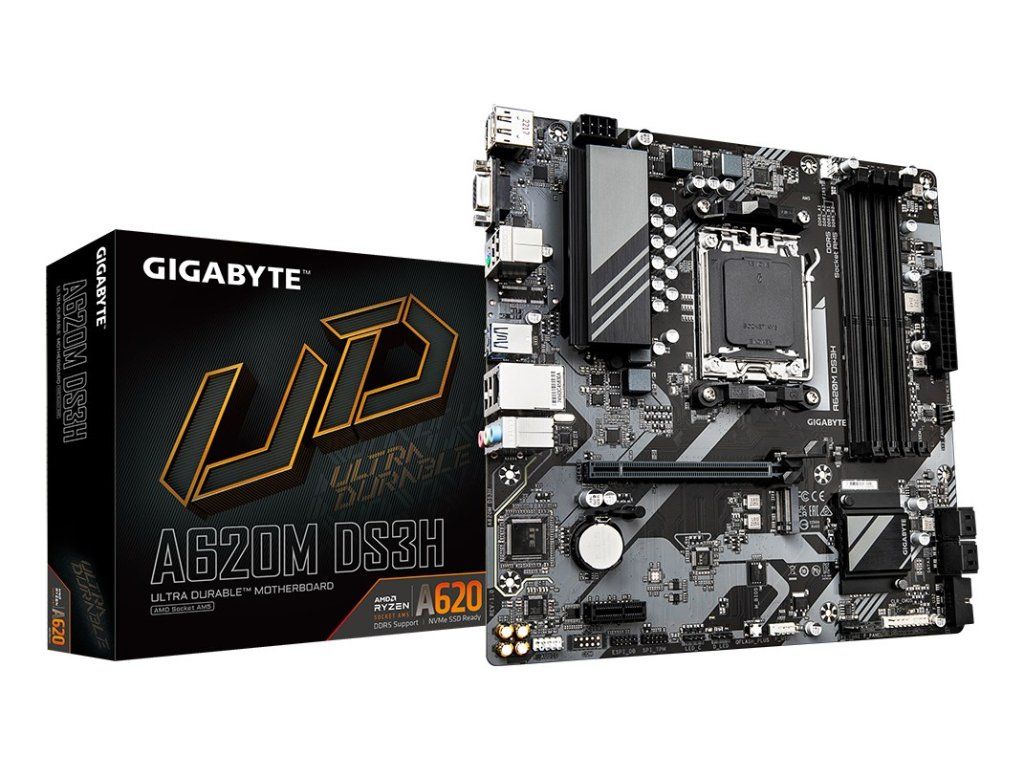

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 0.958 kg |
| EAN: | 4719331855567 |
| Warranty period: | 3 year(s) |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Maximum internal memory supported by processor: | 256 GB |
| HDCP version: | 2.3 |
| HDCP: | Yes |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family: | AMD |
| PC health monitoring: | Fan, Temperature, Voltage |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | AMD A620 |
| Supported memory clock speeds: | 7000, 6600, 5200, 6400, 4800 MHz, 6800, 6000, 6200, 5600, 7200, 7600 |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Supported memory clock speed (max): | 7600 MHz |
| ECC сompatibility: | Non-ECC |
| Width: | 244 mm |
| Depth: | 174 mm |
| Ethernet LAN data rates: | 100, 1000 Mbit/s, 10 |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| RGB LED pin header: | Yes |
| Total number of SATA connectors: | 4 |
| USB 2.0 connectors: | 1 |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 1, 10, 0 |
| Number of storage drives supported: | 4 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB connector type: | USB Type-A, USB Type-C |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone outputs: | 3 |
| Number of audio jack connectors: | 3 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| PCI Express x16 slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x1 slots: | 1 |
| Battery weight: | 3 g |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells: | 1 |
| Battery type: | CR2032 |
| Lithium weight per battery: | 0.07 g |
