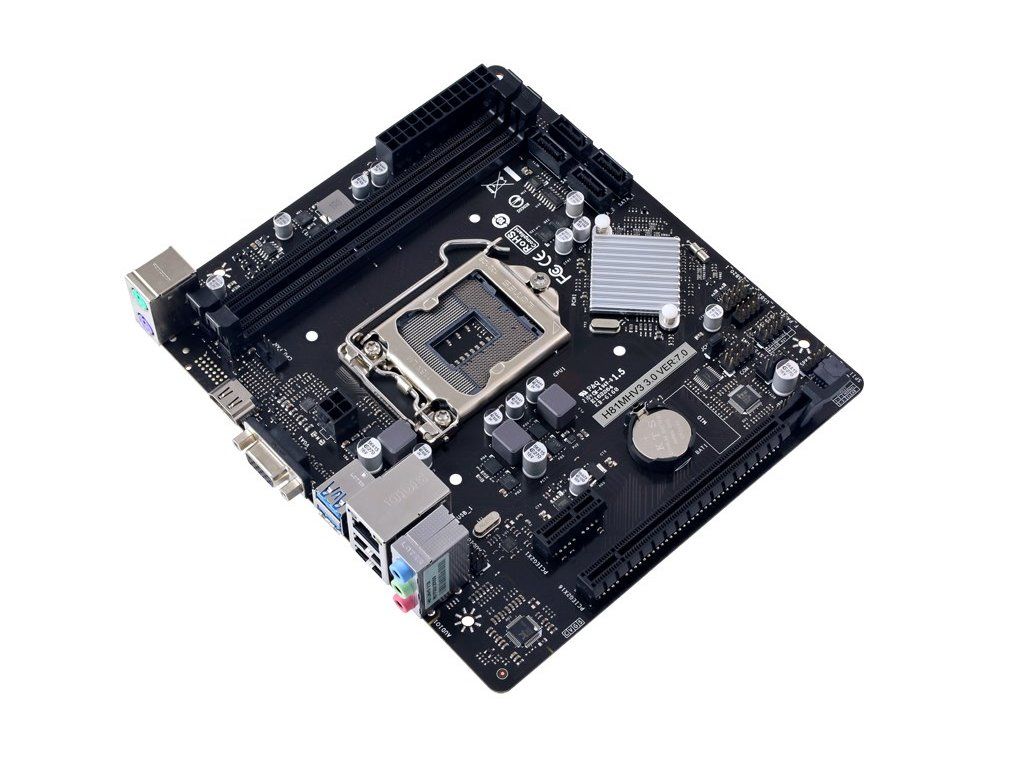

Biostar H81MHV3 3.0 H81 Intel® H81 LGA 1150 (Socket H3) micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1150 |
|---|---|
| Greutate: | 0.565 kg |
| EAN: | 4712960685598 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron® |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1150 (Socket H3) |
| DirectX version: | 11.1 |
| HDCP: | Yes |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Windows operating systems supported: | Windows 8.1, Windows 7, Windows 8, Windows 10 |
| Audio output channels: | 5.1 channels |
| Motherboard chipset: | Intel® H81 |
| Audio chip: | Realtek ALC887 |
| ECC сompatibility: | Non-ECC |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR3-SDRAM |
| Supported memory clock speeds: | 1600, 1066, 1333 MHz |
| Maximum internal memory: | 16 GB |
| Width: | 170 mm |
| Depth: | 190 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| CPU fan connector: | Yes |
| Front panel connector: | Yes |
| Number of SATA III connectors: | 2 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Number of SATA II connectors: | 2 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| USB 2.0 connectors: | 2 |
| Clear CMOS jumper: | Yes |
| Cables included: | SATA |
| Supported storage drive interfaces: | SATA II, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 2.0 ports quantity: | 2 |
| Headphone outputs: | 3 |
| PCI Express x1 (Gen 2.x) slots: | 1 |
| PCI Express x16 (Gen 2.x) slots: | 1 |
| Warnings: | Do not place on conductive surfaces or in areas of high humidity., Dispose of used toner cartridges according to local hazardous waste regulations., Do not tamper with the design of the board or its components, this risks damaging the equipment. |
