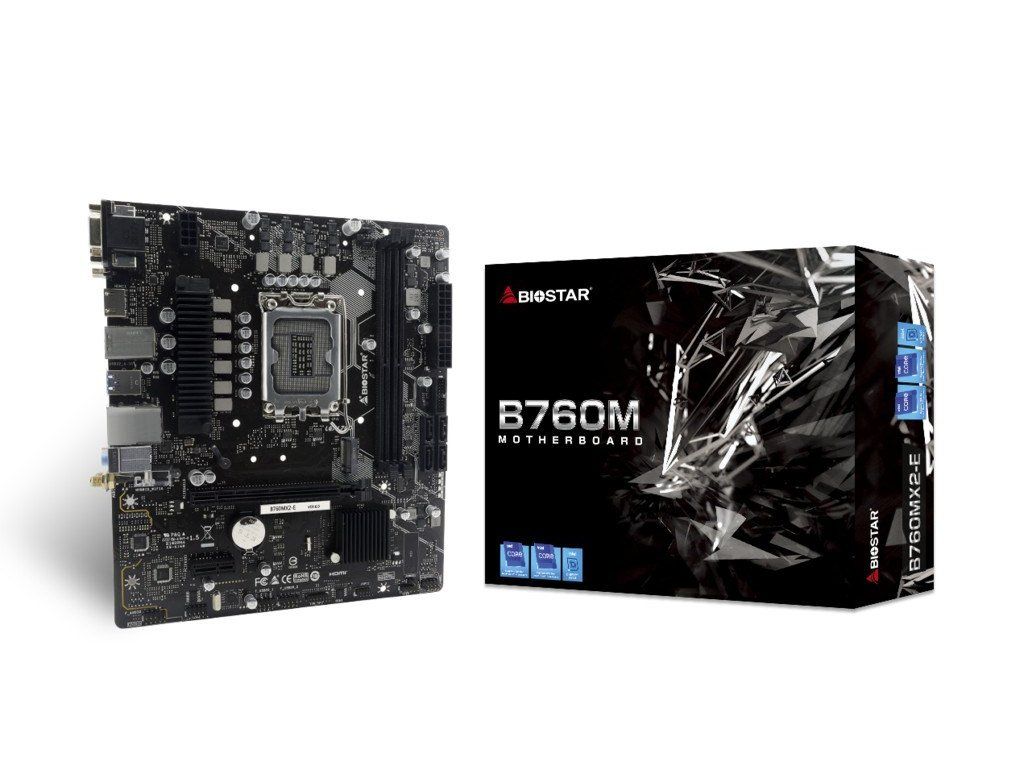

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.78 kg |
| EAN: | 4712960686892 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| Audio chip: | Realtek ALC897 |
| Power source type: | ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Cooling type: | Passive |
| Windows operating systems supported: | Yes |
| Motherboard chipset: | Intel B760 |
| Maximum internal memory: | 64 GB |
| Supported memory clock speeds: | 5600, 4800, 6000, 5200, 5400 |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5-SDRAM |
| Width: | 236 mm |
| Depth: | 208 mm |
| Yes (no WiFi card included): | Yes (no WiFi card included) |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| TPM connector: | Yes |
| Number of SATA III connectors: | 4 |
| Number of chassis fan connectors: | 1 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of M.2 (E) slots: | 1 |
| Number of COM connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Set contents: | WiFi antenna accessories |
| Cables included: | SATA |
| Drivers included: | Yes |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Number of Wi-Fi antenna ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| DVI ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| Audio ports quantity: | 3 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PCI Express x4 (Gen 4.x) slots: | 1 |
