be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 3.36 kg |
| EAN: | 4260052191385 |
| Sustainability certificates: | ENERGY STAR, ErP, Triman |
| Product colour: | Black |
| Cooling type: | Active |
| Illumination: | No |
| On/off switch: | Yes |
| Fan diameter: | 14 cm |
| Number of fans: | 1 fan(s) |
| Efficiency: | 92.6% |
| Power protection features: | Under voltage, Over current, Over power, Overheating, Surge & inrush, Short circuit, Over voltage |
| AC input frequency: | 50/60 Hz |
| Power factor: | 0.98 |
| AC input voltage: | 100 - 240 V |
| Total power: | 1000 W |
| Number of +12V rail(s): | 1 |
| Hold time: | 22.7 ms |
| Combined power (+5V): | 120 W |
| Max output current (+5V): | 20 A |
| Combined power (+5Vsb): | 15 W |
| Max output current (+3.3V): | 20 A |
| Max output current (+5Vsb): | 3 A |
| Combined power (-12V): | 6 W |
| Maximum input current (@110V): | 13 A |
| Peak power: | 1070 W |
| Max output current (-12V): | 0.5 A |
| Combined power (+3.3V): | 120 W |
| Maximum input current (@220V): | 6.5 A |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage relative humidity (H-H): | 0 - 95% |
| Operating relative humidity (H-H): | 0 - 85% |
| Depth: | 160 mm |
| Weight: | 2.82 kg |
| Width: | 150 mm |
| Height: | 86 mm |
| Noise level: | 27.2 dB |
| 80 PLUS certification: | 80 PLUS Platinum |
| Bearing technology: | Rifle |
| Mean time between failures (MTBF): | 100000 h |
| Power supply unit (PSU) form factor: | ATX |
| Purpose: | PC |
| EPS version: | 2.92 |
| ATX version: | 3.1 |
| Package weight: | 3.28 kg |
| Package height: | 102 mm |
| Package depth: | 328 mm |
| Package type: | Box |
| Package width: | 248 mm |
| Manual: | Yes |
| Manual languages: | Russian, French, Spanish, Ukrainian, Polish, German, English |
| Compliance certificates: | CCC, BSMI, Federal Communications Commission (FCC), CB, UKCA, RoHS, CE, WEEE, RCM, TÜV mark |
| Waste Electrical and Electronic Equipment (WEEE) compliance: | Yes |
| EPS power connector (8-pin): | Yes |
| Cabling type: | Fully-Modular |
| PCI Express power connectors (6+2 pin): | 3 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| PCI Express connector: | Yes |
| Number of SATA power connectors: | 7 |

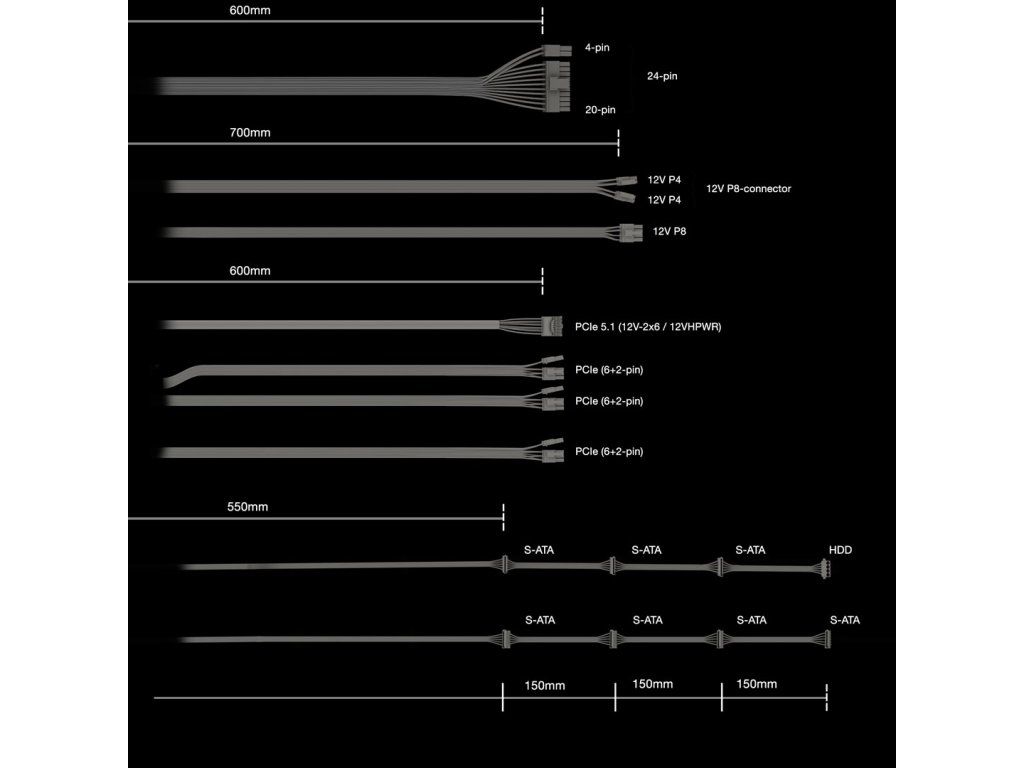

| Motherboard power cable length: | 60 cm |
| CPU P4 connector (4-pin): | 1 |
| Peripheral (Molex) power cable length: | 1000 |
| PCI Express power connectors (16-pin): | 1 |
| SATA power cable length: | 1000 mm, 550 mm, 700 mm, 850 mm |
| Motherboard power connector: | 20+4 pin ATX |
| CPU power cable length: | 70 cm |
| CPU power connector (4+4 pin): | Yes |
| PCI Express power cable length: | 60 cm |
| Screws included: | Yes |
| Cable ties included: | Yes |
| Products per shipping (inner) case: | 6 pc(s) |
| Shipping (inner) case length: | 65.1 cm |
| Shipping (inner) case gross weight: | 19.6 kg |
| Shipping (inner) case height: | 34.6 cm |
| Shipping (inner) case width: | 28.2 cm |
