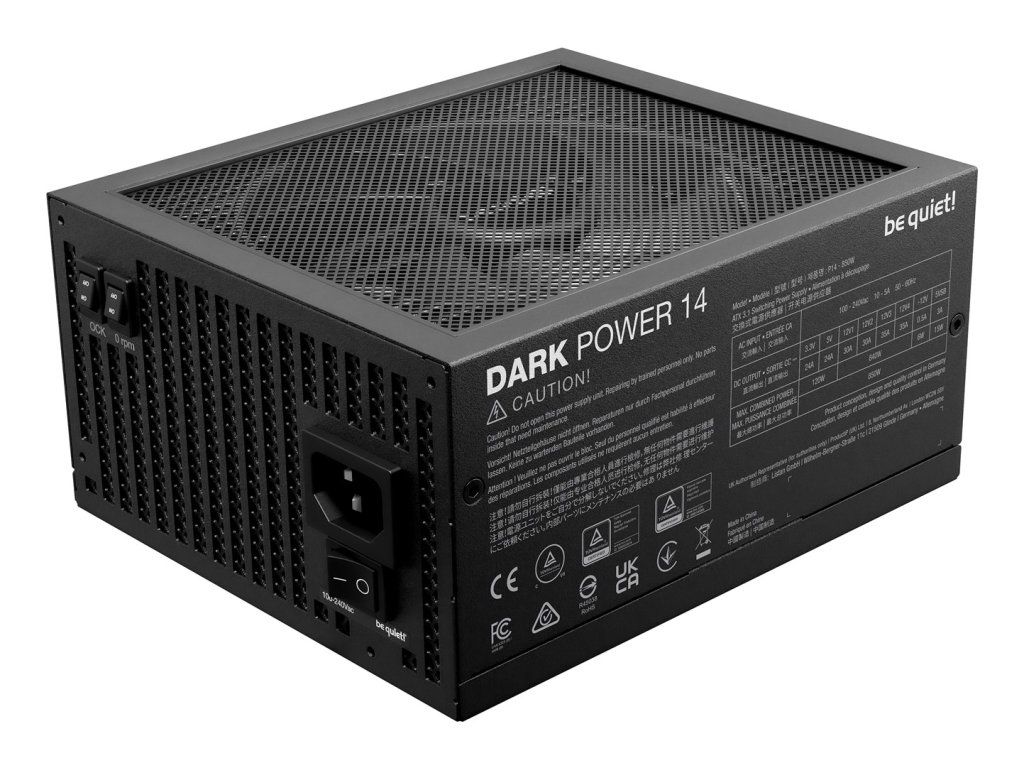

be quiet! Dark Power 14 850 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Power supplies for enclosures |
|---|---|
| Greutate: | 4.45 kg |
| EAN: | 4260052192016 |
| Sustainability certificates: | Triman, ENERGY STAR, ErP |
| Fan speed: | 0 - 2100 RPM |
| Product colour: | Black |
| Illumination: | No |
| Cooling type: | Active |
| On/off switch: | Yes |
| Fan diameter: | 13.5 cm |
| Number of fans: | 1 fan(s) |
| On/off fan switch: | Yes |
| Power protection features: | Surge & inrush protection (SIP), Overheating, Under voltage, Over current, Short circuit, Over voltage, Overload |
| Max output current (+3.3V): | 24 A |
| AC input frequency: | 50/60 Hz |
| Combined power (+5V): | 120 W |
| Hold time: | 20.7 ms |
| Combined power (+3.3V): | 120 W |
| Max output current (+5Vsb): | 3 A |
| Maximum input current (@110V): | 10 A |
| Max output current (+12V1): | 30 A |
| Max output current (+12V2): | 30 A |
| Combined power (+12V): | 850 W |
| Power factor: | 0.98 |
| AC input voltage: | 100 - 240 V |
| Max output current (+5V): | 24 A |
| Total power: | 850 W |
| Max output current (+12V3): | 35 A |
| Max output current (+12V4): | 35 A |
| Efficiency: | 93.8% |
| Number of +12V rail(s): | 4 |
| Peak power: | 950 W |
| Max output current (-12V): | 0.5 A |
| Maximum input current (@220V): | 5 A |
| Operating temperature (T-T): | 0 - 40 °C |
| Height: | 86 mm |
| Depth: | 175 mm |
| Weight: | 2.2 kg |
| Width: | 150 mm |
| Power supply unit (PSU) form factor: | ATX |
| Bearing technology: | FDB |
| EPS version: | 2.92 |
| Mean time between failures (MTBF): | 100000 h |
| Purpose: | PC |
| Noise level: | 16 dB |
| ATX version: | 3.1 |
| 80 PLUS certification: | 80 PLUS Titanium |
| Package weight: | 3.5 kg |
| Package height: | 355 mm |
| Manual: | Yes |
| Package width: | 230 mm |
| Package depth: | 126 mm |
| Manual languages: | French, Polish, English, German, Spanish, Italian, Thai, Russian, Simplified Chinese, Ukrainian, Japanese |
| Compliance certificates: | RoHS, Federal Communications Commission (FCC), cTUVus, UKCA, CB, WEEE, TÜV mark |
| EPS power connector (8-pin): | Yes |
| CPU power cable length: | 70 cm |
| SATA power cable length: | 1050 mm, 750, 600 mm, 900 |
| Peripheral (Molex) power cable length: | 900, 1050 mm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of SATA power connectors: | 13 |
| Peripheral (Molex) power connectors (4-pin): | 2 |
| PCI Express power connectors (6+2 pin): | 4 |
| Cabling type: | Fully-Modular |
| Motherboard power cable length: | 60 cm |
| ATX power connector (20+4 pin): | Yes |
| CPU power connector (4+4 pin): | Yes |
| PCI Express connector: | Yes |
| PCI Express power cable length: | 60 cm |
| Number of SATA power cables: | 4 |
| EPS power connector (4+4 pin): | Yes |
| PCI Express power connectors (12-pin): | 1 |
| Cable ties included: | Yes |
| Screws included: | Yes |
| Shipping (inner) case height: | 26 cm |
| Shipping (inner) case length: | 52.8 cm |
| Products per shipping (inner) case: | 4 pc(s) |
| Shipping (inner) case width: | 36.8 cm |
| Shipping (inner) case net weight: | 19.3 kg |
