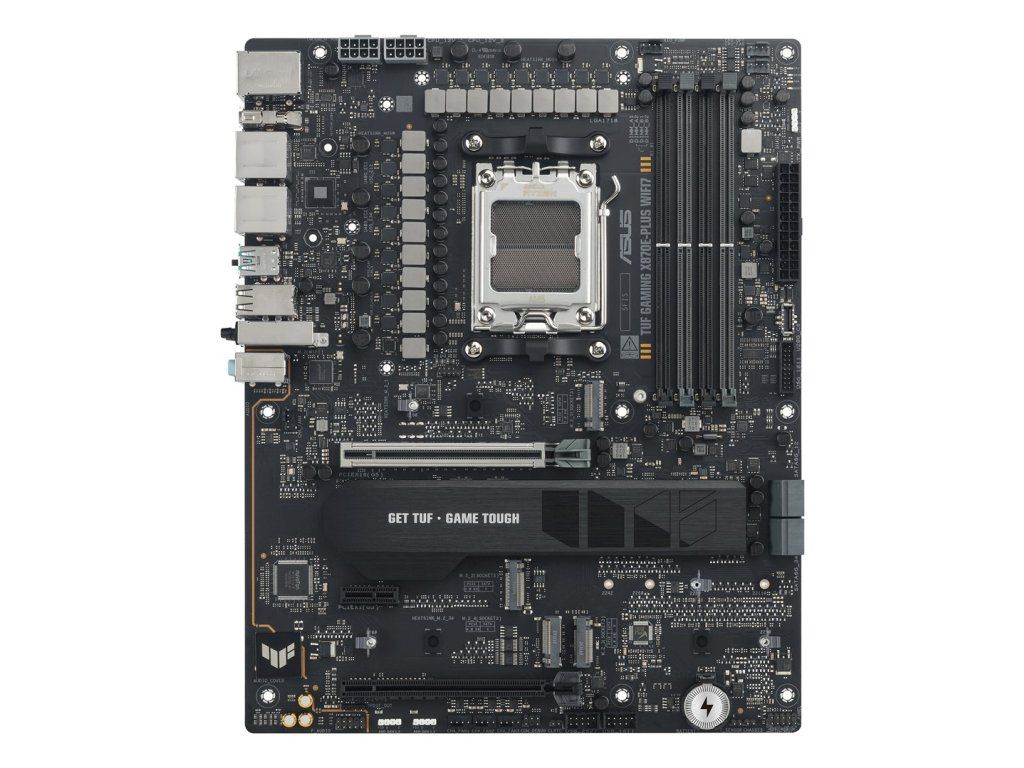

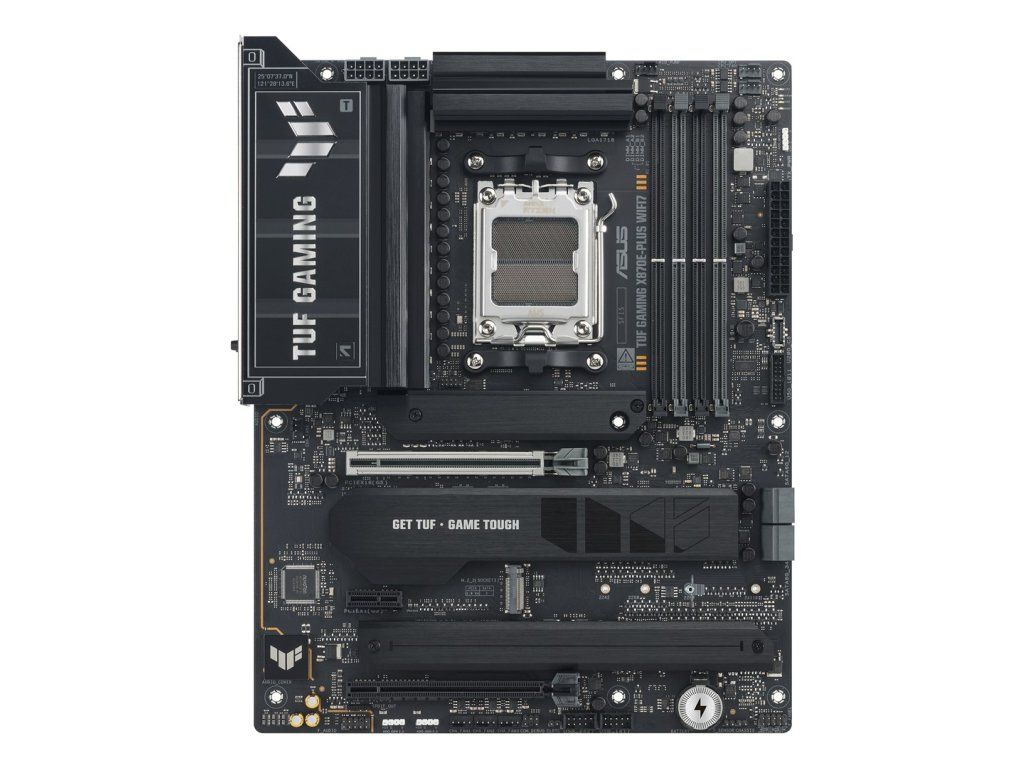

ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.245 kg |
| EAN: | 4711636100342 |
| Processor socket: | Socket AM5 |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Cooling type: | Passive |
| Power source type: | ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD X870E |
| Product colour: | Grey |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 11 |
| Supported memory clock speed (max): | 8000 MHz |
| Memory slots type: | DIMM |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Height: | 48 mm |
| Width: | 305 mm |
| Depth: | 244 mm |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Number of water pump connectors: | 1 |
| Number of CPU fan connectors: | 1 |
| Number of EPS power connectors (8-pin): | 2 |
| 12V power connector: | Yes |
| Number of temperature sensor headers: | 1 |
| Number of RGB LED pin headers: | 3 |
| RGB LED pin header: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| Number of chassis fan connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 2.08 kg |
| Package depth: | 273 mm |
| Package width: | 353 mm |
| Package height: | 68 mm |
| Antenna included: | Yes |
| Screws included: | Yes |
| Cables included: | SATA |
| Number of HDDs supported: | 4 |
| RAID levels: | 1, 0, 10, 5 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported: | 8 |
| Headphone outputs: | 1 |
| USB4 Gen 3x2 ports quantity: | 2 |
| Line-in: | Yes |
| WiFi-AP antenna jack: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| USB 2.0 ports quantity: | 4 |
| Microphone in: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| 1st M.2 largest key size: | 2280 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| 4th M.2 largest key size: | 2280 |
| 3rd M.2 largest key size: | 2280 |
| 2nd M.2 largest key size: | 22110 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| Quick installation guide: | Yes |
| Weight: | 1.56 kg |
