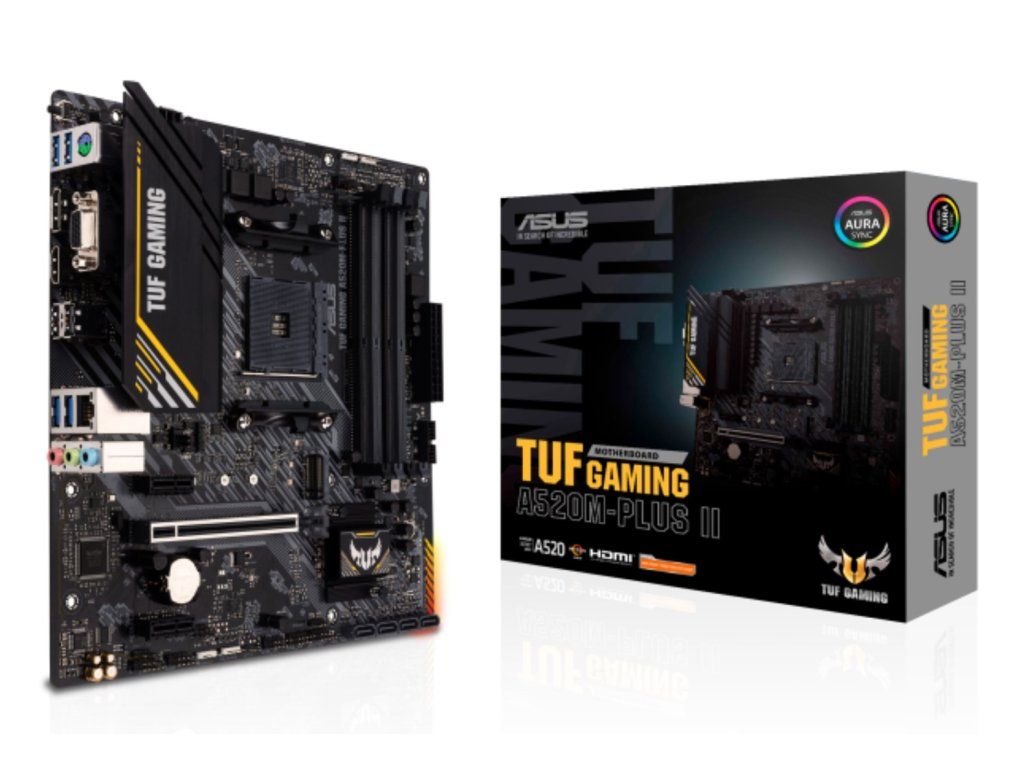

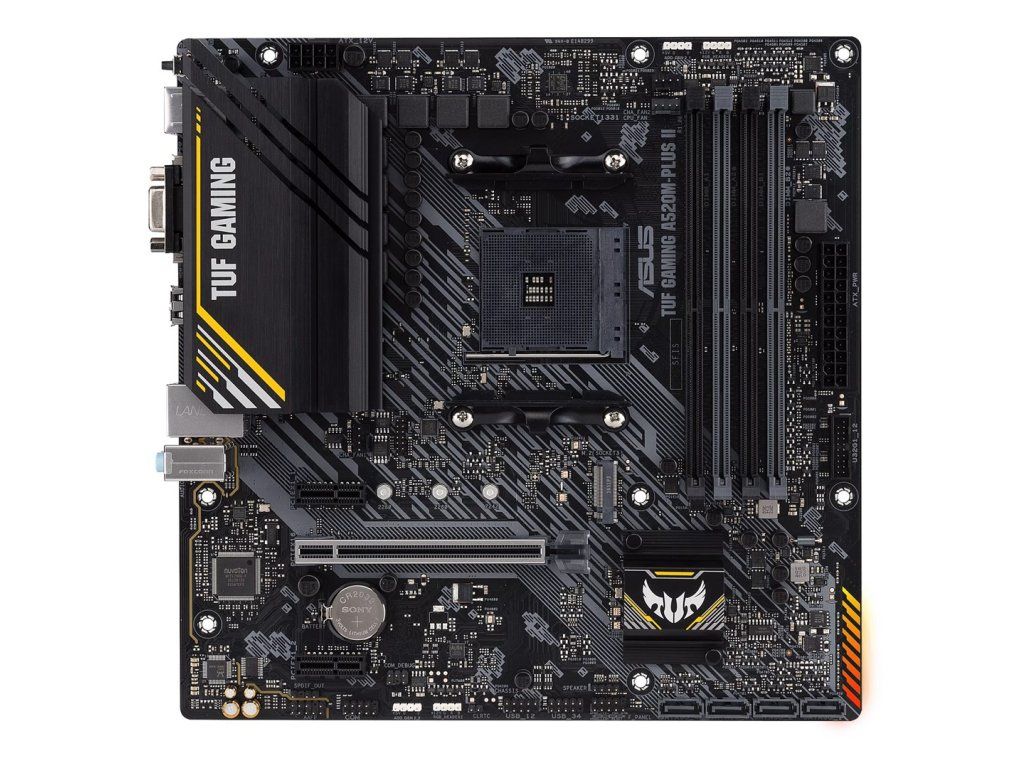

ASUS TUF GAMING A520M-PLUS II AMD A520 Socket AM4 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM4 |
|---|---|
| Greutate: | 1.17 kg |
| EAN: | 4711081154457 |
| Supported processor sockets: | Socket AM4 |
| Compatible processor series: | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Maximum resolution: | 3840 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Audio chip: | Realtek ALC887 / Realtek ALC897 |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64 |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | AMD A520 |
| ECC сompatibility: | ECC |
| Supported memory clock speeds: | 3866, 2400, 2800, 3200, 2666, 3000, 3733, 4400 MHz, 4600, 4133, 4000, 4266 MHz, 3466, 4800 MHz, 3333, 4466, 3600, 2133 MHz |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Dual-channel |
| Wake-on-LAN ready: | Yes |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Number of M.2 (M) slots: | 1 |
| Number of chassis fan connectors: | 2 |
| Number of COM connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| S/PDIF out connector: | Yes |
| USB 2.0 connectors: | 2 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| BIOS type: | UEFI AMI |
| Clear CMOS jumper: | Yes |
| Drivers included: | Yes |
| Cables included: | SATA |
| Supported storage drive interfaces: | M.2, PCI Express 3.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 0, 10, 1 |
| Number of storage drives supported: | 5 |
| Number of audio jack connectors: | 3 |
| DisplayPorts quantity: | 1 |
| USB connector type: | USB Type-A |
| DisplayPort version: | 1.2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| HDMI version: | 2.1 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| PS/2 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Warnings: | Store away from water and sources of moisture., Avoid direct contact with sensitive electronic components., Dispose of according to local electro-waste regulations. |
