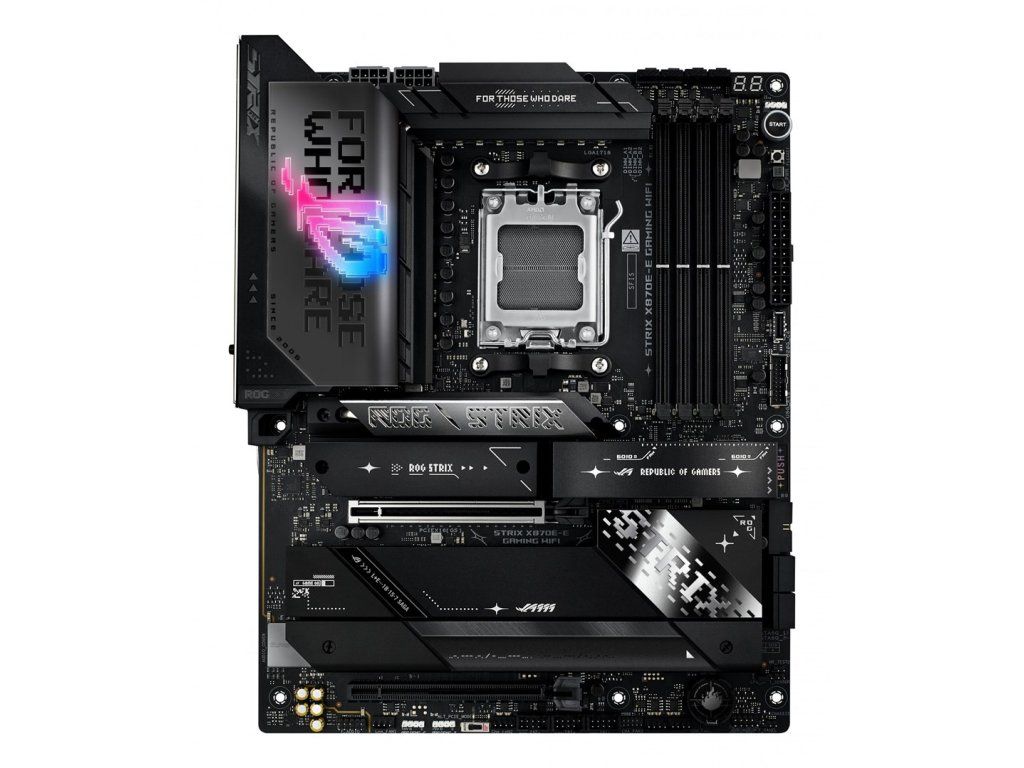

ASUS ROG STRIX X870E-E GAMING WIFI AMD X870E Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.872 kg |
| EAN: | 4711387724163 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Product colour: | Black |
| Audio chip: | Realtek ALC4080 |
| Motherboard chipset family: | AMD |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | ATX |
| Windows operating systems supported: | Windows 11 x64 |
| Motherboard chipset: | AMD X870E |
| Memory slots type: | DIMM |
| ECC сompatibility: | ECC & Non-ECC |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Supported memory types: | DDR5-SDRAM |
| Maximum internal memory: | 192 GB |
| Unbuffered memory: | Yes |
| Width: | 305 mm |
| Height: | 50 mm |
| Depth: | 244 mm |
| Bluetooth version: | 5.4 |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi: | Yes |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Bluetooth: | Yes |
| 12V power connector: | Yes |
| USB 3.2 Gen 2x2 connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 3 |
| Number of chassis fan connectors: | 5 |
| CPU fan connector: | Yes |
| BIOS type: | UEFI AMI |
| Clear CMOS button: | Yes |
| Package height: | 87 mm |
| Package weight: | 3.02 kg |
| Package depth: | 281 mm |
| Package width: | 365 mm |
| Cables included: | SATA |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 9 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 10, 0, 1, 5 |

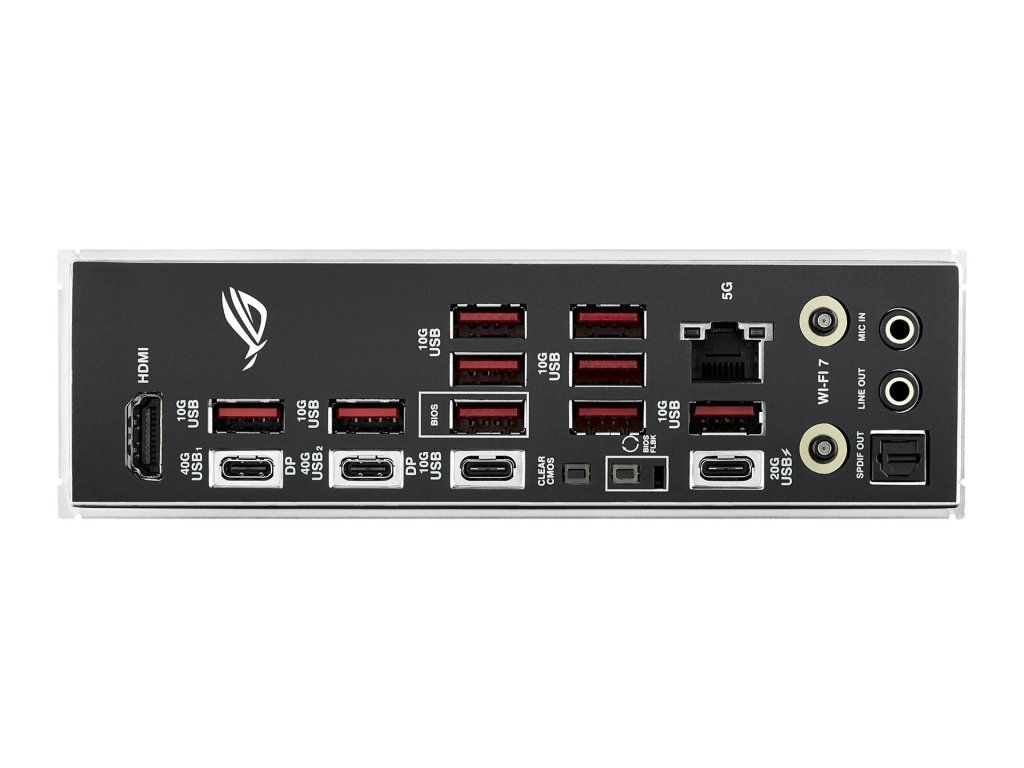

| WiFi-AP antenna jack: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB4 Gen 2x2 ports quantity: | 2 |
| Headphone outputs: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 9 |
| HDMI ports quantity: | 1 |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| S/PDIF out port: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 5 |
| Weight: | 2.06 kg |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
