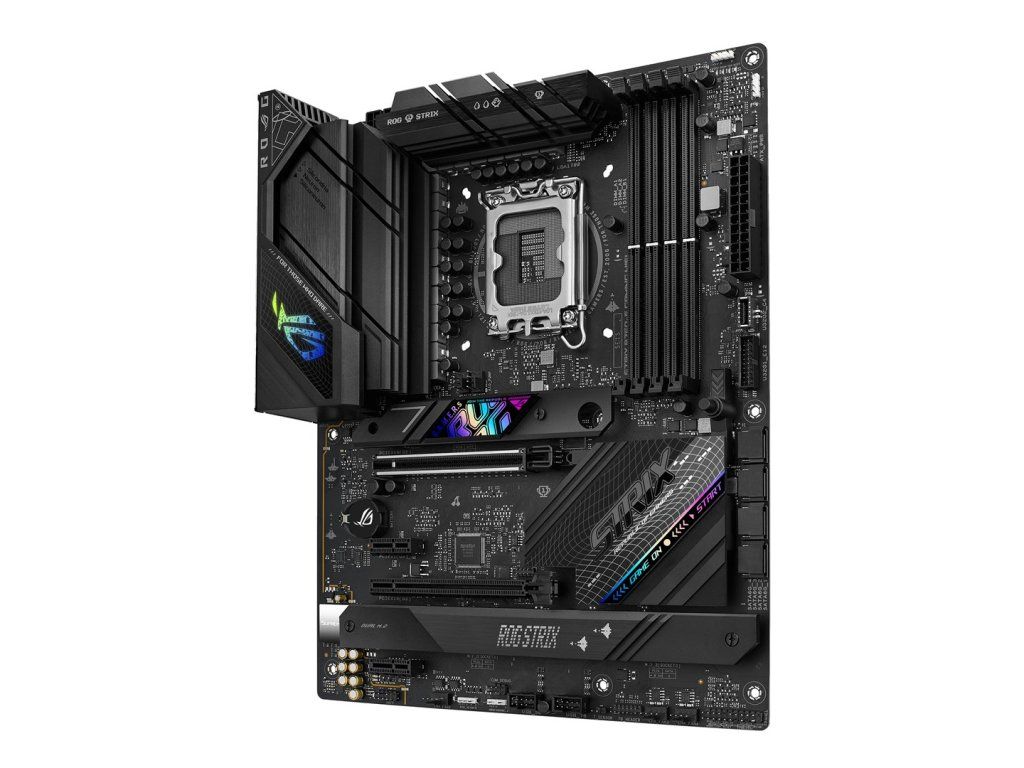

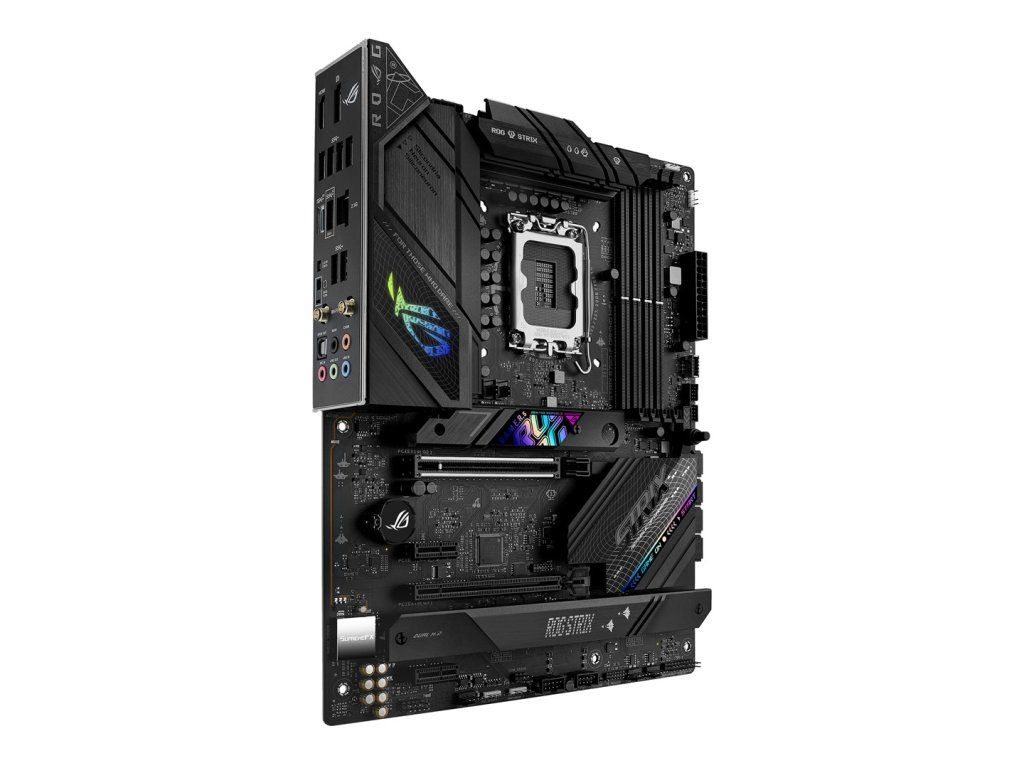

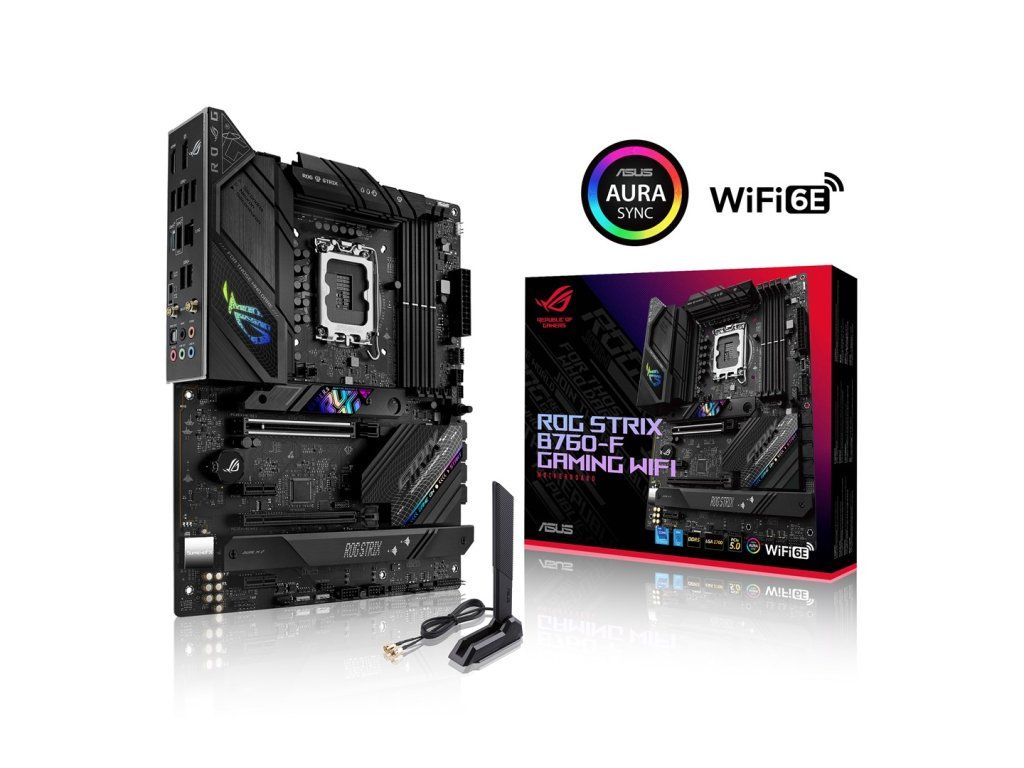

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 2.1 kg |
| EAN: | 4711081974666 |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Maximum number of SMP processors: | 1 |
| Processor socket: | LGA 1700 |
| Supported processor sockets: | LGA 1700 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Cooling type: | Passive |
| Power source type: | ATX |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Motherboard chipset: | Intel B760 |
| Audio chip: | Realtek ALC4080 |
| Product colour: | Black |
| Audio output channels: | 7.1 channels |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| ECC сompatibility: | Non-ECC |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 7800 MHz |
| Supported memory clock speeds: | 6200, 6800, 6600, 6400, 5000, 5800, 5400, 6000, 5600, 5200, 7000, 4800, 7800 |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 192 GB |
| Width: | 305 mm |
| Depth: | 244 mm |
| Ethernet LAN: | Yes |
| Wi-Fi standards: | 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11b |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Bluetooth version: | 5.3 |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth: | Yes |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Front panel connector: | Yes |
| CPU fan connector: | Yes |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of chassis fan connectors: | 4 |
| USB 2.0 connectors: | 2 |
| Thunderbolt headers: | 1 |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Package width: | 280 mm |
| Package weight: | 1.27 kg |
| Package depth: | 71 mm |
| Package height: | 265 mm |
| Cables included: | SATA |
| User guide: | Yes |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 7 |
| RAID support: | Yes |
| RAID levels: | 1, 0, 10, 5 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| WiFi-AP antenna jack: | 2 |
| Microphone in: | Yes |
| Line-in: | Yes |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 6 |
| HDMI version: | 2.1 |
| DisplayPort version: | 1.4 |
| DisplayPorts quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| S/PDIF out port: | Yes |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Back-to-BIOS button: | Yes |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
