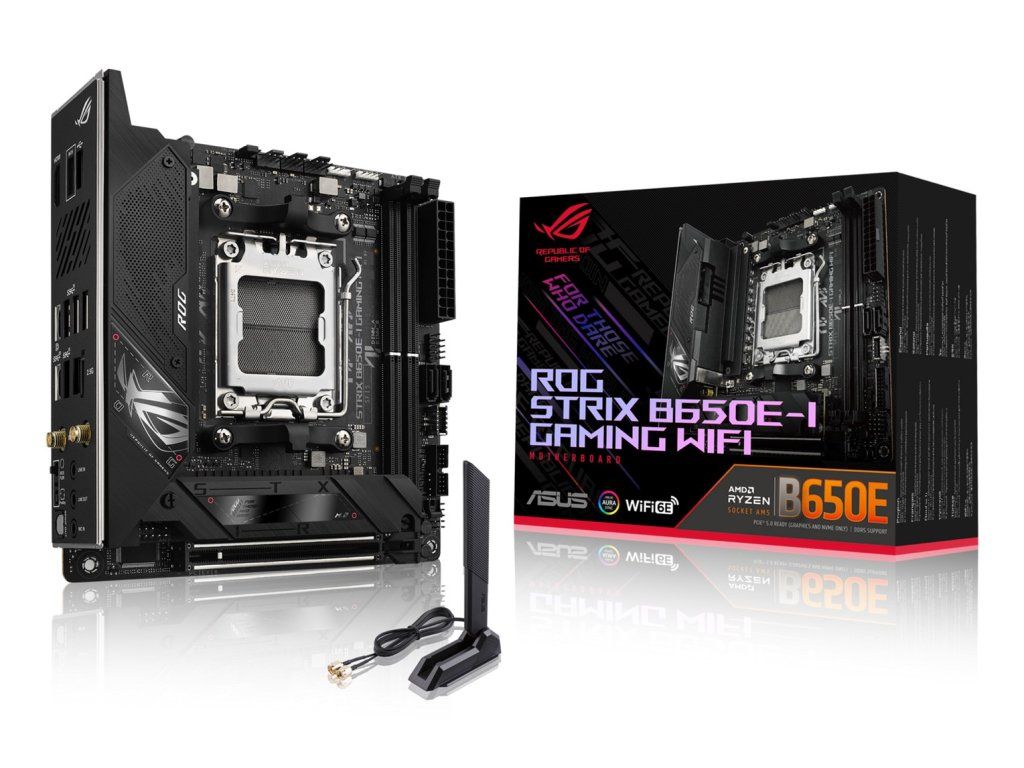

ASUS ROG STRIX B650E-I GAMING WIFI AMD B650 Socket AM5 mini ITX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.3 kg |
| EAN: | 4711081957881 |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen™ 7 |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Motherboard chipset: | AMD B650 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | mini ITX |
| Motherboard chipset family: | AMD |
| Product colour: | Black |
| Audio chip: | Realtek ALC4080 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Supported memory clock speeds: | 5200, 5800, 4800 MHz, 5000, 5400, 6200, 6400, 6000, 5600 MHz |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Maximum internal memory: | 64 GB |
| Number of memory slots: | 2 |
| ECC сompatibility: | ECC & Non-ECC |
| Width: | 170 mm |
| Depth: | 170 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.2 |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of chassis fan connectors: | 1 |
| CPU fan connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| Audio connector: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 8.58 kg |
| Package height: | 92 mm |
| Package width: | 222 mm |
| Package depth: | 182 mm |
| Cables included: | SATA, USB |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| RAID levels: | 0, 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| S/PDIF out port: | Yes |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| USB 2.0 ports quantity: | 2 |
| Headphone outputs: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Warnings: | Dispose of in accordance with local regulations for electronic waste., Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty. |
