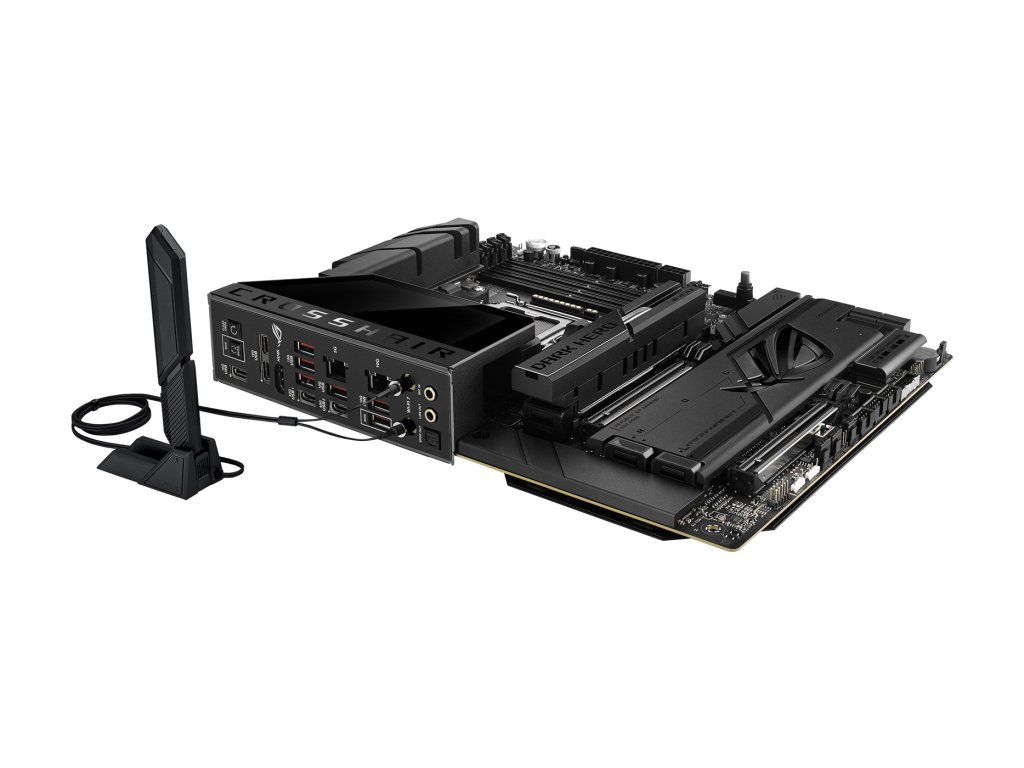

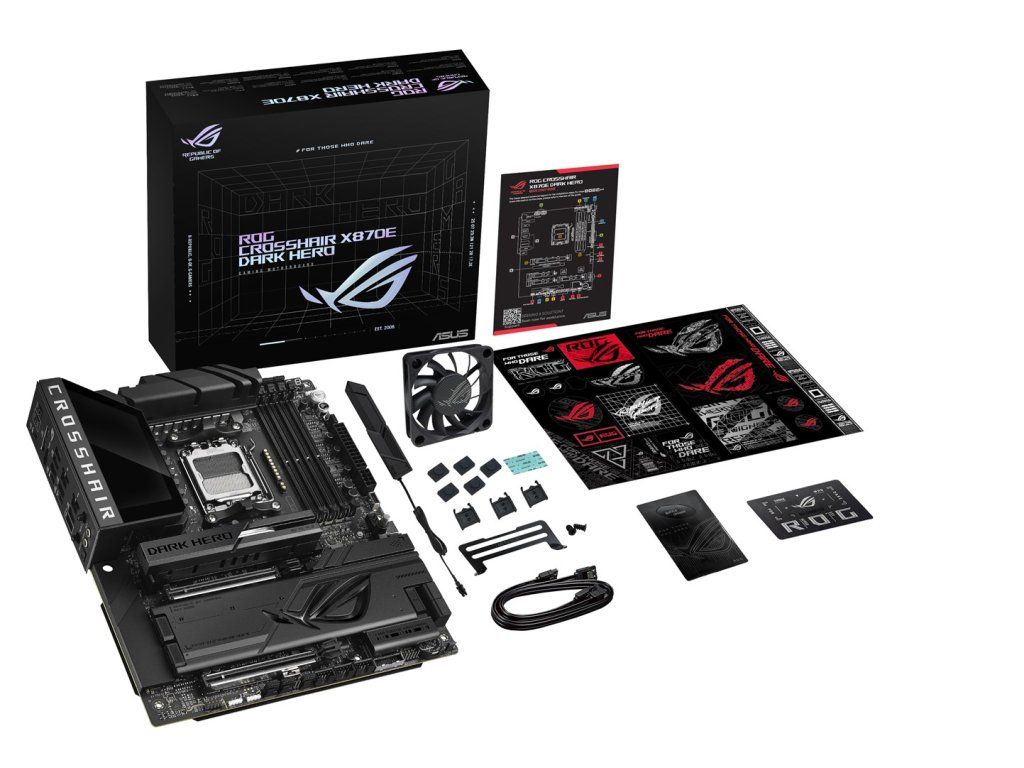

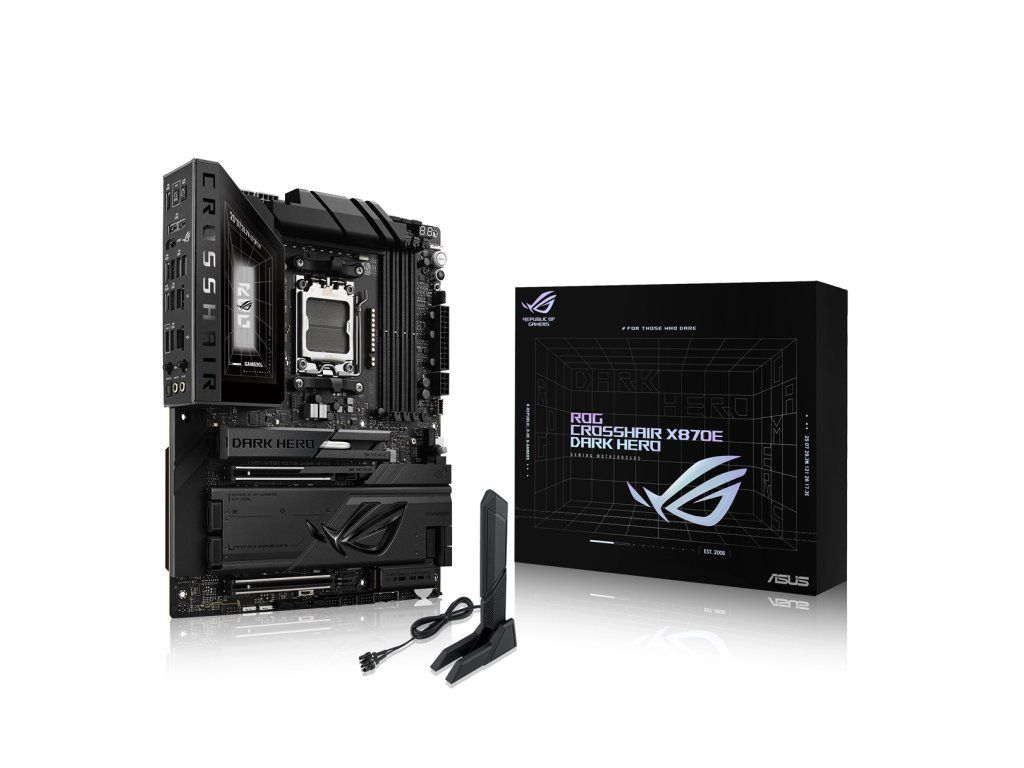

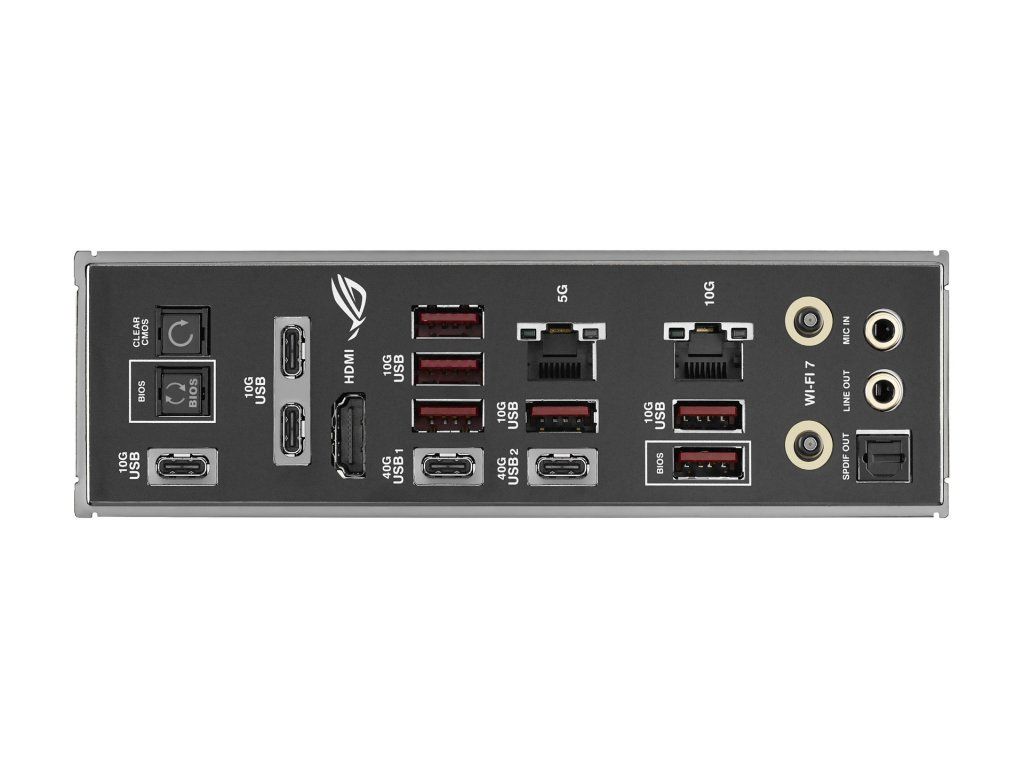

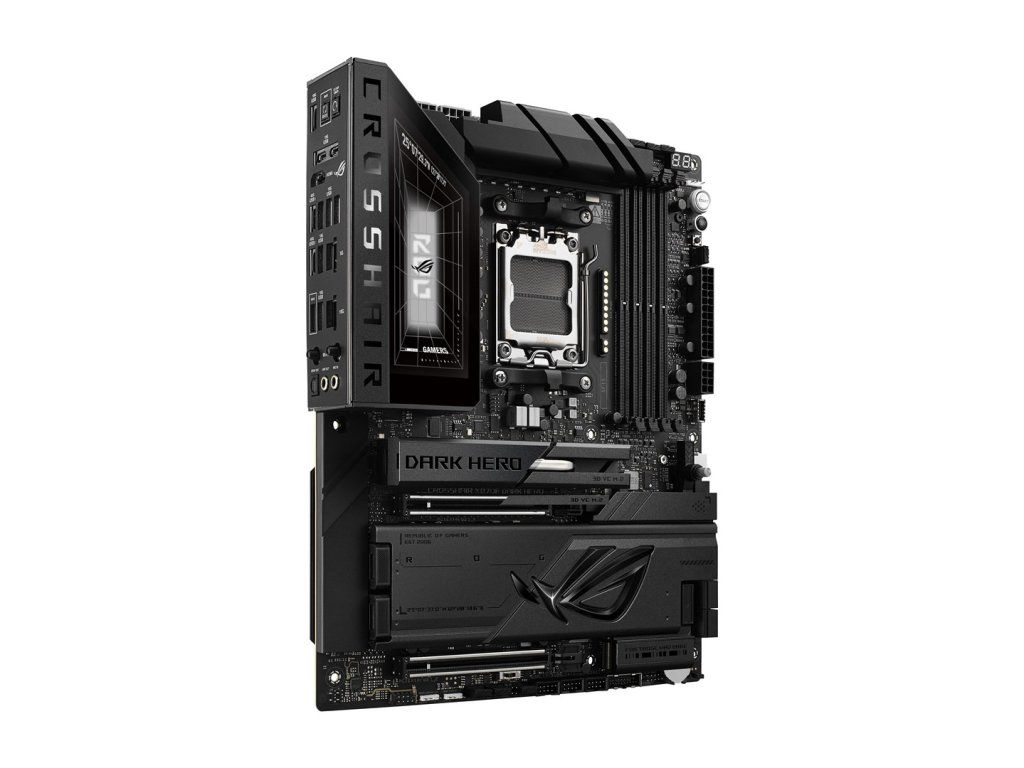

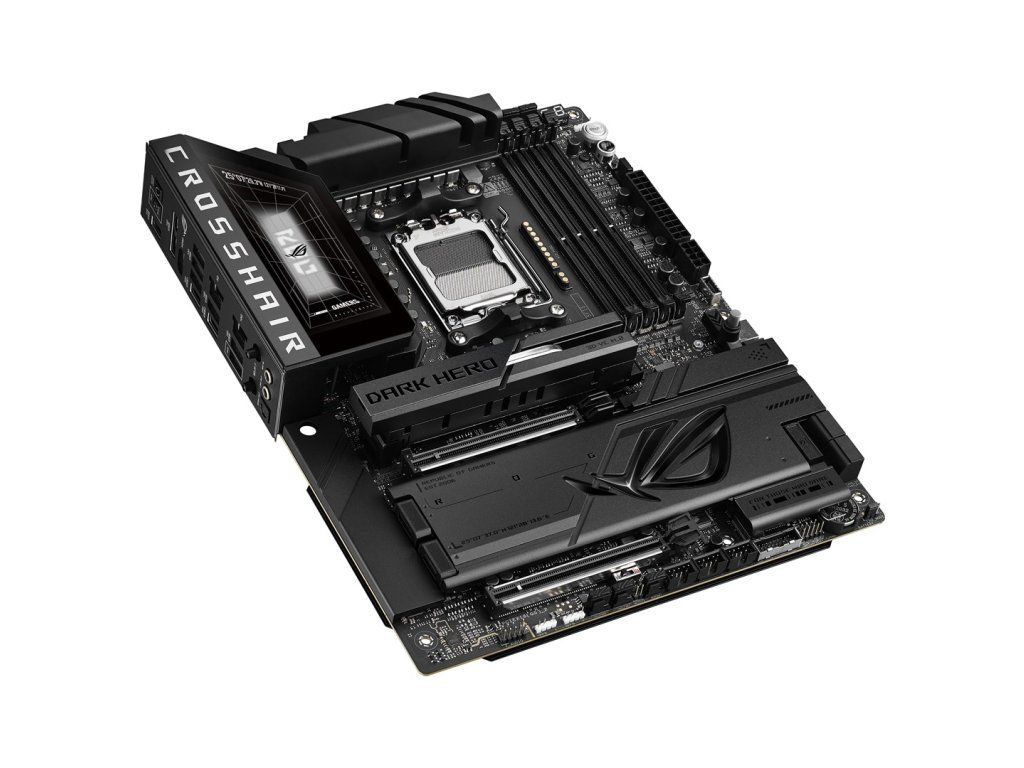

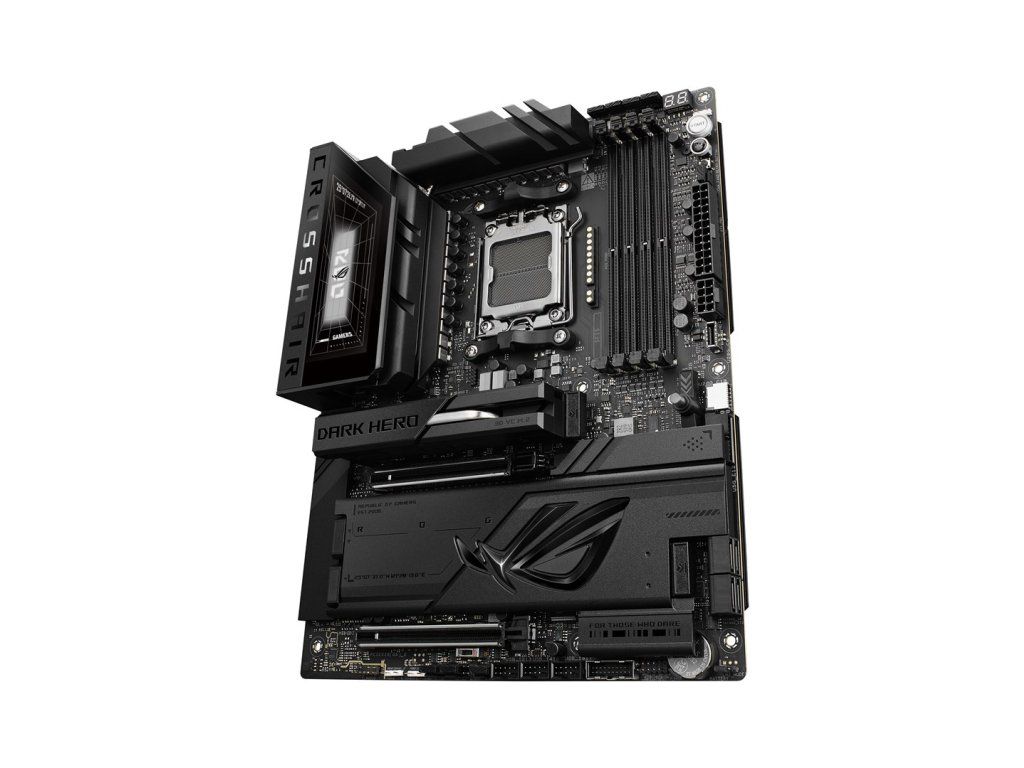

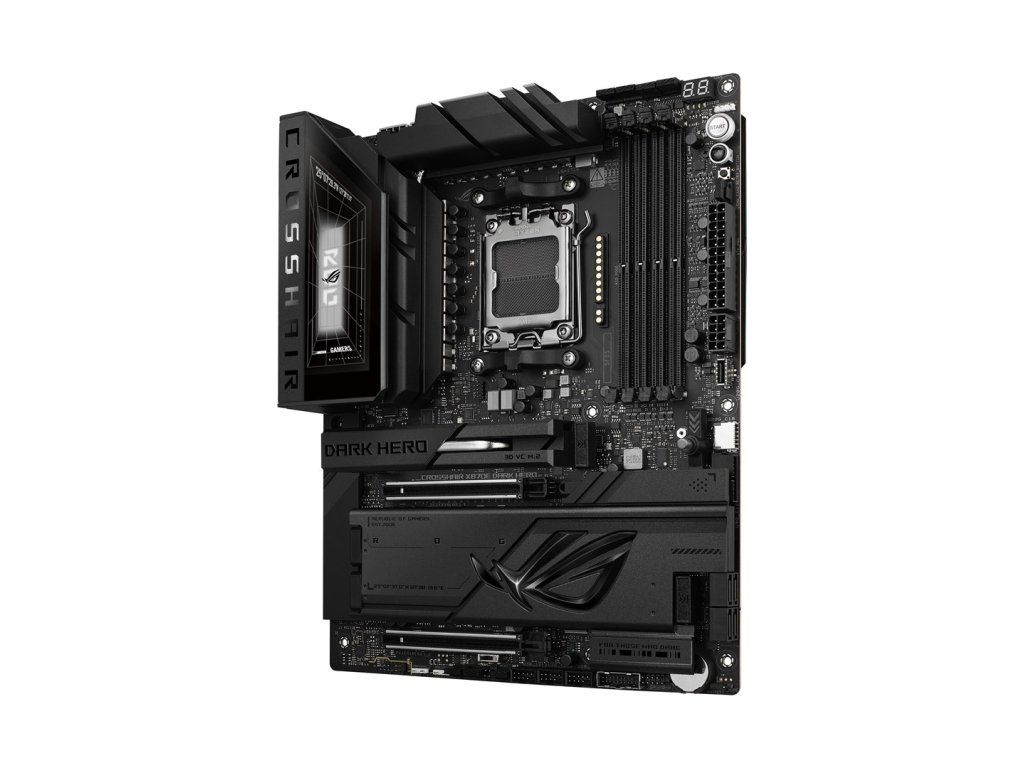

ASUS ROG CROSSHAIR X870E DARK HERO AMD X870E Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 4.2 kg |
| EAN: | 4711636398671 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Supported processor sockets: | Socket AM5 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Motherboard chipset: | AMD X870E |
| Audio chip: | Realtek ALC4082 |
| Product colour: | Black |
| Windows operating systems supported: | Windows 11 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Audio output channels: | 7.1 channels |
| Unbuffered memory: | Yes |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| ECC сompatibility: | ECC & Non-ECC |
| Width: | 305 mm |
| Depth: | 244 mm |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Bluetooth version: | 5.4 |
| Bluetooth: | Yes |
| Ethernet LAN: | Yes |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| WLAN controller model: | MediaTek MT7927 |
| Wi-Fi: | Yes |
| Number of temperature sensor headers: | 1 |
| USB 2.0 connectors: | 3 |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| 12V power connector: | Yes |
| Number of SATA III connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of chassis fan connectors: | 4 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2x2 connectors: | 2 |
| BIOS type: | UEFI AMI |
| Package depth: | 367 mm |
| Package weight: | 4.43 kg |
| Package width: | 308 mm |
| Package height: | 110 mm |
| Cables included: | SATA |
| Antenna included: | Yes |
| Screws included: | Yes |
| Number of HDDs supported: | 4 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 1, 5, 10, 0 |
| Number of storage drives supported: | 9 |
| Supported storage drive types: | HDD & SSD |
| S/PDIF out port: | Yes |
| Ethernet LAN (RJ-45) ports: | 2 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 3 |
| WiFi-AP antenna jack: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 6 |
| Microphone in: | Yes |
| USB4 Gen 3x2 ports quantity: | 2 |
| 5th M.2 highest PCI Express generation: | 4.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 4th M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 1st M.2 largest key size: | 22110 |
| Number of M.2 (M) slots: | 5 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 2 |
