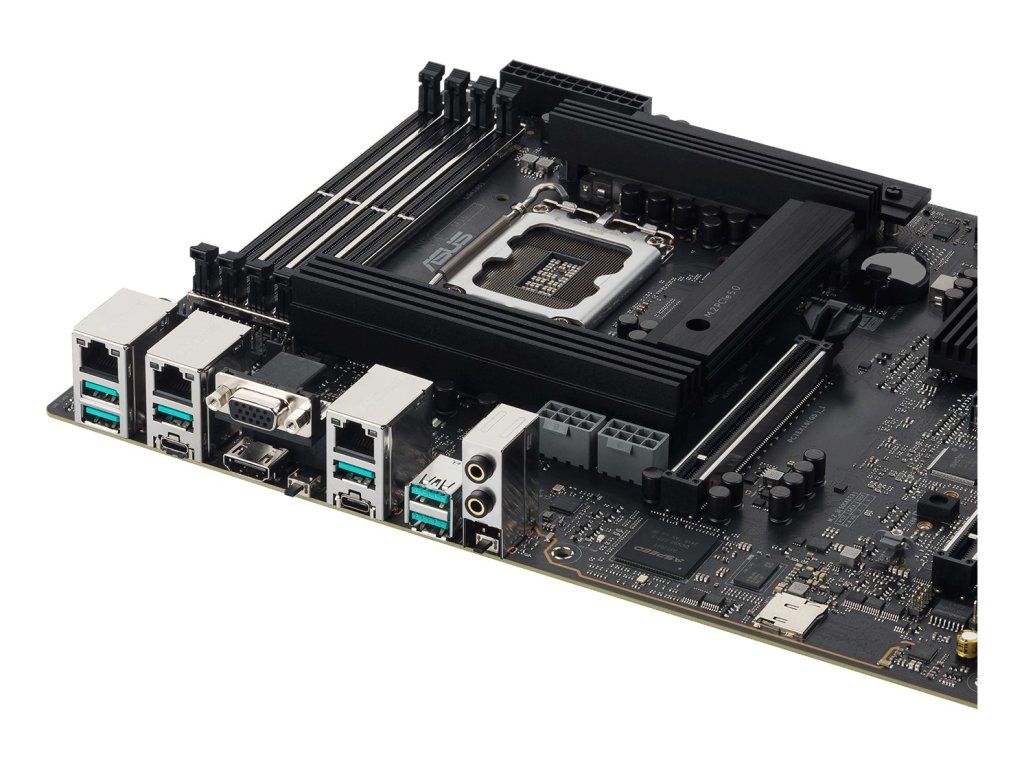

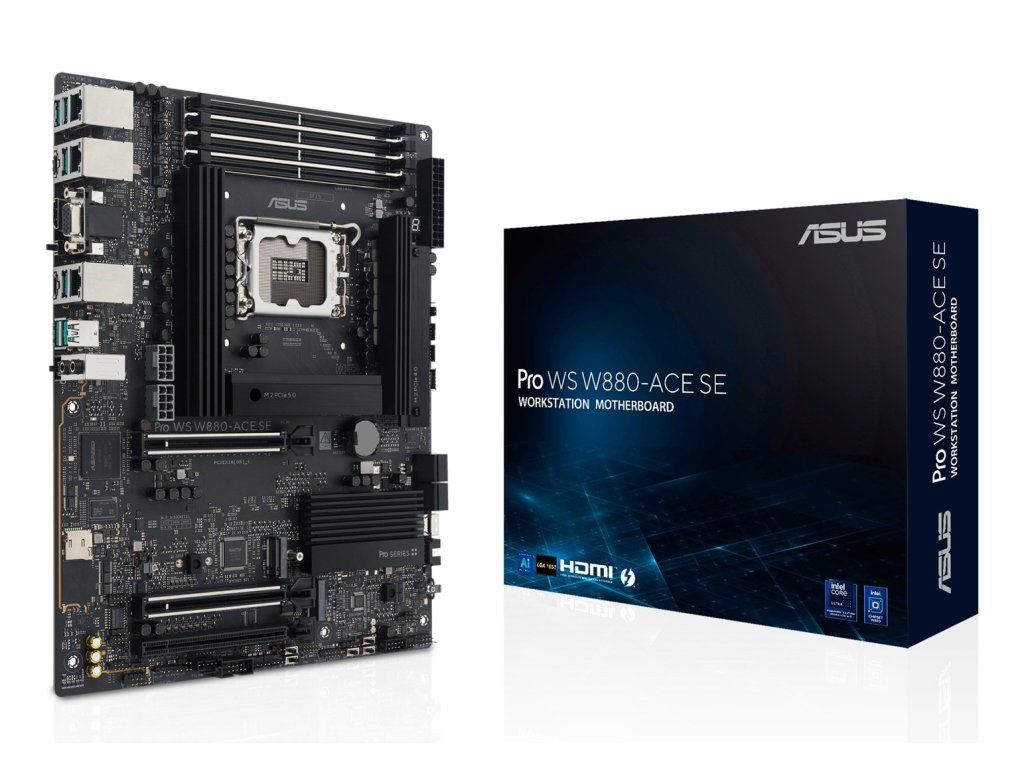

ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | INTEL server motherboards |
|---|---|
| Greutate: | 1.64 kg |
| EAN: | 4711387994221 |
| Supported processor sockets: | Intel LGA1851 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor socket: | LGA 1851 (Socket V1) |
| Maximum resolution: | 3840 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Motherboard chipset: | Intel W880 |
| Motherboard form factor: | ATX |
| Cooling type: | Passive |
| Audio chip: | Realtek ALC1220P |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Product colour: | Grey |
| Component for: | Workstation |
| Windows operating systems supported: | Windows 11, Windows 10 x64 |
| Power source type: | ATX |
| Maximum internal memory: | 256 GB |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| ECC сompatibility: | Non-ECC |
| Maximum internal memory per slot: | 64 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 9066 MHz |
| Width: | 305 mm |
| Depth: | 244 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Front panel connector: | Yes |
| Number of chassis fan connectors: | 5 |
| Front panel audio connector: | Yes |
| Thunderbolt headers: | 1 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of COM connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| USB 2.0 connectors: | 2 |
| Chassis intrusion connector: | Yes |
| Number of CPU fan connectors: | 1 |
| Number of water pump connectors: | 1 |
| Number of EPS power connectors (8-pin): | 2 |
| Number of temperature sensor headers: | 1 |
| 12V power connector: | Yes |
| Integrated SAS ports: | 1 |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Clear CMOS button: | Yes |
| Cables included: | SATA |
| RAID levels: | 10, 0, 1, 5 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Number of storage drives supported: | 8 |
| Number of HDDs supported: | 4 |
| DisplayPort version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 3 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 6 |
| Line-in: | Yes |
| Thunderbolt ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone outputs: | 1 |
| Number of M.2 (M) slots: | 4 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 2280 |
| 1st M.2 largest key size: | 2280 |
| 4th M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| PCI Express x16 (Gen 5.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
