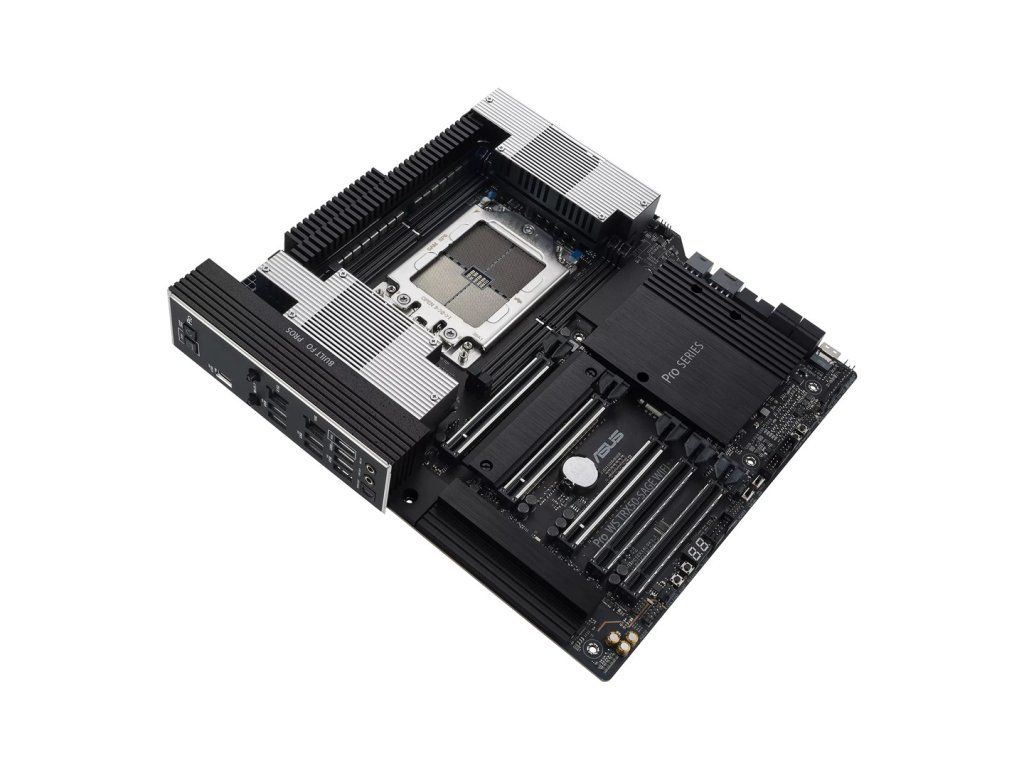

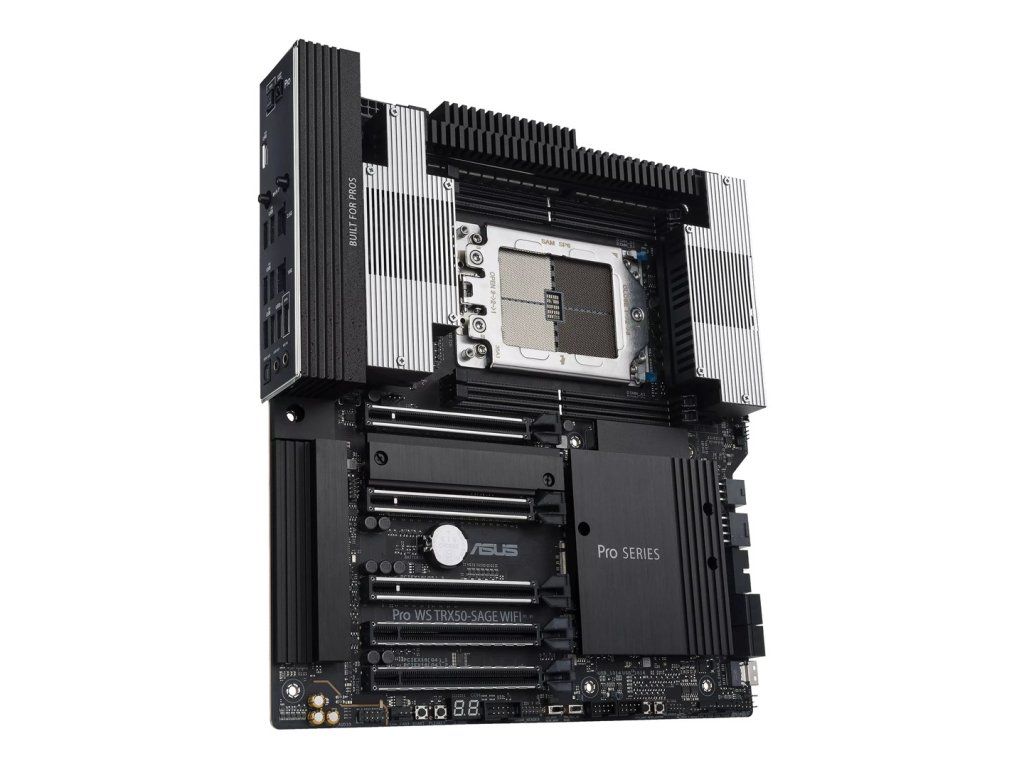

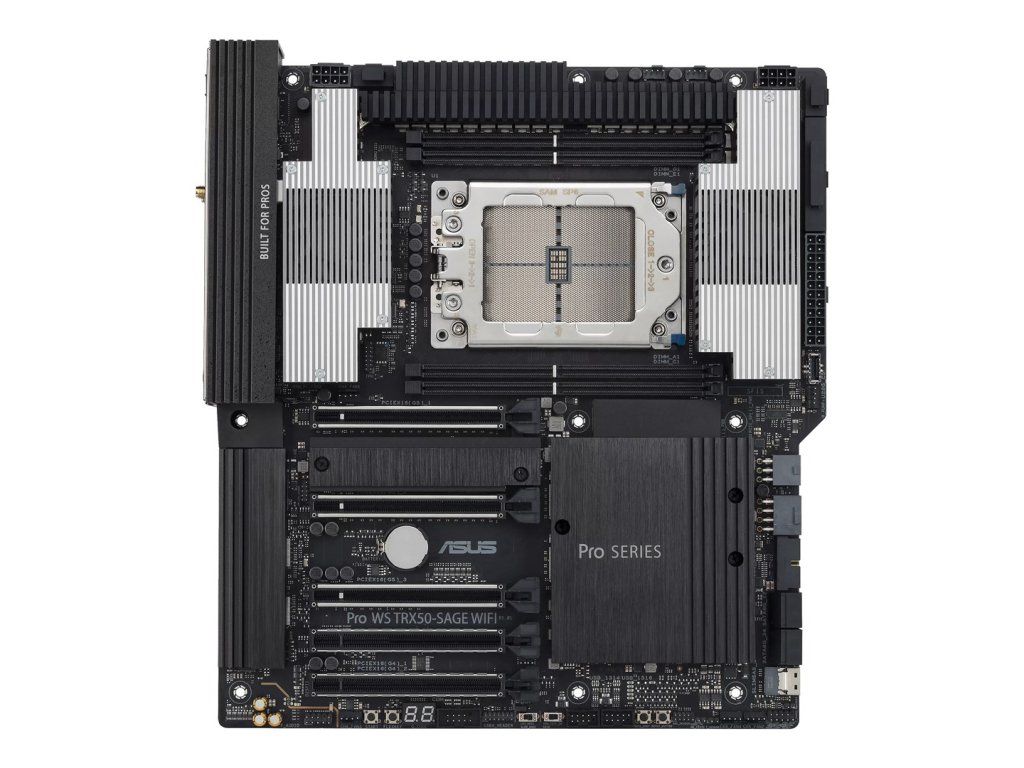

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB motherboard for workstations
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AMD server motherboards |
|---|---|
| Greutate: | 3.83 kg |
| EAN: | 4711387402726 |
| Processor manufacturer: | AMD |
| Compatible processor series: | AMD Ryzen™ Threadripper™ |
| Processor socket: | Socket sTR5 |
| Motherboard chipset: | AMD TRX50 |
| Component for: | Workstation |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | SSI CEB |
| Product colour: | Black |
| Audio chip: | Realtek ALC1220P |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| ECC: | Yes |
| Memory channels: | Quad-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR5 ECC RDIMM |
| Number of memory slots: | 4 |
| Width: | 305 mm |
| Depth: | 280 mm |
| LAN controller: | Intel I226-LM |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Ethernet interface type: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| Chassis intrusion connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of COM connectors: | 1 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| Integrated SAS ports: | 1 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| Clear CMOS button: | Yes |
| Package weight: | 4.85 kg |
| Package height: | 100 mm |
| Package depth: | 380 mm |
| Package width: | 320 mm |
| Cables included: | PCIe, SATA |
| RAID levels: | 1, 5, 0, 10 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of storage drives supported: | 7 |
| Number of HDDs supported: | 4 |
| USB 2.0 ports quantity: | 2 |
| USB connector type: | USB Type-C, USB Type-A |
| Ethernet LAN (RJ-45) ports: | 2 |
| S/PDIF out port: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 6 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Microphone in: | Yes |
| WiFi-AP antenna jack: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 5.x) slots: | 3 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| Weight: | 2.53 kg |
| Warnings: | Do not open or disassemble the motherboard., Use only in a dry and well-ventilated area., The motherboard may contain electronic components hazardous to health - avoid direct contact. |
