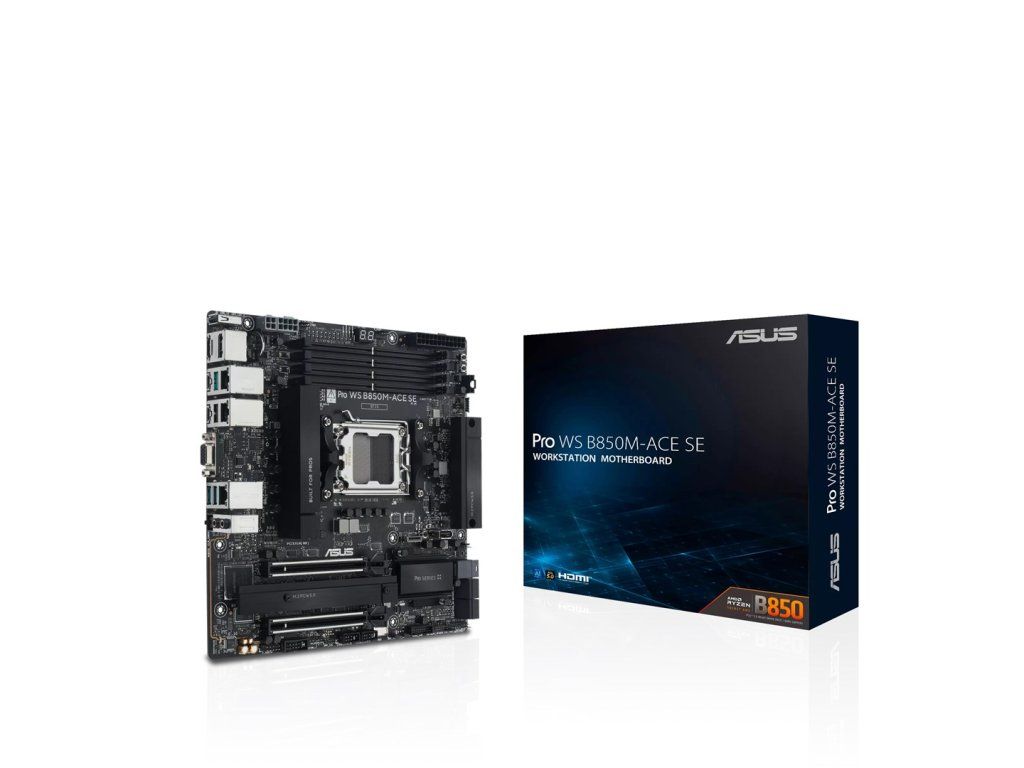

Asus PRO WS B850M-ACE SE AM5 AMD motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | AMD server motherboards |
|---|---|
| Greutate: | 1.388 kg |
| EAN: | 4711636258753 |
| Compatible processor series: | AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD EPYC 4005 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Supported processor sockets: | Socket AM5 |
| Component for: | PC |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Motherboard form factor: | micro ATX |
| Cooling type: | Passive |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD B850 |
| Power source type: | ATX |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| ECC сompatibility: | ECC & Non-ECC |
| Memory slots type: | DIMM |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 256 GB |
| Number of memory slots: | 4 |
| Depth: | 244 mm |
| Width: | 244 mm |
| Ethernet interface type: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN: | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Number of COM connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Audio connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 3 |
| TPM connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| USB4 ports quantity: | 1 |
| Number of chassis fan connectors: | 3 |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 512 Mbit |
| Cables included: | SATA |
| User guide: | Yes |
| Number of storage drives supported: | 6 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| RAID levels: | 10, 0, 1, 5 |
| Number of HDDs supported: | 4 |
| Number of audio jack connectors: | 2 |
| Ethernet LAN (RJ-45) ports: | 3 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| DisplayPorts quantity: | 1 |
| USB 2.0 Type-A ports quantity: | 2 |
| Clear CMOS button: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| DisplayPort version: | 1.4 |
| VGA (D-Sub) ports quantity: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| Number of M.2 (M) slots: | 2 |
