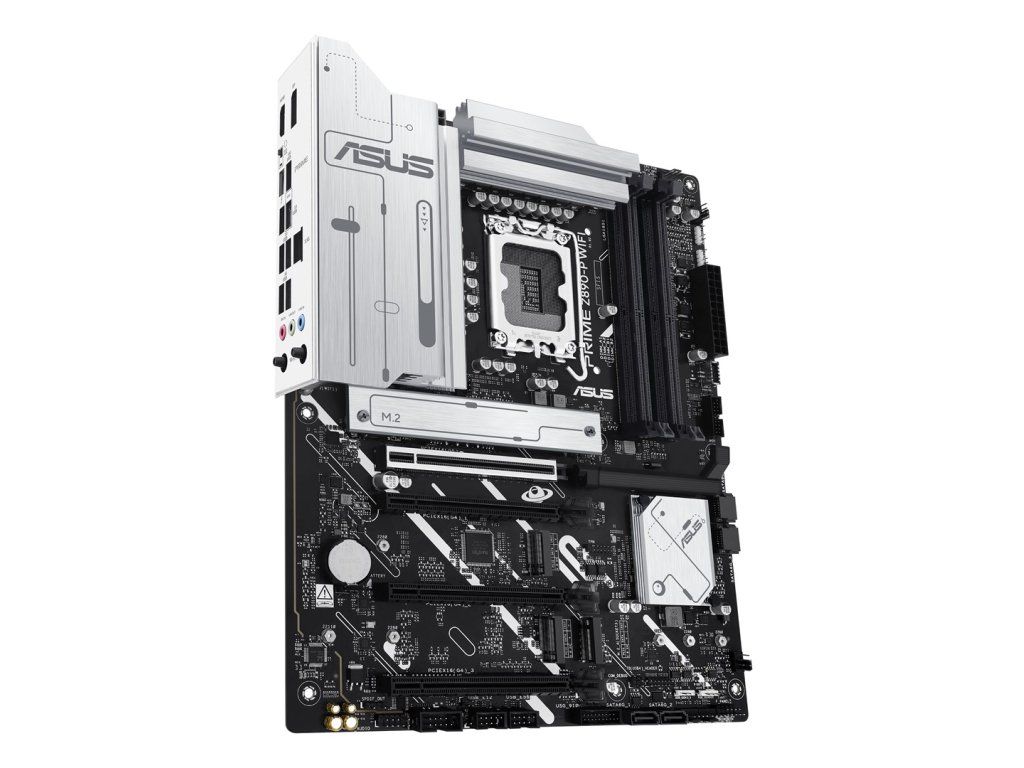

ASUS PRIME Z890-P WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1851 |
|---|---|
| Greutate: | 1.85 kg |
| EAN: | 4711387754818 |
| Processor socket: | LGA 1851 (Socket V1) |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Cooling type: | Passive |
| Power source type: | ATX |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel Z890 |
| Motherboard form factor: | ATX |
| Product colour: | Black |
| Motherboard chipset family: | Intel |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| ECC сompatibility: | Non-ECC |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 7600 MHz |
| Number of memory slots: | 4 |
| Maximum internal memory: | 192 GB |
| Width: | 305 mm |
| Depth: | 244 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.4 |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Thunderbolt headers: | 1 |
| Number of COM connectors: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| S/PDIF out connector: | Yes |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| Number of chassis fan connectors: | 4 |
| TPM connector: | Yes |
| CPU fan connector: | Yes |
| 12V power connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 1.89 kg |
| Package width: | 353 mm |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Cables included: | SATA |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| RAID levels: | 0, 5, 1, 10 |
| Number of storage drives supported: | 8 |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| DisplayPort version: | 1.4 |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| HDMI version: | 2.1 |
| Line-in: | Yes |
| DisplayPorts quantity: | 1 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 3 |
| Back-to-BIOS button: | Yes |
| Quick installation guide: | Yes |
| Warnings: | When disposing of the product, follow local regulations for the recycling of electronics., Do not open or modify the motherboard to prevent damage., In case of installation problems, contact a qualified service technician. |
