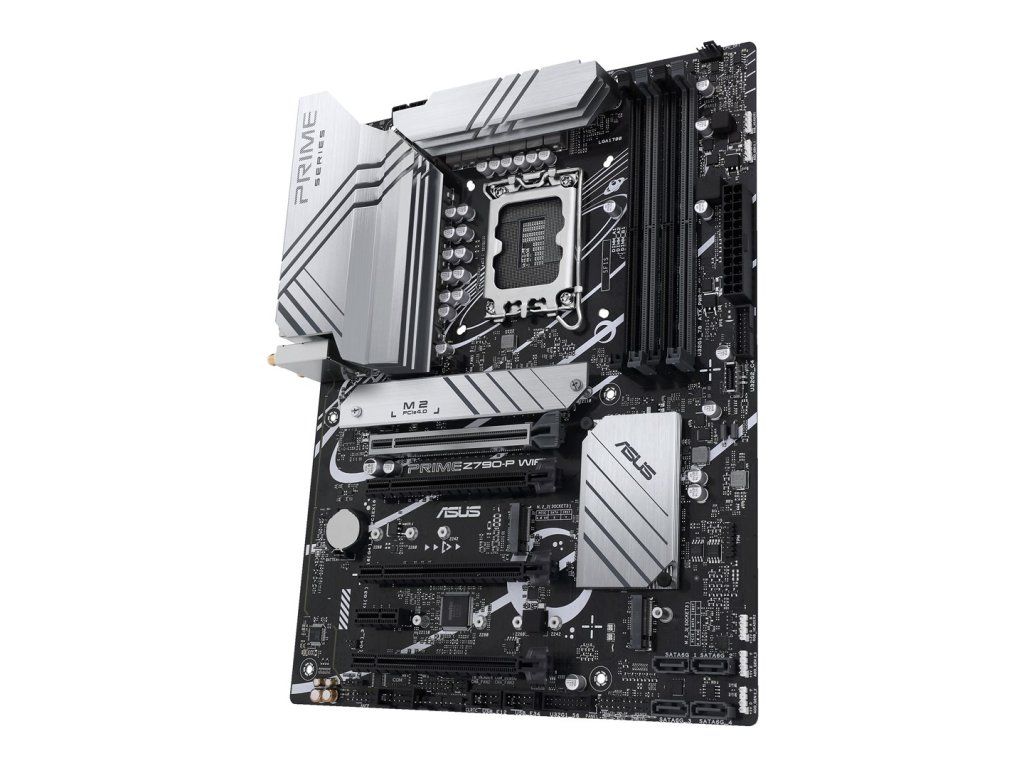

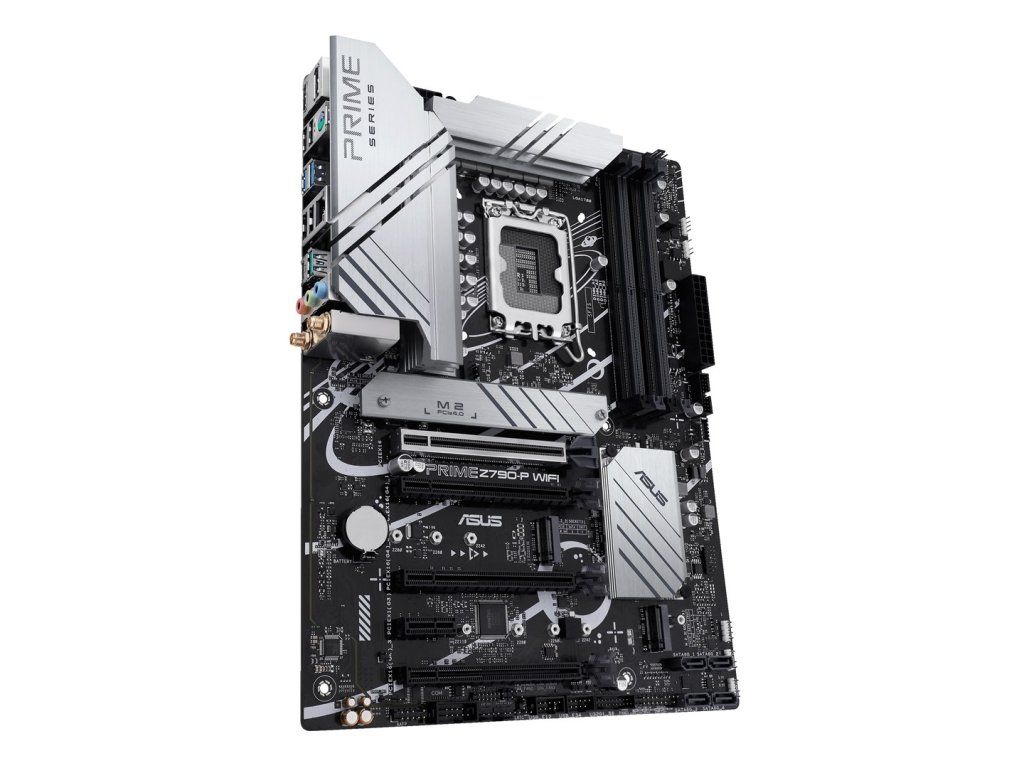

ASUS PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.3 kg |
| EAN: | 4711081937227 |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Motherboard chipset: | Intel Z790 |
| Audio output channels: | 7.1 channels |
| Product colour: | Black, Aluminium |
| Motherboard form factor: | ATX |
| Power source type: | ATX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11, Windows 10 x64 |
| Maximum internal memory: | 128 GB |
| Supported memory clock speeds: | 6000, 6200, 7000, 5000, 5600, 7200, 6600, 4800 MHz, 6400, 5800, 5400, 6800, 5200 |
| ECC сompatibility: | Non-ECC |
| Unbuffered memory: | Yes |
| Supported memory clock speed (max): | 7200 MHz |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Depth: | 234 mm |
| Width: | 305 mm |
| Height: | 40 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth version: | 5.2 |
| S/PDIF out connector: | Yes |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 3 |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 2 |
| CPU fan connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of COM connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Front panel audio connector: | Yes |
| Thunderbolt headers: | 1 |
| EPS power connector (8-pin): | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 68 mm |
| Package width: | 338 mm |
| Package depth: | 273 mm |
| Package weight: | 1.68 kg |
| Drivers included: | Yes |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| RAID levels: | 10, 1, 5, 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| USB 2.0 ports quantity: | 4 |
| DisplayPorts quantity: | 1 |
| WiFi-AP antenna jack: | 1 |
| PS/2 ports quantity: | 1 |
| Line-in: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Headphone outputs: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 3 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Weight: | 1.03 kg |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage. |
