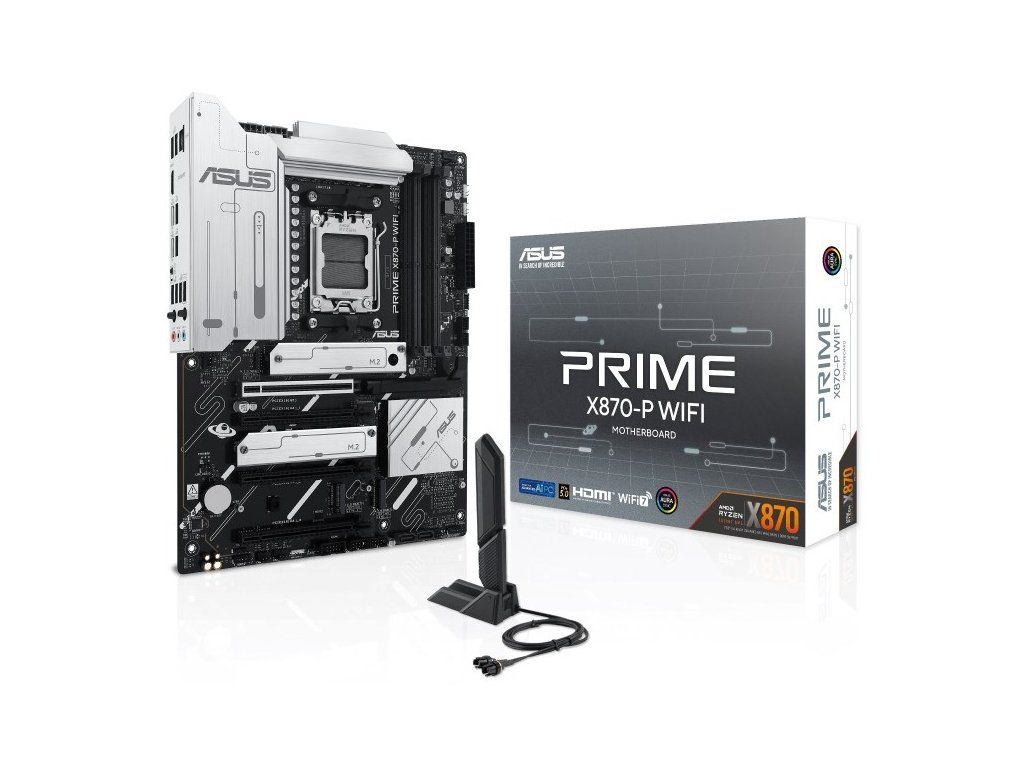

ASUS Prime X870-P WIFI AMD X870 Motherboard AM5 Socket ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 2.05 kg |
| EAN: | 4711387718148 |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 8000 Series, AMD Ryzen 7000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| On-board graphics card: | No |
| Parallel processing technology support: | Not supported |
| Motherboard form factor: | ATX |
| Cooling type: | Passive |
| Product colour: | Black |
| Motherboard chipset: | AMD X870 |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 11, Windows 10 |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Supported memory clock speed (max): | 8000 MHz |
| Number of memory slots: | 4 |
| Maximum internal memory: | 192 GB |
| ECC сompatibility: | ECC & Non-ECC |
| Memory channels: | Dual-channel |
| Unbuffered memory: | Yes |
| Depth: | 244 mm |
| Height: | 48 mm |
| Width: | 305 mm |
| Wi-Fi standards: | Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be) |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.4 |
| Wi-Fi: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Bluetooth: | Yes |
| 12V power connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| RGB LED pin header: | Yes |
| Front panel audio connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| Number of COM connectors: | 1 |
| Number of SATA III connectors: | 2 |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 4 |
| USB 2.0 connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 68 mm |
| Package depth: | 273 mm |
| Package weight: | 1.56 kg |
| Package width: | 353 mm |
| Cables included: | SATA |
| Number of storage drives supported: | 6 |
| Number of HDDs supported: | 2 |
| RAID levels: | 1, 0, 10, 5 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Microphone in: | Yes |
| Line-in: | Yes |
| USB4 Gen 2x2 ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| DisplayPort version: | 1.4a |
| PCI Express x16 (Gen 4.x) slots: | 3 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| Back-to-BIOS button: | Yes |
| Weight: | 1.56 kg |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
