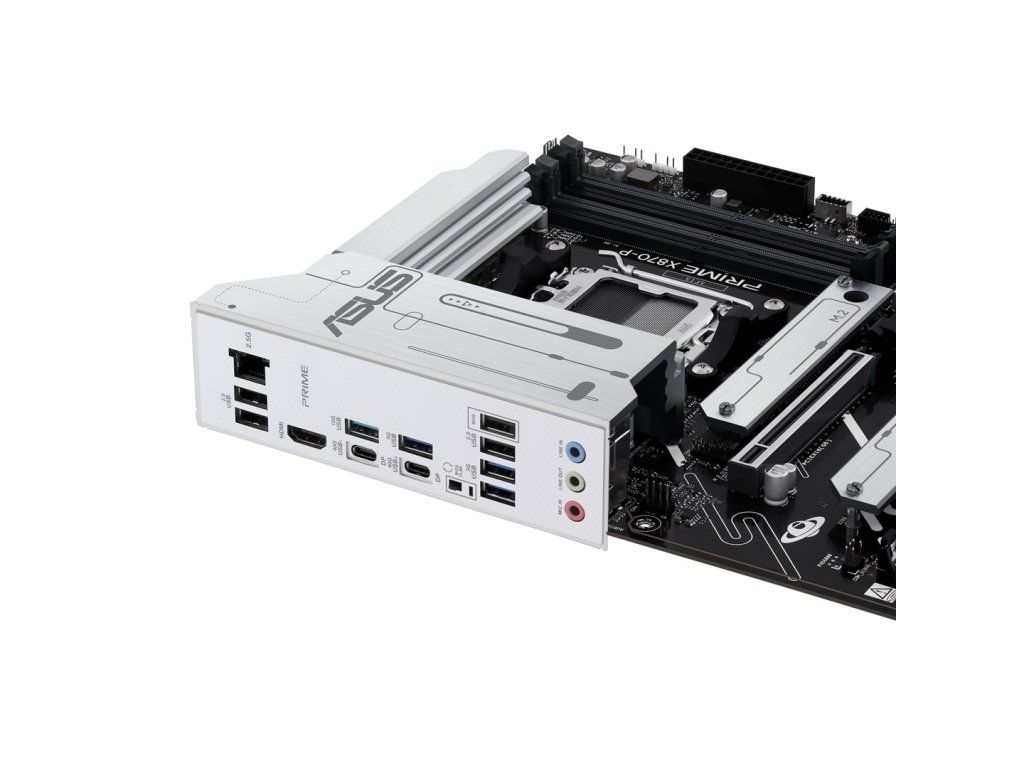

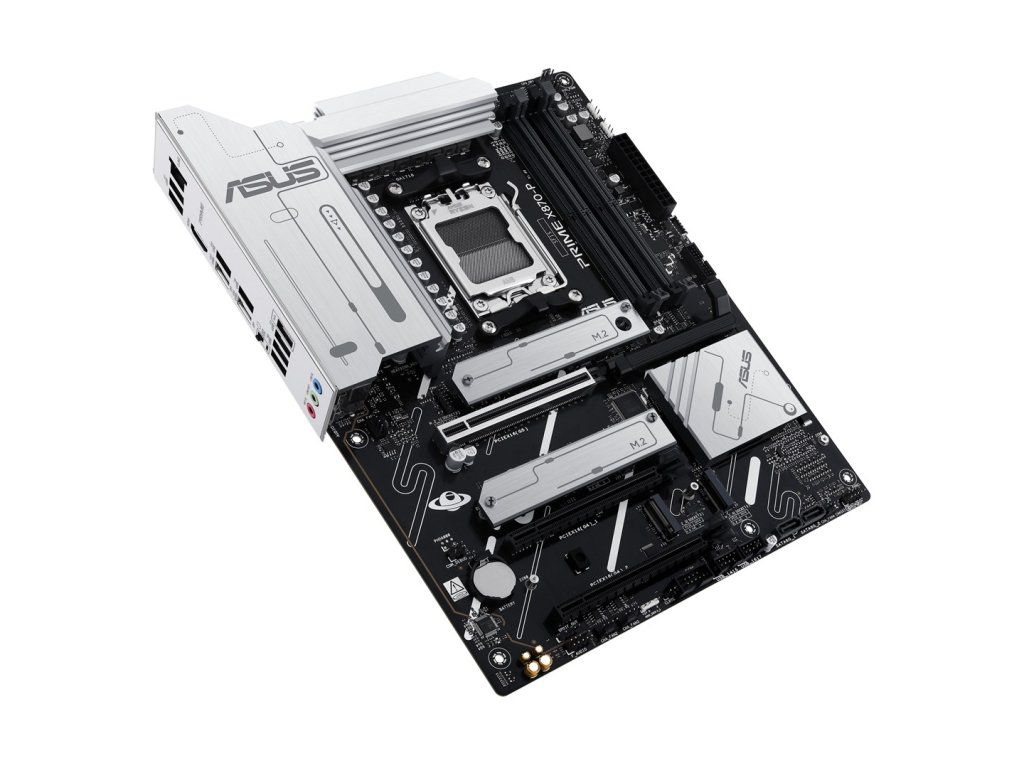

ASUS PRIME X870-P AMD X870 Socket AM5 ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.94 kg |
| EAN: | 4711387723036 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Supported processor sockets: | Socket AM5 |
| Processor socket: | Socket AM5 |
| Parallel processing technology support: | Not supported |
| On-board graphics card: | No |
| Product colour: | Black |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD X870 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | ATX |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Cooling type: | Passive |
| Maximum internal memory: | 192 GB |
| Unbuffered memory: | Yes |
| Number of memory slots: | 4 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speed (max): | 8000 MHz |
| Supported memory types: | DDR5-SDRAM |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 48 mm |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | No |
| Top Wi-Fi standard: | Not available |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 2 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| CPU fan connector: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Number of chassis fan connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| TPM connector: | Yes |
| Number of COM connectors: | 1 |
| BIOS type: | UEFI AMI |
| Package weight: | 1.5 kg |
| Package depth: | 273 mm |
| Package height: | 68 mm |
| Package width: | 353 mm |
| Cables included: | SATA |
| RAID support: | Yes |
| Supported storage drive types: | HDD & SSD |
| RAID levels: | 0, 10, 5, 1 |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 2 |
| Number of storage drives supported: | 6 |
| DisplayPort version: | 1.4a |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| HDMI ports quantity: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB4 Gen 2x2 ports quantity: | 2 |
| Number of M.2 (M) slots: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Weight: | 1.44 kg |
| Back-to-BIOS button: | Yes |
| Warnings: | Avoid contact with liquids to prevent electronic damage., Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty. |
