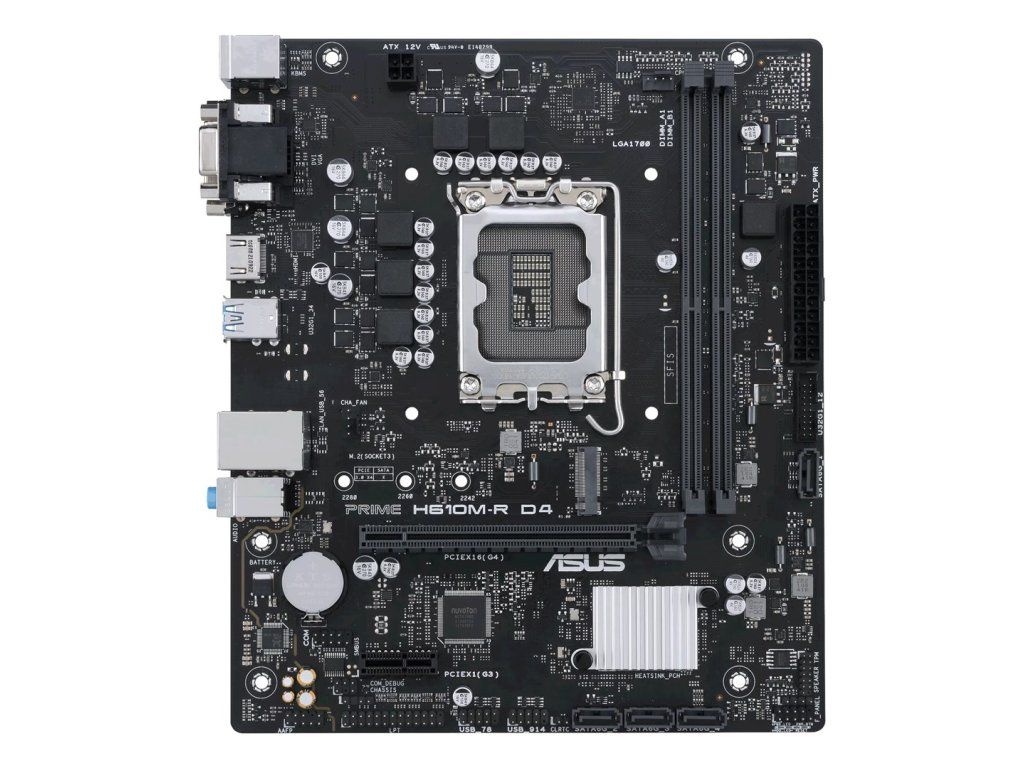

ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.78 kg |
| EAN: | 4711081758372 |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel Pentium G, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3 |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Maximum resolution: | 3840 x 2160 pixels |
| Parallel processing technology support: | Not supported |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Motherboard form factor: | micro ATX |
| Supported memory clock speeds: | 3000, 2133, 2400, 2800, 3200 MHz, 2666, 2933 |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Yes |
| ECC сompatibility: | Non-ECC |
| Number of memory slots: | 2 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| Depth: | 193 mm |
| Width: | 226 mm |
| Height: | 51 mm |
| Wake-on-LAN ready: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Top Wi-Fi standard: | Not available |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Number of SATA III connectors: | 4 |
| Chassis intrusion connector: | Yes |
| Audio connector: | Yes |
| Number of COM connectors: | 1 |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 1 |
| Front panel audio connector: | Yes |
| USB 2.0 connectors: | 2 |
| Clear CMOS jumper: | Yes |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Number of storage drives supported: | 5 |
| Supported storage drive interfaces: | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| USB connector type: | USB Type-A |
| USB 2.0 ports quantity: | 2 |
| HDMI version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Headphone outputs: | 3 |
| Microphone in: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| PS/2 ports quantity: | 2 |
| DVI-D ports quantity: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| Weight: | 842 g |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Avoid direct contact with electronics to prevent electrostatic damage. |
