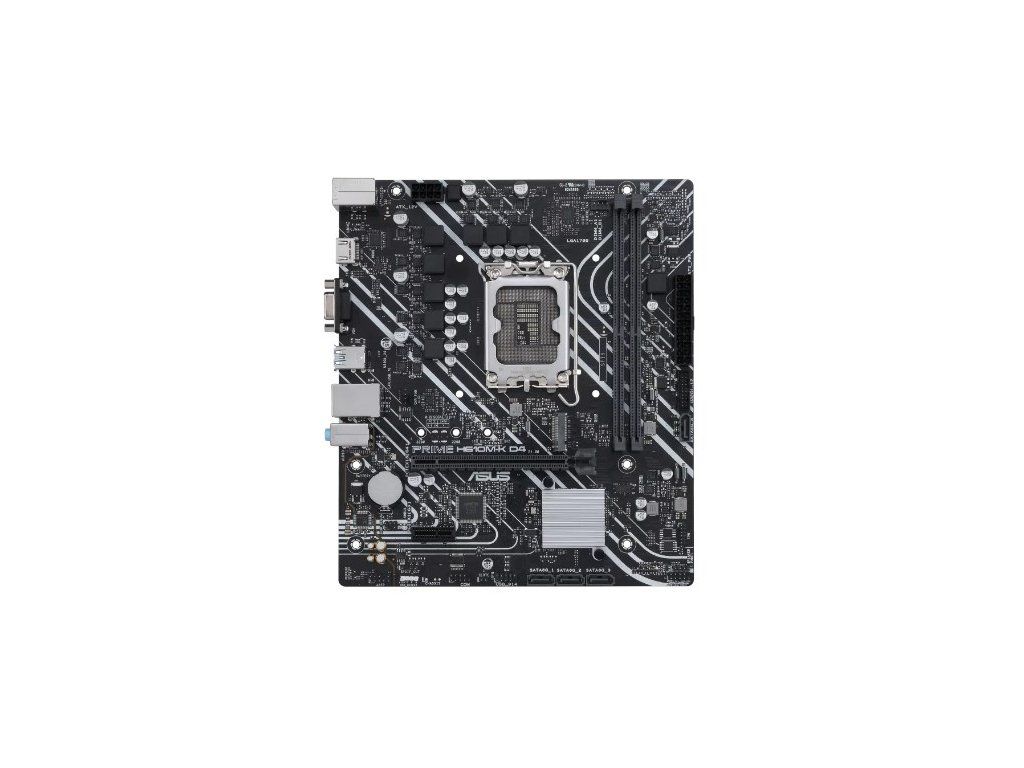

ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.96 kg |
| EAN: | 4711081565499 |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Pentium®, Intel® Core™ i3 |
| Maximum number of SMP processors: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Number of displays supported: | 2 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Audio output channels: | 7.1 channels |
| Harmonized System (HS) code: | 84733020 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | Intel H610 |
| Motherboard chipset family: | Intel |
| Memory slots type: | DIMM |
| Supported memory clock speeds: | 3000, 2400, 2800, 3200, 2666, 2933, 2133 MHz |
| Number of memory slots: | 2 |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 64 GB |
| Supported memory types: | DDR4-SDRAM |
| Unbuffered memory: | Yes |
| Height: | 51 mm |
| Width: | 234 mm |
| Depth: | 203 mm |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| Ethernet interface type: | Gigabit Ethernet |
| CPU fan connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Front panel audio connector: | Yes |
| 12V power connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of COM connectors: | 1 |
| Number of SATA III connectors: | 4 |
| RGB LED pin header: | Yes |
| ATX Power connector (24-pin): | Yes |
| S/PDIF out connector: | Yes |
| Number of chassis fan connectors: | 1 |
| TPM connector: | Yes |
| USB 2.0 connectors: | 1 |
| BIOS type: | UEFI AMI |
| Cables included: | SATA |
| Drivers included: | Yes |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA |
| VGA (D-Sub) ports quantity: | 1 |
| Headphone outputs: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Microphone in: | Yes |
| HDMI version: | 2.1 |
| USB 2.0 ports quantity: | 4 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 1 |
| Weight: | 842 g |
