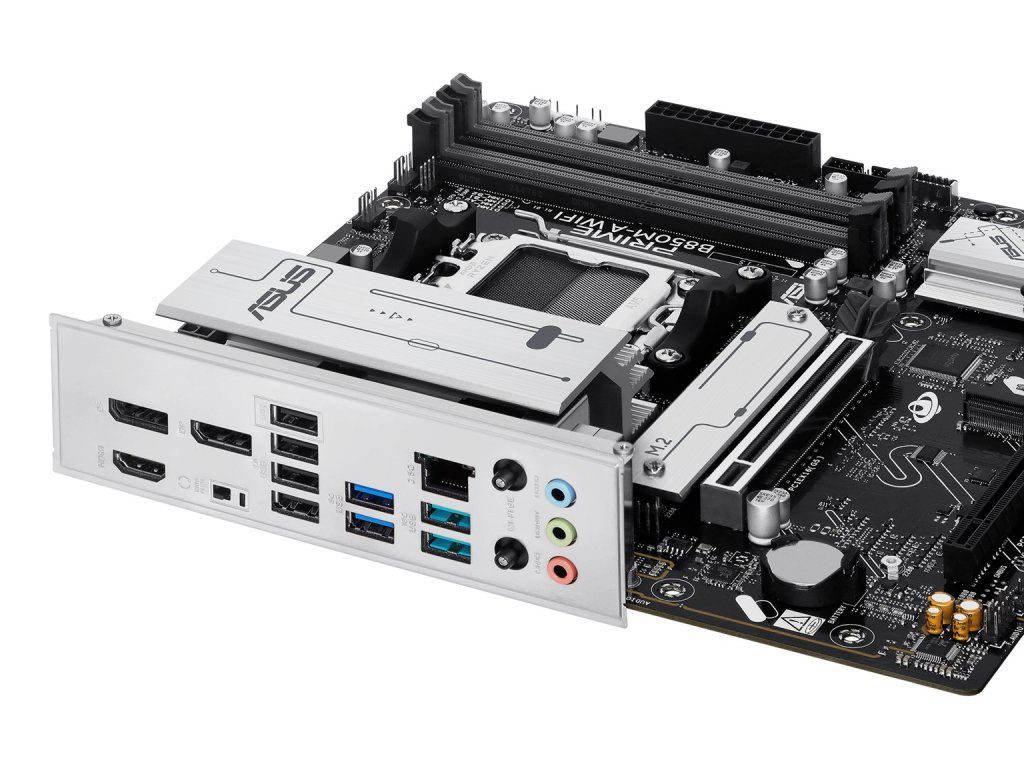

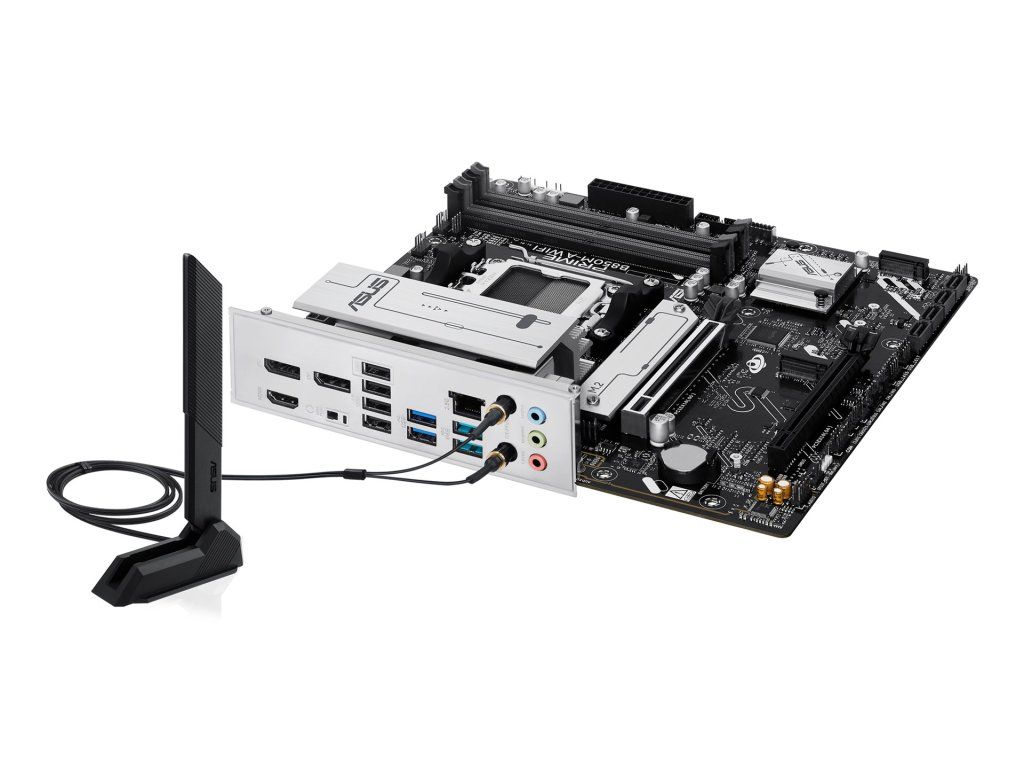

ASUS PRIME B850M-A WIFI AMD B850 Socket AM5 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-AM5 |
|---|---|
| Greutate: | 1.42 kg |
| EAN: | 4711636051125 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Parallel processing technology support: | Not supported |
| Motherboard chipset: | AMD B850 |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Product colour: | Multicolour |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Unbuffered memory: | Yes |
| Memory channels: | Dual-channel |
| Maximum internal memory: | 256 GB |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| ECC сompatibility: | ECC & Non-ECC |
| Number of memory slots: | 4 |
| Supported memory clock speed (max): | 8000 MHz |
| Width: | 244 mm |
| Height: | 50 mm |
| Depth: | 244 mm |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Bluetooth version: | 5.3 |
| Chassis intrusion connector: | Yes |
| S/PDIF out connector: | Yes |
| Number of COM connectors: | 1 |
| Number of SATA III connectors: | 4 |
| CPU fan connector: | Yes |
| USB 2.0 connectors: | 2 |
| TPM connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of chassis fan connectors: | 3 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of CPU fan connectors: | 1 |
| 12V power connector: | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 67.5 mm |
| Package depth: | 275 mm |
| Package weight: | 1.52 kg |
| Package width: | 275 mm |
| Antenna included: | Yes |
| RAID levels: | 0, 10, 1, 5 |
| Number of storage drives supported: | 7 |
| RAID support: | Yes |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| HDMI ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| DisplayPorts quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB 2.0 ports quantity: | 4 |
| Line-in: | Yes |
| WiFi-AP antenna jack: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Weight: | 930 g |
