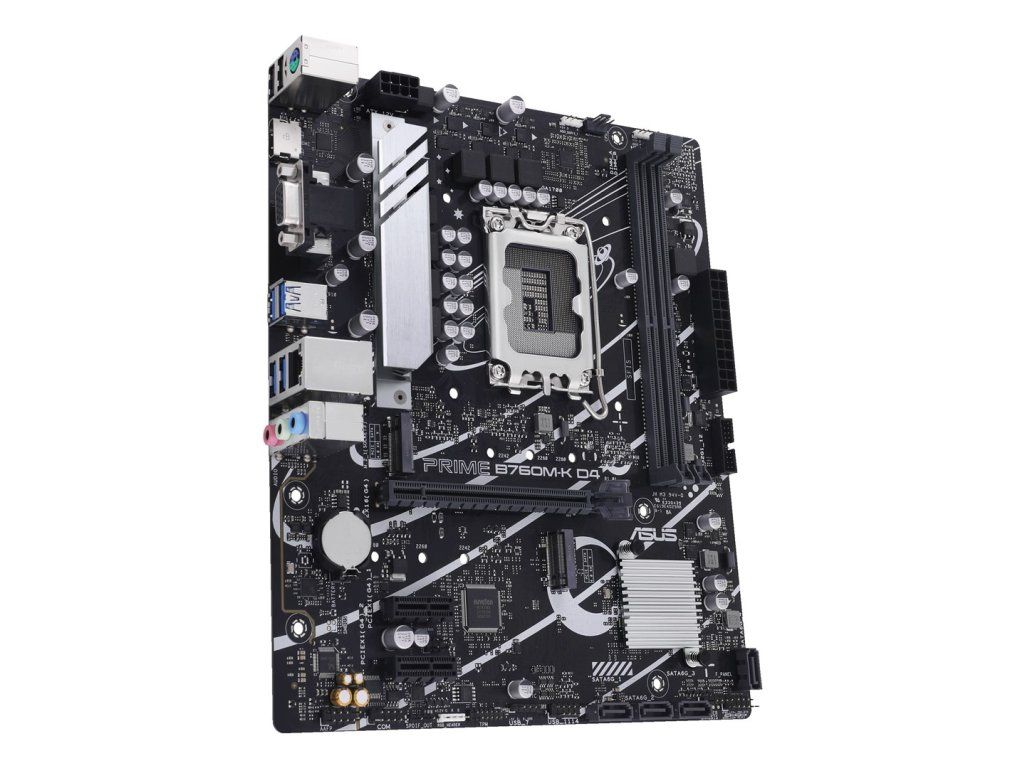

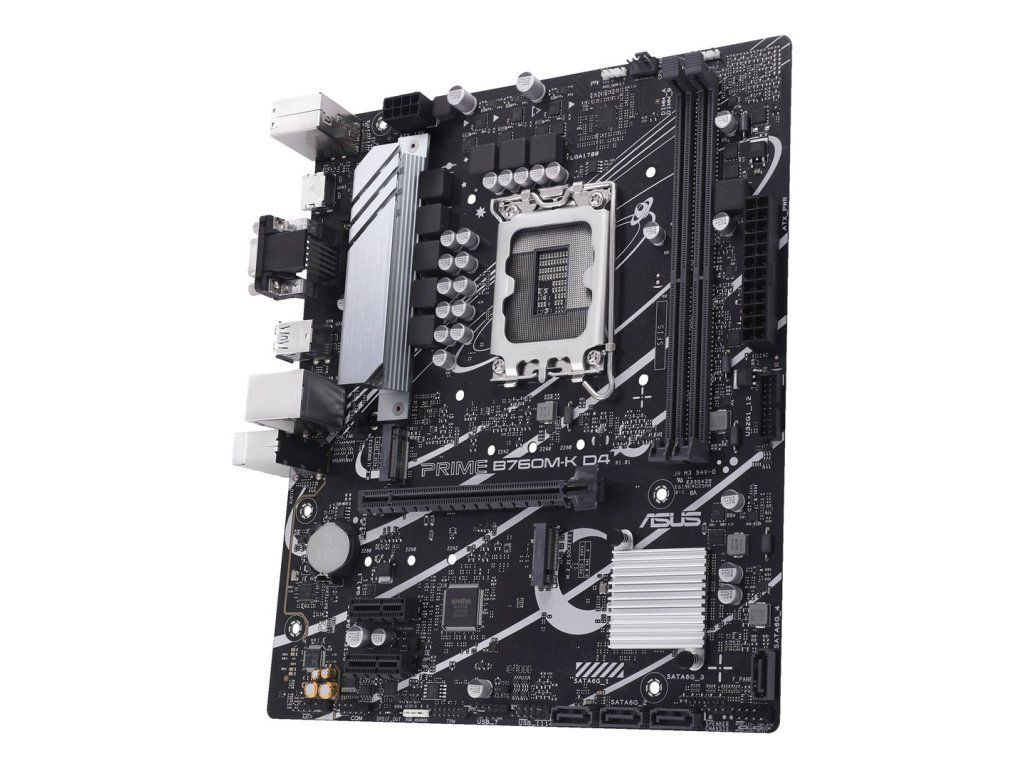

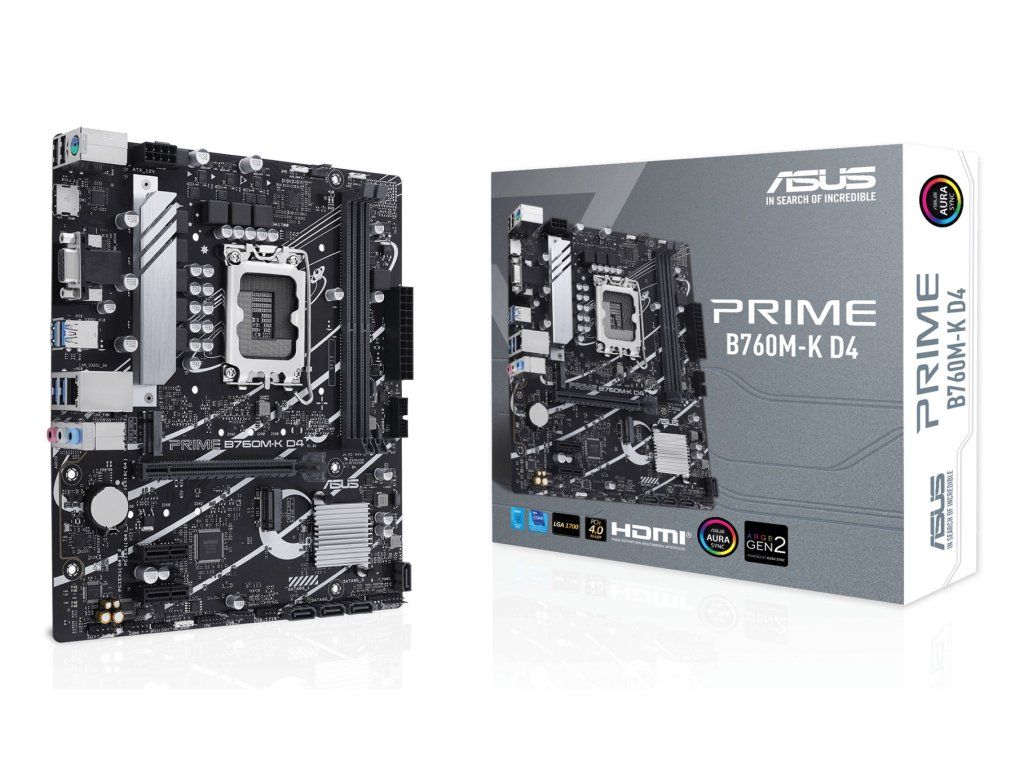

ASUS Prime B760M-K D4 Intel B760 LGA 1700 micro ATX motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 0.926 kg |
| EAN: | 4711387006917 |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Supported processor sockets: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | Intel |
| Audio output channels: | 7.1 channels |
| Motherboard chipset: | Intel B760 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Supported memory clock speeds: | 3733, 4400 MHz, 5000 MHz, 3200 MHz, 2666, 4266, 3400, 4000, 4800, 3333, 4600, 3000, 5333 MHz, 3466, 2400 MHz, 2800, 5066 MHz, 2133, 2933, 3600 |
| Unbuffered memory: | Yes |
| Maximum internal memory: | 64 GB |
| Supported memory types: | DDR4-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 2 |
| Supported memory clock speed (max): | 5333 MHz |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Height: | 36 mm |
| Depth: | 211 mm |
| Width: | 244 mm |
| Wake-on-LAN ready: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| S/PDIF out connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 2.0 connectors: | 2 |
| Number of SATA III connectors: | 4 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of COM connectors: | 1 |
| EPS power connector (8-pin): | Yes |
| Number of chassis fan connectors: | 1 |
| TPM connector: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 926.3 g |
| Package width: | 270 mm |
| Package height: | 263 mm |
| Package depth: | 51.5 mm |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10, 5 |
| Number of storage drives supported: | 6 |
| VGA (D-Sub) ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 4 |
| HDMI ports quantity: | 1 |
| USB connector type: | USB Type-A |
| PS/2 ports quantity: | 1 |
| Microphone in: | Yes |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x1 (Gen 4.x) slots: | 2 |
| Weight: | 528 g |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
