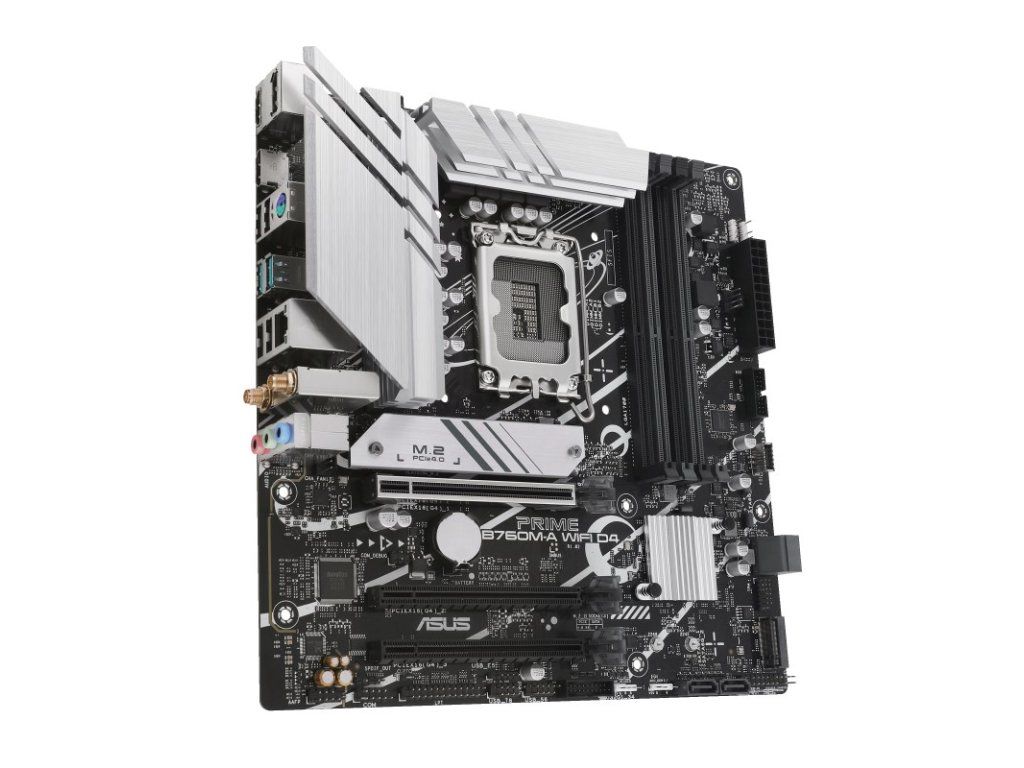

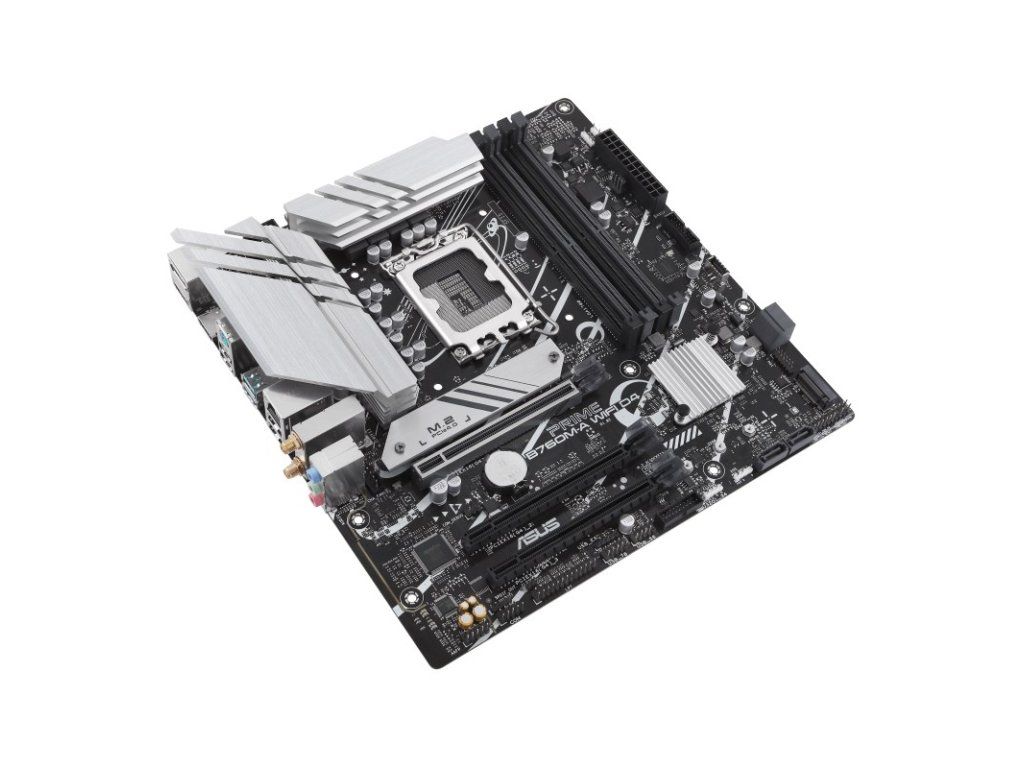

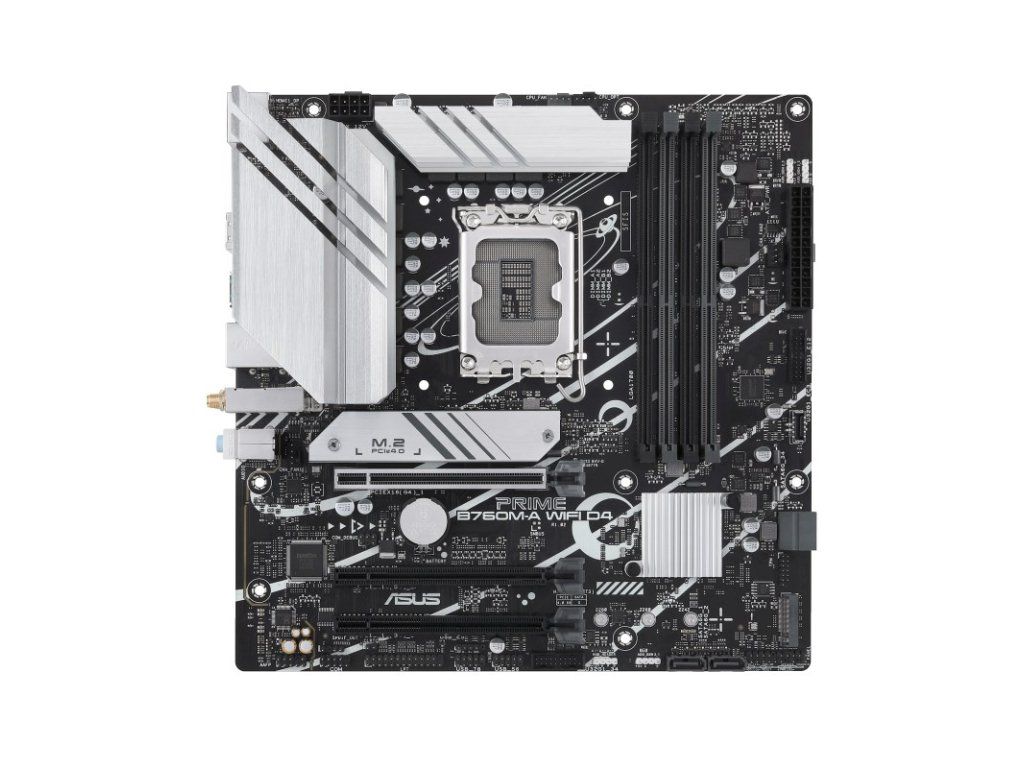

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.46 kg |
| EAN: | 4711081982661 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets: | LGA 1700 |
| Processor socket: | LGA 1700 |
| Parallel processing technology support: | Not supported |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Audio output channels: | 7.1 channels |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| Motherboard chipset: | Intel B760 |
| Supported memory clock speed (max): | 5333 MHz |
| Memory channels: | Dual-channel |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Supported memory types: | DDR4-SDRAM |
| Supported memory clock speeds: | 3333, 3466, 3000, 5333 MHz, 2933, 3600, 2400, 2800, 4600, 3400, 3200, 2666, 4266 MHz, 3733, 4400 MHz, 5000, 4000, 4800 MHz, 5066, 2133 MHz |
| Maximum internal memory: | 128 GB |
| ECC сompatibility: | Non-ECC |
| Unbuffered memory: | Yes |
| Width: | 244 mm |
| Depth: | 244 mm |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.2 |
| Wi-Fi: | Yes |
| Wi-Fi standards: | 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Bluetooth: | Yes |
| ATX Power connector (24-pin): | Yes |
| S/PDIF out connector: | Yes |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| USB 2.0 connectors: | 3 |
| Front panel audio connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Number of COM connectors: | 1 |
| Number of chassis fan connectors: | 2 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |
| CPU fan connector: | Yes |
| TPM connector: | Yes |
| Clear CMOS button: | Yes |
| BIOS type: | UEFI AMI |
| Package weight: | 1.4 kg |
| Package height: | 67.5 mm |
| Package depth: | 275 mm |
| Package width: | 275 mm |
| Cables included: | SATA |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID levels: | 5, 0, 1, 10 |
| Supported storage drive types: | HDD & SSD |
| RAID support: | Yes |
| Number of storage drives supported: | 6 |
| USB 2.0 ports quantity: | 4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Line-in: | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| HDMI ports quantity: | 2 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| HDMI version: | 2.1 |
| Headphone outputs: | 3 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 3 |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
