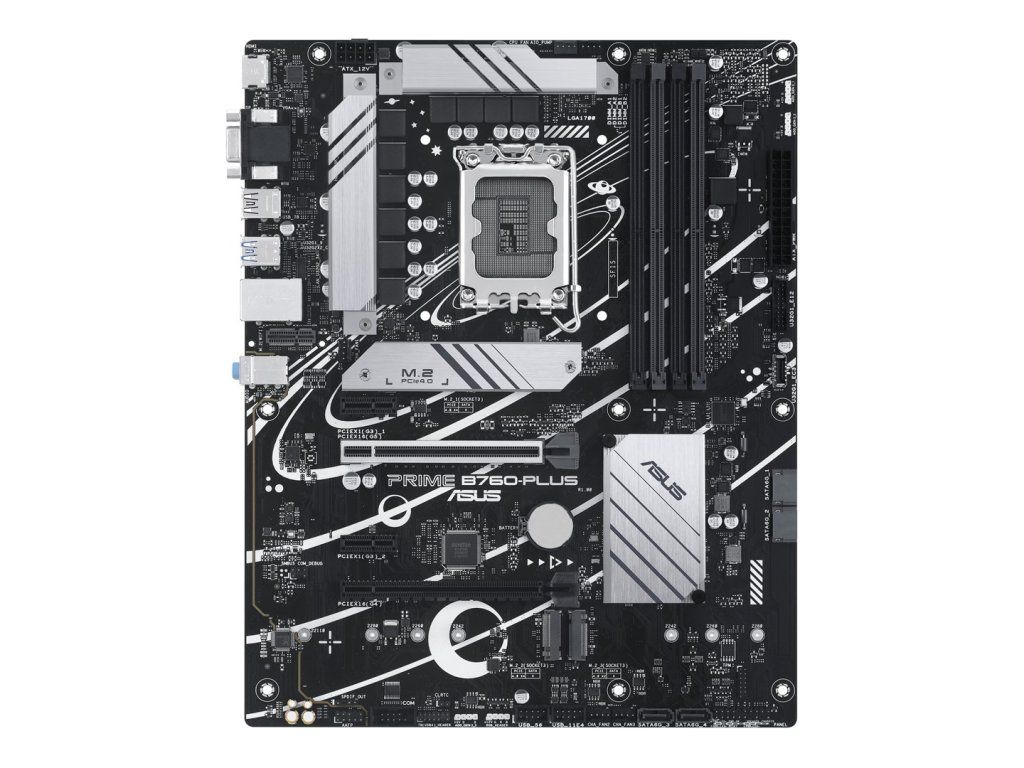

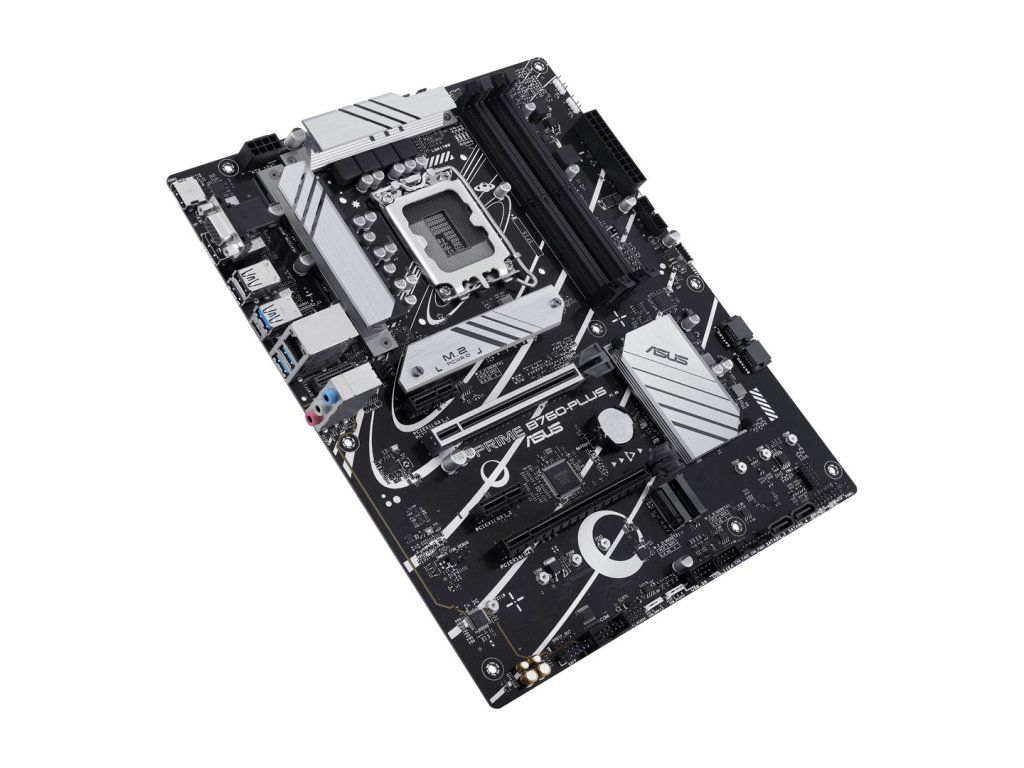

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX motherboard
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.195 kg |
| EAN: | 4711387102985 |
| Supported processor sockets: | LGA 1700 |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i3, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Maximum number of SMP processors: | 1 |
| Parallel processing technology support: | Not supported |
| Motherboard form factor: | ATX |
| Motherboard chipset: | Intel B760 |
| Audio output channels: | 7.1 channels |
| Power source type: | ATX |
| Motherboard chipset family: | Intel |
| Cooling type: | Passive |
| Windows operating systems supported: | Windows 10 x64, Windows 11 |
| ECC сompatibility: | Non-ECC |
| Unbuffered memory: | Yes |
| Supported memory clock speeds: | 5200, 5800, 5400, 7000 MHz, 6200, 6800, 6000, 6400 MHz, 5000, 6600, 4800, 5600, 7200 MHz |
| Maximum internal memory: | 192 GB |
| Memory channels: | Dual-channel |
| Supported memory types: | DDR5-SDRAM |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Width: | 305 mm |
| Height: | 36 mm |
| Depth: | 244 mm |
| Wi-Fi: | No |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Number of SATA III connectors: | 4 |
| Thunderbolt headers: | 1 |
| USB 2.0 connectors: | 2 |
| S/PDIF out connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Peripheral (Molex) power connectors (4-pin): | 1 |
| Number of chassis fan connectors: | 3 |
| Front panel connector: | Yes |
| TPM connector: | Yes |
| EPS power connector (8-pin): | Yes |
| Front panel audio connector: | Yes |
| Number of COM connectors: | 1 |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| BIOS type: | UEFI AMI |
| Package height: | 53 mm |
| Package depth: | 266 mm |
| Package weight: | 1.2 kg |
| Package width: | 328 mm |
| Cables included: | SATA |
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| RAID levels: | 0, 5, 10, 1 |
| Number of storage drives supported: | 7 |
| Number of HDDs supported: | 4 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| USB 2.0 ports quantity: | 2 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| HDMI version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Line-in: | Yes |
| Headphone outputs: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| Number of M.2 (M) slots: | 3 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Weight: | 760 g |
| Warnings: | Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal., Before starting any maintenance or installation, disconnect the product from the power supply. |
