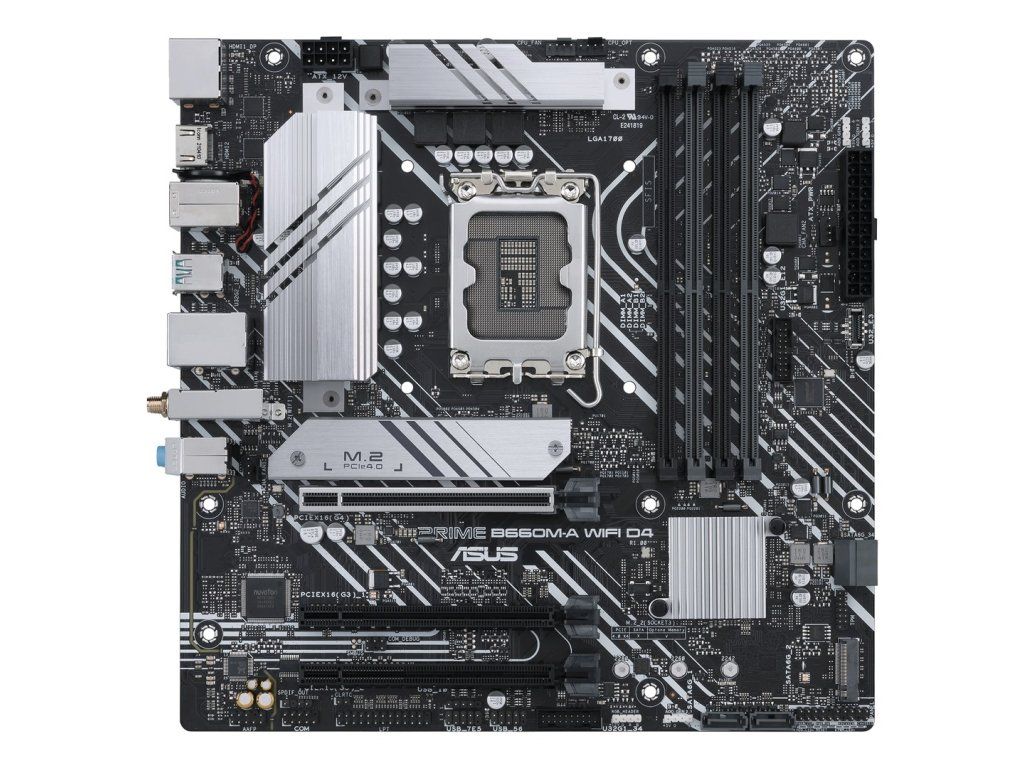

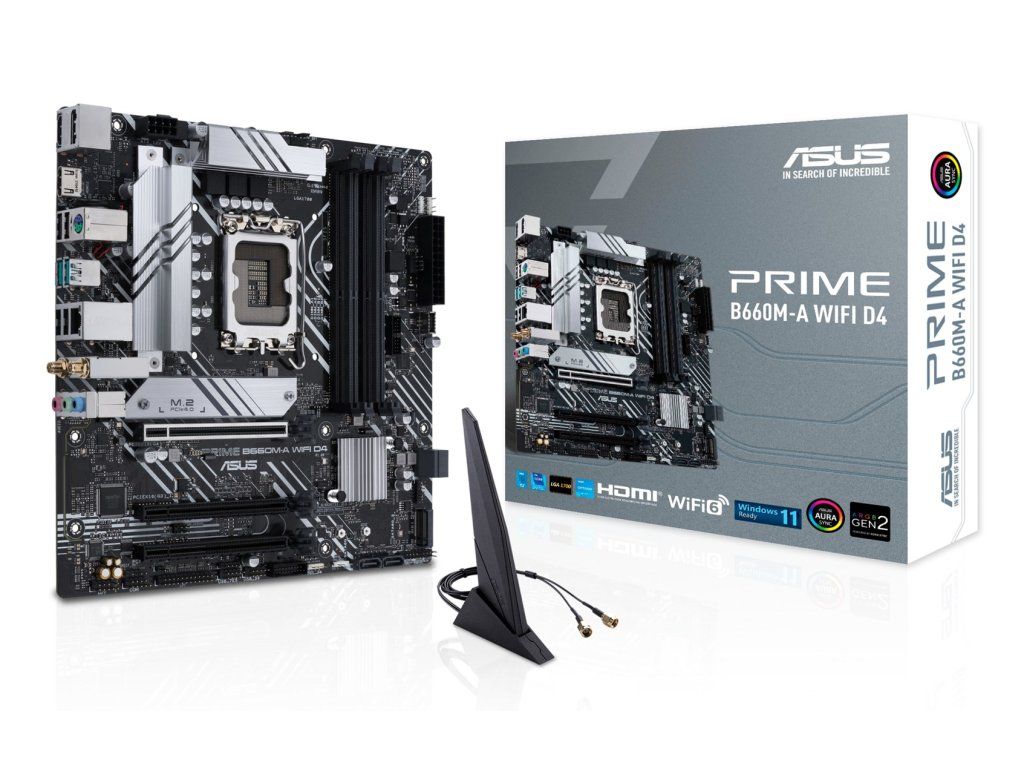

ASUS PRIME B660M-A WIFI D4 Intel B660 LGA 1700 micro ATX
Descriere detaliată a produsului
Descrierea produsului nu este disponibilă
Parametri suplimentari
| Categorie: | Motherboards Socket-1700 |
|---|---|
| Greutate: | 1.33 kg |
| EAN: | 4711081518105 |
| Processor manufacturer: | Intel |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Processor socket: | LGA 1700 |
| Maximum number of SMP processors: | 1 |
| Number of displays supported: | 3 |
| Audio output channels: | 7.1 channels |
| Motherboard form factor: | micro ATX |
| Motherboard chipset: | Intel B660 |
| Audio chip: | Realtek ALC897 |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Supported memory clock speeds: | 3000, 5333 MHz, 2400, 2800, 3733, 4400 MHz, 5000, 3333, 4600, 2933, 3600, 3200, 2666, 4000, 4800 MHz, 3400, 3466, 2133 MHz |
| Maximum internal memory: | 128 GB |
| Unbuffered memory: | Yes |
| Memory slots type: | DIMM |
| Number of memory slots: | 4 |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Width: | 244 mm |
| Depth: | 244 mm |
| Height: | 60 mm |
| Bluetooth: | Yes |
| Wi-Fi standards: | 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n) |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Bluetooth version: | 5.2 |
| Ethernet interface type: | Gigabit Ethernet |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Front panel audio connector: | Yes |
| S/PDIF out connector: | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 3 |
| ATX Power connector (24-pin): | Yes |
| Number of SATA III connectors: | 4 |
| USB 2.0 connectors: | 3 |
| Number of COM connectors: | 1 |
| RGB LED pin header: | Yes |
| 12V power connector: | Yes |
| Number of chassis fan connectors: | 2 |
| EPS power connector (8-pin): | Yes |
| CPU fan connector: | Yes |
| BIOS type: | UEFI AMI |
| Drivers included: | Yes |
| Cables included: | SATA |
| RAID levels: | 0, 5, 1, 10 |
| Supported storage drive interfaces: | M.2, SATA |
| Supported storage drive types: | HDD & SSD |
| DisplayPort version: | 1.4 |
| Ethernet LAN (RJ-45) ports: | 1 |
| USB 2.0 ports quantity: | 4 |
| DisplayPorts quantity: | 1 |
| Microphone in: | Yes |
| PS/2 ports quantity: | 1 |
| Headphone outputs: | 1 |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Number of M.2 (M) slots: | 2 |
| PCI Express x16 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Weight: | 819 g |
| Harmonized System (HS) code: | 84733020 |
| Warnings: | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
